DNS The F5 Way: A Paradigm Shift

This is the second in a series of DNS articles that I'm writing.  The first is: Let's Talk DNS on DevCentral.


Internet users rely heavily on DNS, and when DNS breaks, applications break. It's extremely important to implement an architecture that provides for DNS availability at all times. It's important because the number of Internet users continues to grow. In fact, a recent study conducted by the International Telecommunications Union claims that mobile devices will outnumber the people living on this planet at some point this year (2014). I'm certainly contributing to those stats as I have a smartphone and a tablet!

In addition, the sophistication and complexity of websites are increasing. Many sites today require hundreds of DNS requests just to load a single page. So, when you combine the number of Internet users with the complexity of modern sites, you can imagine that the number of DNS requests traversing your network is extremely large. Verisign's average daily DNS query load during the fourth quarter of 2012 was 77 billion with a peak of 123 billion. Wow...that's a lot of DNS requests...every day! The point is this...Internet use is growing, and the need for reliable DNS is more important than ever.


par·a·digm noun \ˈper-ə-ˌdīm\: a group of ideas about how something should be done, made, or thought about


Conventional DNS design goes something like this... Front end (secondary) DNS servers are load balanced behind a firewall, and these servers answer all the DNS queries from the outside world. The master (primary) DNS server is located in the datacenter and is hidden from the outside world behind an internal firewall. This architecture was adequate for a smaller Internet, but in today's complex network world, this design has significant limitations.

Typical DNS servers can only handle up to 200,000 DNS queries per second per server. Using the conventional design, the only way to handle more requests is to add more servers. Let's say your organization is preparing for a major event (holiday shopping, for example) and you want to make sure all DNS requests are handled. You might be forced to purchase more DNS servers in order to handle the added load. These servers are expensive and take critical manpower to operate and maintain. You can start to see the scalability and cost issues that add up with this design.

From a security perspective, there is often weak DDoS protection with a conventional design. Typically, DDoS protection relies on the network firewall, and this firewall can be a huge traffic bottleneck.

Check out the following diagram that shows a representation of a conventional DNS deployment.



It's time for a DNS architecture paradigm shift. Your organization requires it, and today's Internet demands it.


F5 Introduces A New Way...

The F5 Intelligent DNS Scale Reference Architecture is leaner, faster, and more secure than any conventional DNS architecture. Instead of adding more DNS servers to handle increased DNS request load, you can simply install the BIG-IP Global Traffic Manager (GTM) in your network’s DMZ and allow it to handle all external requests.

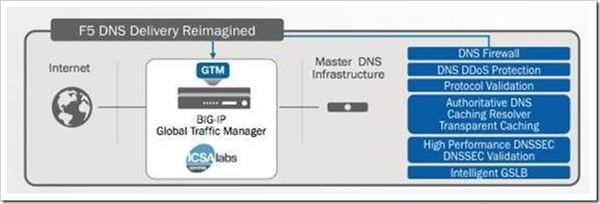

The following diagram shows the simplicity and effectiveness of the F5 design. Notice that the infrastructure footprint of this design is significantly smaller. This smaller footprint reduces costs associated with additional servers, manpower, HVAC, facility space, etc.



I mentioned the external request benefit of the BIG-IP GTM...here's how it works. The BIG-IP GTM uses F5's specifically designed DNS Express zone transfer feature and cluster multiprocessing (CMP) for exponential performance of query responses. DNS Express manages authoritative DNS queries by transferring zones to its own RAM, so it significantly improves query performance and response time. With DNS Express zone transfer and the high performance processing realized with CMP, the BIG-IP GTM can scale up to more than 10 million DNS query responses per second which means that even large surges of DNS requests (including malicious ones) will not likely disrupt your DNS infrastructure or affect the availability of your critical applications.

The BIG-IP GTM is much more than an authoritative DNS server, though. Here are some of the key features and capabilities included in the BIG-IP GTM:

  • ICSA certified network firewall -- you don't have to deploy DMZ firewalls any more...it IS your firewall!
  • Monitors the health of app servers and intelligently routes traffic to the nearest data center using IP Geolocation
  • Protects from DNS DDoS attacks using the integrated firewall services, scaling capabilities, and IP address intelligence
  • Allows you to utilize benefits of cloud environment by flexibly deploying BIG-IP GTM Virtual Edition (VE)
  • Supports DNSSEC with real-time signing and validates DNSSEC responses

As you can see, the BIG-IP GTM is a workhorse that literally has no rival in today's market. It's time to change the way we think about DNS architecture deployments. So, utilize the F5 Intelligent DNS Scale Reference Architecture to improve web performance by reducing DNS latency, protect web properties and brand reputation by mitigating DNS DDoS attacks, reduce data center costs by consolidating DNS infrastructure, and route customers to the best performing components for optimal application and service delivery.


Learn more about F5 Intelligent DNS Scale by visiting https://f5.com/solutions/architectures/intelligent-dns-scale


Published Feb 07, 2014
Version 1.0
