Nishal_Rai
Cirrocumulus
CirrocumulusWhat does BigIP Internal Module, N/A and Blocked by DoS Layer 7 Enforcer refers to, in HTTPAnalytics

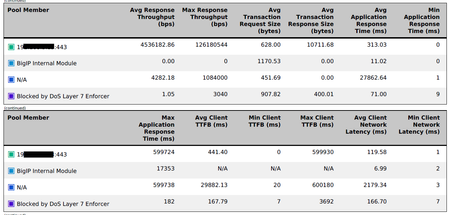

Hello Everyone, I got stumbled upon the terms mentioned below when I exported the pdf from HTTP Analytics BigIP Internal Module N/A Blocked by DoS Layer 7 Enforcer. Is anyone familiar with, wh...
Pleae find explanation of all the metrics you are seeing in BIGIQ pdf reports to get more clear understanding:
HTTP Metric
HTTP metrics reflect the quantity, volume and speed of the HTTP traffic processed by your managed BIG-IP systems. Metric sets categorize the metric data according to an aspect of the traffic's progress throughout the transaction process. The table below defines the metric set and the kind of metric data collected.
|
Metric Set
|
Metric Set Definition
|
Metric
|
Metric Definition
|
|---|---|---|---|
|
Transactions
|
Each initiated request between the client and BIG-IP system, regardless of the outcome.
|
Avg/s
|
Average number of transactions per second that were processed by the BIG-IP system.
|
|
Total
|
Total number of transactions processed by the BIG-IP system.
|
||
|
Request Volume
|
The volume (in bytes) of a request that is processed by the BIG-IP system.
|
Avg Size
|
The average number of bytes sent per transaction request.
|
|
Throughput
|
The average rate of bytes per second sent in transaction requests.
|
||
|
Volume
|
The total number of bytes sent in all transaction requests.
|
||
|
Response Volume
|
The volume (in bytes) of a response that is processed by the BIG-IP system.
|
Avg Size
|
The average number of bytes sent per transaction response.
|
|
Throughput
|
The average rate of bytes per second sent in transaction responses.
|
||
|
Volume
|
The total number of bytes sent in all transaction responses.
|
||
|
Server Latency
|
Server latency is the time (in ms) from when the BIG-IP system sends the first request byte to the web application server, until the BIG-IP system receives the first response byte.
|
Avg
|
The average server latency observed by the system.
|
|
|
|||
|
Trans Count
|
Total number of transactions processed by the BIG-IP system.
|
||
|
Max
|
The highest server latency observed by the system.
|
||
|
Page Load Time
|
Page load time is the time (in ms) from when the client sends the first byte of a request until the last byte of the response is received by the client.
Page load time is how long (in milliseconds) it takes from the time an end user makes a request for a web page, until the web page from the application server finishes loading on the client-side browser.
|
Trans Count
|
The number of client responses from the system that include page load time information.
|
|
Max
|
The longest page load time observed by the system.
|
||
|
Avg
|
The average page load time observed by the system.
|
||
|
Application Response Time
|
The time (in ms) from when the server receives the first request byte from the BIG-IP system until the server sends the first byte of the response.
|
Avg
|
The average application response time observed by the system.
|
|
Min
|
The shortest application response time observed by the system.
|
||
|
StdDev
|
The the standard deviation (in ms) of all application response times observed by the system.
|
||
|
Trans Count
|
The number of application response times observed by the system.
|
||
|
Max
|
The longest application response time observed by the system.
|
||
|
E2E time
|
The time (in ms) from when the client sends the first packet of a request until the client receives the last packet of the response.
|
Max
|
The longest client end to end time observed by the system.
|
|
Min
|
The shortest client client end to end time observed by the system.
|
||
|
StdDev
|
The standard deviation (in ms) for all observed client end to end time.
|
||
|
Trans Count
|
The number of client responses that include client end to end time information.
|
||
|
Avg
|
The average client end to end time for all observed transactions.
|
||
|
Client Side RTT
|
Client side round trip time (RTT) is the sum of time (in ms) observed from when the first byte from a client request is received by the BIG-IP system and when the first byte of a response is sent from the BIG-IP system to the client. Or, Client TTFB not including request duration.
|
StdDev
|
The standard deviation (in ms) for all observed client side RTTs.
|
|
Min
|
The shortest client side RTT for all observed transactions.
|
||
|
Max
|
The longest client side RTT for all observed transactions.
|
||
|
Avg
|
The average client side RTT for all observed transactions.
|
||
|
Server Side RTT
|
Server side round trip time (RTT) is the sum of the times (in ms) observed from when the server receives the first request byte from the BIG-IP system and from when the BIG-IP receives the first byte of the response from the server. Or the time observed from when the BIG-IP system sends the first request byte, until it receives the first response byte, not including application response time.
|
Trans Count
|
The number of server responses to the system that include RTT information.
|
|
StdDev
|
The standard deviation (in ms) for all observed server side RTTs.
|
||
|
Avg
|
The average server side RTT for all observed transactions.
|
||
|
Max
|
The longest server side RTT observed by the system.
|
||
|
Min
|
The shortest server side RTT observed by the system.
|
||
|
Request Duration
|
The time it takes (in ms) the BIG-IP system to send the first byte until the last byte of a request to the server.
|
Max
|
The longest request duration observed by the system
|
|
Trans Count
|
The number of requests observed by the system.
|
||
|
StdDev
|
The standard deviation (in ms) of request duration for all observed requests.
|
||
|
Avg
|
The average request duration for all observed requests.
|
||
|
Min
|
The shortest request duration observed by the system.
|
||
|
Responses Duration
|
The time it takes (in ms) the BIG-IP system to send the first byte until the last byte of a response to the client.
|
Trans Count
|
The number of responses observed by the system.
|
|
Avg
|
The average response duration for all observed responses.
|
||
|
Max
|
The longest response duration observed by the system.
|
||
|
Min
|
The shortest response duration observed by the system.
|
||
|
StdDev
|
The standard deviation (in ms) of response duration for all observed responses.
|
||
|
|
HTH
🙏
|
|
|
