v14 network map

Question

Hi,is there any possibility to show network map we know from v12/v13? Also we are lacking "Show summary" in v14.F5, please don't change stuff which works, original network map in previous versions was much better than the one in v14 :/

philip_jonsson · Answer

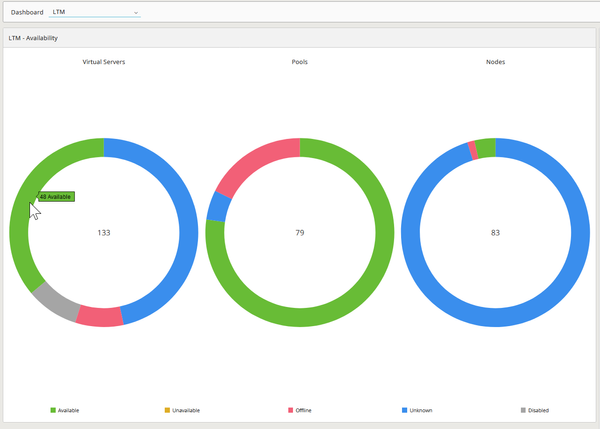

I recently upgraded a customer's device to v14 and stumbled across this as well. Even though the traditional Network Map is gone, you can have a comparison between devices by using the dashboard. May not be as good but at least it's something. When you hover over it you can see the number of each status represent.&nbsp;You reach it by going to Statistics &gt; Dashboard. Then select the dashboard named: LTM&nbsp;

olivierjm · Answer

Just see now : Menu "Statistics/Module Statistics : Local Traffic" choose "status Summmary" as type.Retrieving old display for network map in previous versions.Regards

andrew-f5 · Answer

Q: is there any possibility to show network map we know from v12/v13?A: No.&nbsp;Unfortunately there is no equivalent to the summary view.

jaikumar_f5 · Answer

OMG is that so, damn.

olivierjm · Answer

Thanks Philip,&nbsp;It is a good alternative .. In my opinion, even if new network map on version 14.1 have good options, it missed the summary we retrieve in previous versions
