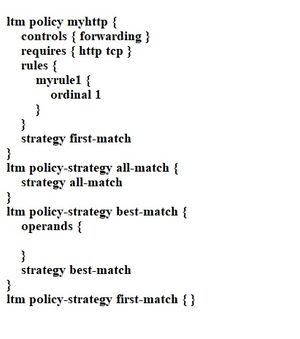

  1. For your "myhttp" policy, there is a rule attached which is not provided here. But it looks at the rules (only 1 in this case), and upon the first match, it stops processing and performs the associated action. If there were more than one rule, none would be processsed after the first match. The "forwarding" control means that the rule action will be something like choosing a pool member, inserting a header, applying SNAT, etc.



  2. Strategy "all-match" means that it doesnt stop processing after the first match. You may have multiple rules to apply to the traffic. All of them will be evaluated.



  3. Best match strategy means that only the most specific match will be processed.



See the following articles: https://devcentral.f5.com/articles/ltm-policy-matching-strategies-20834 https://devcentral.f5.com/articles/ltm-policy



bluestar007_339's avatar
bluestar007_339
Icon for Nimbostratus rankNimbostratus
Nov 11, 2017

Hi, For your "myhttp" policy, there is a rule attached which is not provided here.

Actually I did not find anything other than below

rules { myrule1 {

        ordinal 1
    }


    Does it mean there is no proper rule defined ?

    Thanks
