NimbostratusTraffic terminated on AWS LTM
Hi ALL,
I've faced one weird circumstance and here is my brief topology.
Internet user >>> External-faced Virtual Server (bond with Elastic IP) >>> Internal-faced node
When I (from the Internet) tries to access the external-faced Virtual Server which with/without the source translation, I can't see any feedback from my Web server. LTM acts the gateway role for each VLAN/prefix.
Even though I've disabled the source/destination check for all the interfaces that F5 instance has, but the situation is still there.

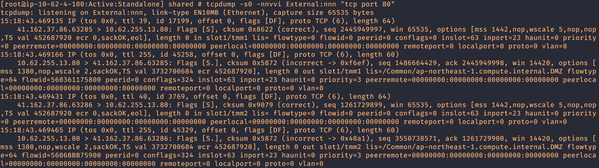

The trace below captured from External interface on LTM
The trace below captured from Intenal interface in the meantime on LTM
Obviously, the traffic was terminated on the LTM itself (can see Sync from outside, but can't see LTM forward traffic to the corresponding node). Is anything I missed on either AWS side or LTM side at the moment?
Kun-Te_ChouHi ALL,
It seems I sort the issue out although I still fell confused. After I enabled it from specific VLAN to ALL and the issue resolved afterwards.
Not sure if anyone know what the exact reason?
- boneyard
MVP
After I enabled it from specific VLAN to ALL and the issue resolved afterwards.it? the virtual server you mean?
what does the DMZ capture now show?
