sync failover issue

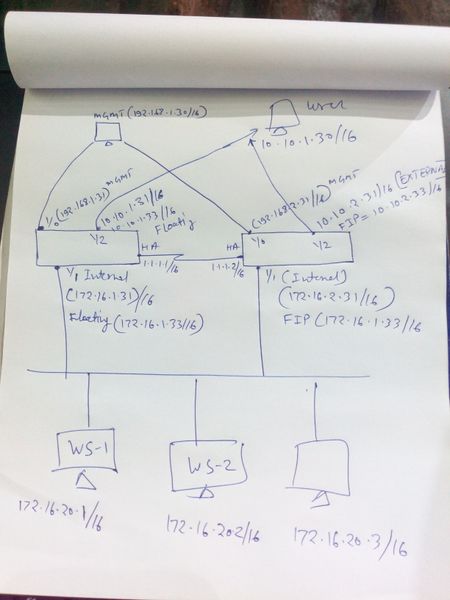

This is the scenario, all ip address are of /16 subnet mask
I am using vertual machines on my vmware platform, version is 11.3
First box configuration
Vertual server ip 10.10.1.100/16
vlan Internal 172.16.1.31/16 Floating 172.16.1.33/16 Vlan external 10.10.1.31/16 Floating 10.10.1.33/16
VLAN HA 1.1.1.1/16
Second box configuration
vlan Internal 172.16.2.31/16 Floating 172.16.1.33/16 Vlan external 10.10.2.31/16 Floating 10.10.1.33/16
VLAN HA 1.1.1.2/16
All steps including Ha are configured with setup utility be it creating trust, setting device group and traffic group
after configuring I found that ha is good because one is showing active and other is standby but below it the sync status is disconnected
when checked sync status from device group i found one device says "Awaiting initial sync" and other says Disconnected also on other box this is reverse
After checking logs i found following errors
Mon Sep 29 10:35:56 IST 2014 notice bigip1 mcpd[5338] 01071431 Attempting to connect to CMI peer 172.16.2.31 port 6699
Mon Sep 29 10:35:56 IST 2014 notice bigip1 mcpd[5338] 01071432 CMI peer connection established to 172.16.2.31 port 6699
Mon Sep 29 10:35:56 IST 2014 notice bigip1 mcpd[5338] 0107143c Connection to CMI peer 172.16.2.31 has been removed
Mon Sep 29 10:36:01 IST 2014 notice bigip1 mcpd[5338] 01071431 Attempting to connect to CMI peer 172.16.2.31 port 6699
Mon Sep 29 10:36:01 IST 2014 notice bigip1 mcpd[5338] 01071432 CMI peer connection established to 172.16.2.31 port 6699
Mon Sep 29 10:36:01 IST 2014 notice bigip1 mcpd[5338] 0107143c Connection to CMI peer 172.16.2.31 has been removed
These lines are repeating again and again
I hope info is sufficient Pls provide the solutions if possible
6 Replies
- ssjyoti805_1692
Nimbostratus
this lab is designed on vmware and ltm version is 11.3 - The_Bhattman
Nimbostratus
Did you try ask.f5.com's Config Troubleshooting Solution Article
http://support.f5.com/kb/en-us/solutions/public/13000/900/sol13946.html?sr=40637602
- Matt_Dierick
Employee
Hi,
Check the date and time, and try to reset the trust by generating a new trust.
- Andy_McGrath
Cumulonimbus
Time is realy important so check the time and set NTP if you can. Also check the ConfSync IP's on each system, I would also set this to be the HA VLAN and IP addresses, this can be done under the following on both systems: Device Management, Devices, , Device Connetiviy, ConfSync
Do the same for the Network Failover under: Device Management, Devices, , Device Connetiviy, Network Failover (delete all but the HA VLAN IPs)
Go back and try to do the initial sync if that works you can then test network failover.
- jerilkc_211753
Nimbostratus
Try adding the device group from other device. Worked for me.
- Daniel_Mansilla
Nimbostratus
I have the same issue in vmware platform... Did you fix the problem?
