SSL offloading with port 8443

Hallo, I need help to configure SSL offloading with port 8443 , i have configured a VS https with port 8443 and pool members that listen to port 8443 , i want to configure SSL certificate but no lu...

application delivery

security

mihaic

MVP

If your VS is listening on 8443 you don't need to redirect.

You need to create a SSL client profile that has your SSL certificate, and chain.

https://my.f5.com/manage/s/article/K14783#2

As you do SSL offloading, your pool members don't have to do SSL anymore. Unless you want traffic between the F5 and the pool members to be encrypted also.

TMH

Nimbostratus

Mar 10, 2023

I have already created ssl certificate and signed with CA lets say for example ABCD CA server, and then created a ssl client profile and still not working , i used to go over the previous steps with SSL offloading for virtual server 443 and its working , is there a specific options for SSL client profile for 8443 ? because when i check the certificate in the URL https://abcd:8443 the certificate shows (Local Host ) same as before a assigne the SSL Client Profile !! its like the SSL profile not really effect the virtual server certificate .

Paulius
MVP
Mar 10, 2023

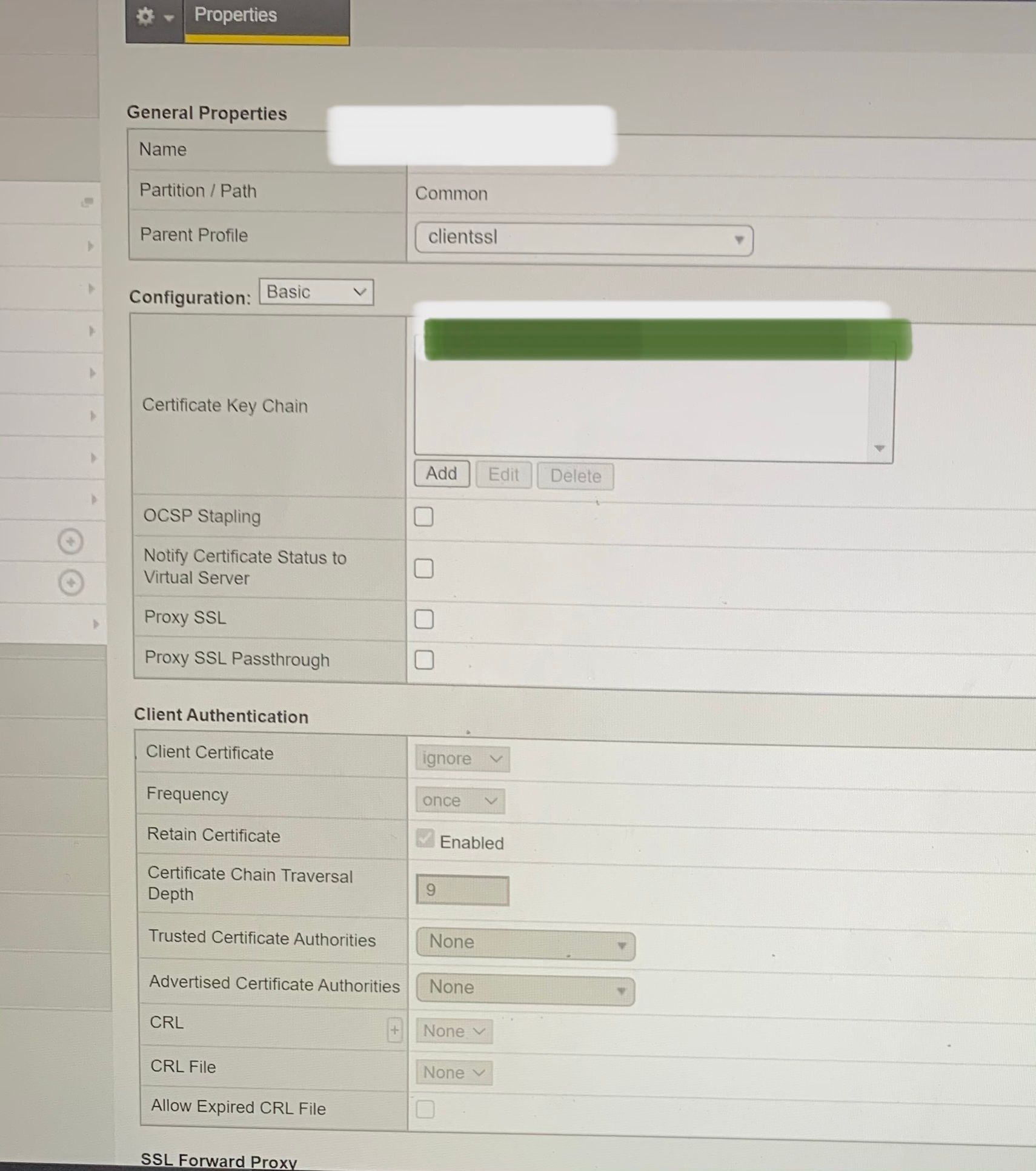

TMH In order to provide additional detail on why this isn't working it would be helpful to see the configuration of the virtual server and SSL client profile that is assigned to the virtual server. Purely based on the screenshot it seems like the SSL client profile being used doesn't have the trusted CA certificate in it.
- TMH
  Nimbostratus
  Mar 10, 2023

  Paulius
  What i had configured with virtual server :
  Name:xxxx
  Type:Standard
  Source:0.0.0.0.
  Destination:x.x.x.x
  Port:Other 8443
  Protocol:TCP
  Protocol Profile(client):Tcp
  Protocol Profile (Server):use client profile
  SSL profile client: (name of profile ssl 8443)
  SSL profile server:None
  All the other options is none.
  Default Persistence Profile:source_add
  Fallback Persistence Profile:none
  And for SSL client Profile:
  Certificate key chain: i added the certificate and key and chain that I already imported in certificate list.
  correct me if there's something wrong or missing .
  - Paulius
    MVP
    Mar 10, 2023
    TMH Based on the description and without being able to see which cert and key pair are being used I would say this is configured correctly and should work. If you are still having issues you might take a QKVIEW and upload it to iHealth to see if anything pops up on that.
