SNMP MIB OIDs for BIG-IP Version 15.1.6.1

Hi,

We have devices related to "BIG-IP Virtual Edition : Linux 3.10.0-862.14.4.el7.ve.x86_64 : BIG-IP software release 15.1.6.1, build 0.0.10". And we need to find the MAC Address using SNMP MIBOID. Please provide/Suggust to get the OID for the same.

Thanks in adwance.

Regards,

Manoj

application delivery

2 Replies

Sort By
  • zamroni777's avatar
    zamroni777
    Icon for Cumulonimbus rankCumulonimbus
    Dec 12, 2023

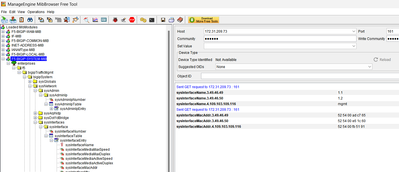

    you can see it within SNMP object sysInterfaceMacAddr using MIB F5-BIGIP-SYSTEM-MIB:
    .iso.org.dod.internet.private.enterprises.f5.bigipTrafficMgmt.bigipSystem.sysNetwork.sysInterfaces.sysInterface.sysInterfaceTable.sysInterfaceEntry (.1.3.6.1.4.1.3375.2.1.2.4.1.2.1)
