Routing Issue

e.g.

sol7595: Overview of IP forwarding virtual servers (Emulating stateless IP routing with BIG-IP LTM forwarding virtual servers section)

From picture, you can see i have two vlan (internal and mampu). I want server on internal vlan can communicate to vlan mampu. What i need to do? Please advice.

I want server on internal vlan can communicate to vlan mampu.

server in internal vlan and server in mampu vlan use f5 as default gateway, aren't they?

you can create 172.16.0.0/20 network ip forwarding virtual server listening on internal vlan.

From picture, is this correct way? On port 1.2, ip 172.16.0.0/20. Those ip will connect router to our data center.

From picture, is this correct way?

protocol should be all.

what is network address server on 192.168.1.0/24 wants to connect to? is it 172.16.0.0/20 or 172.17.0.0/24?

if it is 172.17.0.0/24, virtual server should be on 172.17.0.0/24 (not 172.16.0.0/20) and you have to route for 172.17.0.0/24 network.

The server on 192.168.1.0/24 want to connect 172.16.0.0/20.

Let me explain detail:

Server A: 192.168.1.10 gw 192.168.1.254 Router A: 172.16.0.93 gw 172.16.0.253

Router A connect to point-to-point fiber to our DC. From 172.16.0.0/20, we can access direct to our DC. 192.168.1.0/24 must thru F5. From F5, i can ping DC because i plug in cable 172.16.0.0/20 on port 1.2. Network 192.168.1.0/24 is on port 1.1.

After router A, we have ip on DC with 192.168.200/24. Our server there using 192.168.200.xxx. How we can connect internal vlan to mampu vlan?

How we can connect internal vlan to mampu vlan?

i understand you want server in internal vlan (192.168.1.0/24) to be able to connect to server in mampu vlan (172.16.0.0/20). am i correct? so, doesn't your 172.16.0.0/20 network ip forwarding virtual server (with protocol is set to all protocols) work?

by the way, i think server in internal vlan default gateway is not f5 (192.168.1.254 is not f5), so you have to add static route for 172.16.0.0/20 to f5, haven't you?

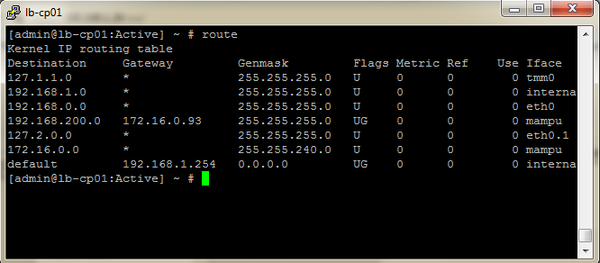

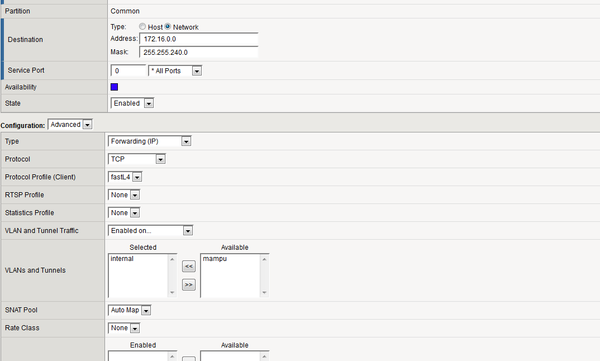

Check my config here: config

My server on internal vlan still cannot ping server at DC (192.168.200.1)
