Route Reachability Problem

Hi Montasir,

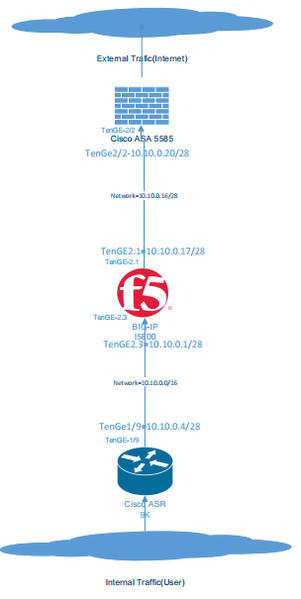

First of can you tell my why you use RD? because if I understand your architecture, for outgoing flow you have to cross F5 (ingress flow from internal vlan and degress flow trough external vlan). In this use case you don't need RD...



So in our case we want traffic between 2 RD. So we can control this behavior by configuring the Strict Isolation feature of a route domain. we must disable the Strict Isolation property on both route domains.



Can you alread do this configuration.



Regards



Bigip never route traffic if no listener is created!



There are 3 listeners in bigip



• virtual server
• snat object
• nat object

To route traffic from one vlan to another, you must create a forwarding (IP) virtual server with network destination (example : 0.0.0.0/0)
