Rewrite issue with Portal Access

Hello,

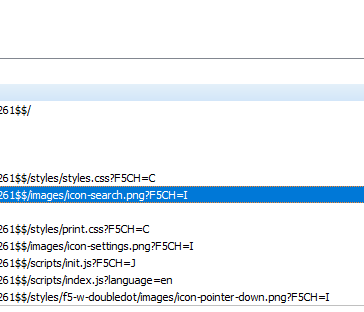

I´ve a rewrite issue with a internal webpage that I´m publishing with Portal Access. The APM module adds "F5CH=I" to the image path and "F5CH=C" to the css path.

 styles.css?F5CH=C
 /images/icon-search.png?F5CH=I

I found out that this is a known bug and I created an IRule to fix it.

when HTTP_REQUEST {
  set wtType [ACCESS::session data get session.policy.result.webtop.type]
  if {[ info exists wtType ] && $wtType == "full" } {
    if { !([HTTP::uri] starts_with "/f5-w") && ([HTTP::uri] contains "styles") && ([HTTP::uri] contains "/images")  } {
       log local0. "===>  Before  ====> [HTTP::uri] "
       HTTP::uri "/f5-w-MASKED_HEX$$[HTTP::uri]"
       log local0. " Corrected ====> [HTTP::uri] "
    }
  }
  unset wtType
}

But without any success.

Any suggestions what I´m missing?

application delivery
BIG-IP Access Policy Manager (APM)
iRules

1 Reply

  • Enes_Afsin_Al's avatar
    Enes_Afsin_Al
    Icon for MVP rankMVP
    Sep 04, 2019

    Hi Squeak,

    I think, you should use "||" operator instead of "&&" operator

    when HTTP_REQUEST {
	set wtType [ACCESS::session data get session.policy.result.webtop.type]
	if { [info exists wtType] && $wtType == "full" } {
		if { (not ([HTTP::uri] starts_with "/f5-w")) && (([HTTP::uri] contains "styles") || ([HTTP::uri] contains "/images")) } {
			log local0. "====> Before ====> [HTTP::uri] "
			HTTP::uri "/f5-w-MASKED_HEX$$[HTTP::uri]"
			log local0. "Corrected ====> [HTTP::uri]"
		}
	}
	unset wtType
}
