I needs to redirect the URL if a user enters https://www.example.com it should redirect to https://example.com/xyz , I have http to https irule applied on 80.

Mohamed,if you are looking for a static redirect then this should workwhen HTTP_REQUEST { if {[string tolower [HTTP::host]] ends_with "example.com"} { HTTP::redirect "https://example.com/xyz" } }

If you are already doing an HTTP --> HTTPS redirect then this irule should only be added to your HTTPS Virtual server. Hope that helps

If www.example.com and example.com are the same VS, then this is the source of your looped redirect. You hit the same host again (example.com) and then redirect because your HOST ends with example.com...You need to check the the URI is NOT /xyz already... e.gwhen HTTP_REQUEST { if { ([HTTP::uri] begins_with "/xyz") } { return } if {[string tolower [HTTP::host]] ends_with "example.com" } { HTTP::redirect "https://example.com/xyz" } }Change begins_with to equals depending on what the rest of the content looks like...

Because I was typing on the fly. It's starts_with not begins_with

Mohammed, Plenty of information/examples if you search for HTTP::redirect command in DevCentral. Here's the documentation for HTTP::redirect to get you started. N

request needs to redirect from https://www.example.com to https://example.com/xyz

12 Replies

nathe
Cirrocumulus
Jun 25, 2019
Mohammed,

Plenty of information/examples if you search for HTTP::redirect command in DevCentral.

Here's the documentation for HTTP::redirect to get you started.

N
Mohammed_Akram
Altostratus
Jun 25, 2019
Thanks for the reply

all are working except if a user add www. its giving error . For the URL as am using wildcard cert

http://example.com or https://example.com or example.com or
http://www.example.com or https://www.example.com

should be redirect to https://example.com/xyz
nathe
Cirrocumulus
Jun 25, 2019
a quick search of DC comes up with this: redirect www to https
The_Y
Cirrus
Jun 25, 2019
Mohamed,
if you are looking for a static redirect then this should work
when HTTP_REQUEST { if {[string tolower [HTTP::host]] ends_with "example.com"} { HTTP::redirect "https://example.com/xyz" } }
- Hamish
  Cirrocumulus
  Jun 30, 2019
  If www.example.com and example.com are the same VS, then this is the source of your looped redirect. You hit the same host again (example.com) and then redirect because your HOST ends with example.com...
  You need to check the the URI is NOT /xyz already...
  e.g
  when HTTP_REQUEST { if { ([HTTP::uri] begins_with "/xyz") } { return } if {[string tolower [HTTP::host]] ends_with "example.com" } { HTTP::redirect "https://example.com/xyz" } }
  Change begins_with to equals depending on what the rest of the content looks like...
  - Mohammed_Akram
    Altostratus
    Jun 30, 2019
    Error in Irule
Mohammed_Akram
Altostratus
Jun 25, 2019
if a user enter https://www.example.com "HTTPS" then it is not redirecting . if a user hit http://www is redirecting but only https:// giving error.
The_Y
Cirrus
Jun 25, 2019
If you are already doing an HTTP --> HTTPS redirect then this irule should only be added to your HTTPS Virtual server. Hope that helps
Mohammed_Akram
Altostratus
Jun 26, 2019

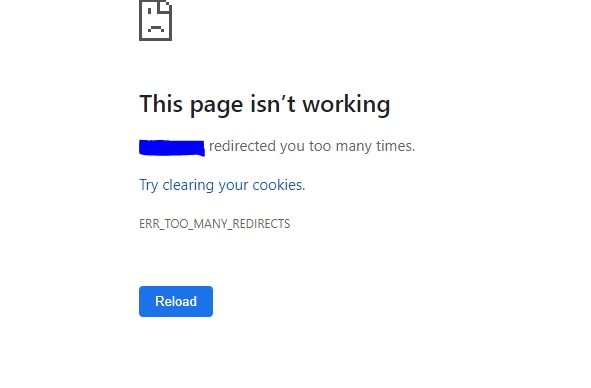

It says redirected you too many times
The_Y
Cirrus
Jun 28, 2019
Seems like you are having a redirect loop. Can you share your VS on config on port 80 and 443?
list ltm virtual <virtual_server>
Mohammed_Akram
Altostratus
Jun 30, 2019
Below are the config on HTTP and HTTPS VIP

(HTTP_redirected)
list ltm virtual test-directory-redir

ltm virtual test-directory-redir {
  creation-time 2019-06-17:13:17:31
  destination X.X.X.X.:http
  ip-protocol tcp
  last-modified-time 2019-06-18:23:46:04
  mask 255.255.255.255
  profiles {
    http { }
    tcp { }
  }
  rules {
    _sys_https_redirect
  }
  source 0.0.0.0/0
  source-address-translation {
    type automap
  }
  translate-address enabled
  translate-port enabled
  vs-index 43
}

___________________________________________________________________________________________________________

(HTTPS)

list ltm virtual test-directory

ltm virtual test-directory {
  creation-time 2019-06-17:13:15:56
  destination X.X.X.X:https
  ip-protocol tcp
  last-modified-time 2019-06-18:23:34:03
  mask 255.255.255.255
  persist {
    dest_addr {
      default yes
    }
  }
  policies {
    Gzip { }
  }
  pool Elaa_FII_Pool
  profiles {
    Elaa_Client_SSL {
      context clientside
    }
    http { }
    httpcompression { }
    tcp { }
  }
  rules {
    X-Forwarded-For
    ends_with_www
  }
  source 0.0.0.0/0
  source-address-translation {
    type automap
  }
  translate-address enabled
  translate-port enabled
  vs-index 42
}
