Forum Discussion

David_G__33241's avatar
David_G__33241
Icon for Nimbostratus rankNimbostratus
Oct 26, 2014

Plain Text Formatting with VPE email agent

When email is sent from the VPE email agent, it is formatted as Plain Text. I would like to add a carriage return-line feed after the first period in the following example:



Logon by %{session.logon.last.username}. Client Platform is %{session.client.platform}.



I have tried \r\n with and without both single and double quotes but whatever I type simply becomes part of the email body. If there is no way to do this can I somehow change it to html or is that a completely differntly field in the message header?



APM 11.5.1



Thanks



BIG-IP Access Policy Manager (APM)
security
  • kunjan's avatar
    kunjan
    Icon for Nimbostratus rankNimbostratus
    Oct 26, 2014

    Currently it is not supported. There is feature request been raised for this. May be you can raise a support case.



  • jk20004's avatar
    jk20004
    Icon for Cirrus rankCirrus
    Sep 25, 2015

    any news about the feature request in 11.6.0 HF5 or in 12.0?



  • David_Gill's avatar
    David_Gill
    Icon for Cirrus rankCirrus
    Nov 06, 2015

    I had a requirement to send an email with an attachment using a bash script and in doing so discovered that the email message could also contain html formatting. I used Mark's HTTP Super SIDEBAND Requestor to call the script to send the email. Once you have this setup you can simply call it from an irule event. Definitely not as easy as filling out a box in the VPE but it works well once the heavy lifting is done.

    Here is a sample script which simply paints a number blue – I think it demonstrates the capabilities…

    !/bin/bash

(echo "Subject: Your Secret Password "
echo "To: toaddress@company.com"
echo "Content-Type: TEXT/HTML; charset=US-ASCII"
echo ""
echo ""
echo ""
echo "Your password is: 12345"
echo "
") | sendmail toaddress@company.com
  • Jad_Tabbara__J1's avatar
    Jad_Tabbara__J1
    Icon for Cirrostratus rankCirrostratus
    Feb 08, 2022

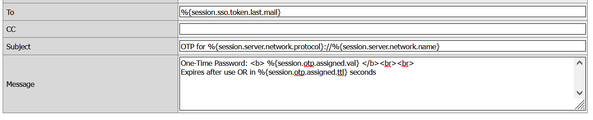

    It is working as expected, I added the "html code" and the sent email with VPE SMTP Email Agent.

    The result was as expected ! The formating was following the HTML syntax put in the message

    One-Time Password: <b> %{session.otp.assigned.val} </b><br><br>
Expires after use OR in %{session.otp.assigned.ttl} seconds

    The result is as expected "bold" for the OTP & two new lines were added because of the double <br>

    Regards
