Forum Discussion
NimbostratusNo SNMP Response when Internal IP as Gateway
System is not able to get SNMP response (No SNMP Response) while F5 internal IP act as a gateway. Its working fine when it is in default gateway.

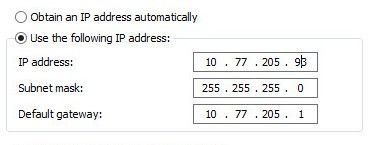

Default Gateway: 10.77.205.1 (Getting SNMP reponse)

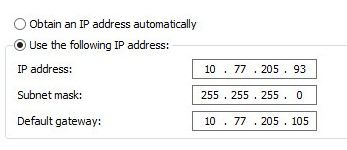

Internal IP of F5: 10.77.205.105 (No SNMP Response)
5 Replies
Ed_SummersBIGIP doesn't route traffic by default. Any traffic it receives and is not explicitly configured to handle will be dropped.
Please provide additional information on what you are trying to achieve.
- KSB_313599
What do u mean by additional information ?.. please let me know
- KSB_313599
Any one please suggest ....
- Ed_Summers
-What is the IP address of the device you are trying to poll via SNMP? -Why are you using the F5 self IP as the gateway instead of 10.77.205.1? -What configuration related to this communication do you have on the F5 other than the self IP? (E.g.: SNAT, VIP, NAT, etc...)
- KSB_313599
What is the IP address of the device you are trying to poll via SNMP? F5 Big IP: 10.77.194.138 Node 1: 10.77.205.83 255.255.255.0 Default Gateway: 10.77.205.1 Node 2: 10.77.205.91 255.255.255.0 Default Gateway: 10.77.205.1 Device IP: 10.77.202.84
Why are you using the F5 self IP as the gateway instead of 10.77.205.1?
thats what documents says... we need to give Internal Vlan IP address as a Node's default gateway..
What configuration related to this communication do you have on the F5 other than the self IP? (E.g.: SNAT, VIP, NAT, etc...)
VIP only configured... VIP IP: 10.77.205.234
Thanks in advance.
