NimbostratusNetwork Failover

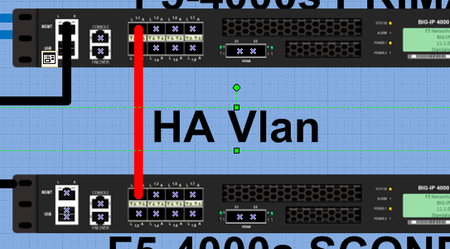

Can we Directly connect two F5 LAN ports for Network Fail over with HA Vlan.
Yes, and it's generally recommended to do so.
I'd even recommend to use two physical interfaces (as Aggregated Trunk) for HA, unless you plan to use all other 7 interfaces for something else. It would make sense to use that HA trunk interface for three things: Config Sync, Network fail-over, Traffic Mirror
Hannes_RappNimbostratus
NimbostratusYes, and it's generally recommended to do so.
I'd even recommend to use two physical interfaces (as Aggregated Trunk) for HA, unless you plan to use all other 7 interfaces for something else. It would make sense to use that HA trunk interface for three things: Config Sync, Network fail-over, Traffic Mirror
MM_F_147944Nimbostratus
Nimbostratusthanks for your reply kindly guide me If we have HA both from Hard Wire and Network configured and we have configured Vlan Failsafe, dose failover happens if we shut the Vlan of Active F5, however it can detect heartbeat on Hardwire,
