Multiple server with one VS

Hello,

Can i use two différents servers with one virtual server, for example :

1/ abc.com :

Vs 172.16.250.100 -----> server1 : 10.10.10.10

2/ xyz.com :

Vs 172.16.250.100 -----> server2 : 10.10.10.11.

Thanks you





application delivery
  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    Nov 20, 2022

    Abdou76 ,
    sure you can do this ,
    try this :

    when HTTP_REQUEST {
 if {[HTTP::host] eq "abc.com"}{
  pool pool_1
 } elseif {[HTTP::host] eq "xyz.com"}{
     pool pool_2
} elseif {[HTTP::host] eq "ghl.com"}{
     pool pool_3
     }
}

    Hope it works with you.
    Regards

  • Abdou76's avatar
    Abdou76
    Nov 20, 2022

    Hi mohamedT

    hank you for your great help



  • Mohamed_Ahmed_Kansoh's avatar
    Mohamed_Ahmed_Kansoh
    Icon for MVP rankMVP
    Nov 10, 2022

    Hi Abdou76 ,
    Yes , it is doable on F5 by two methods LTM Policies or iRule :
    First :
    > create two pools , and Put " 10.10.10.10 in pool_1" and "10.10.10.11 in Pool_2".

    > then , Go to ( Local traffic , Policies ) and follow the below Article , steps to construct you LTM policy :
    https://techdocs.f5.com/kb/en-us/products/big-ip_ltm/manuals/product/local-traffic-policies-getting-started-12-1-0/1.html

    its quite Long but it is helpful 😀
    - you need to perform such below snap shots :

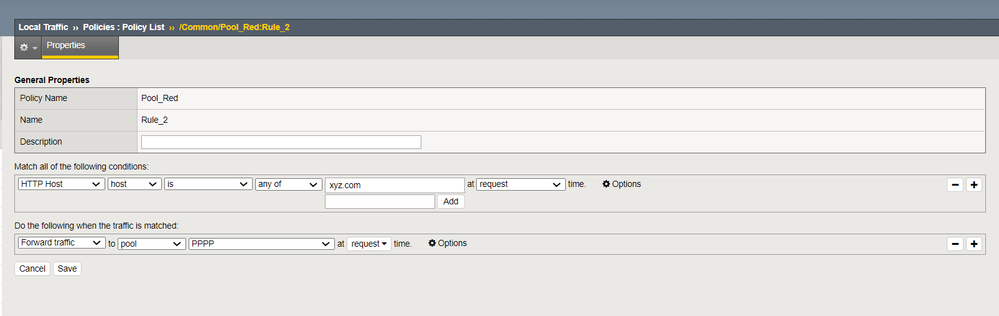

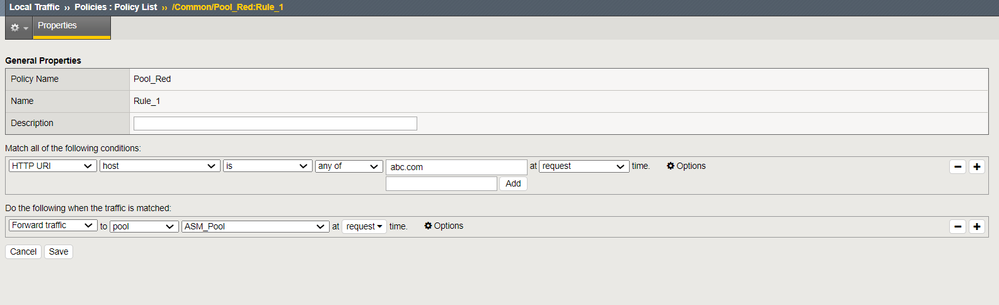

    Create two rules in LTM policy :

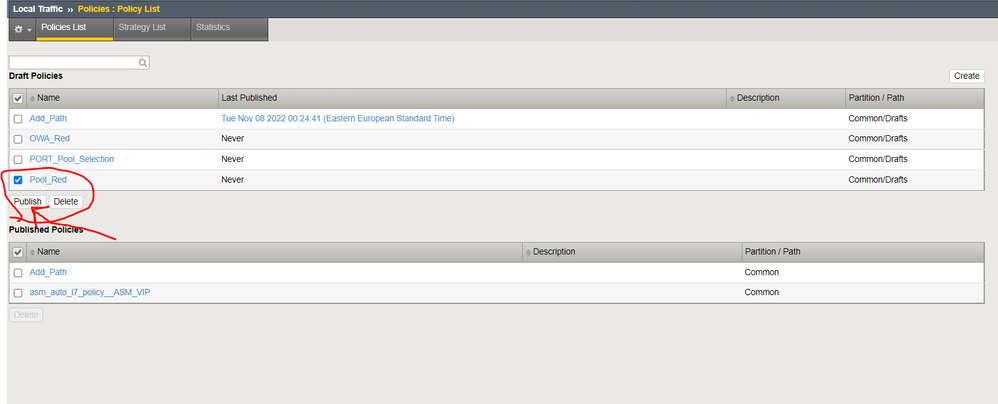

    Do not Forget to Publish your Policy to be able to assign it in virtual servers , find below :

    > assign your LTM policy to your virtual server " 172.16.250.100"


    > you can do this Task By iRule :

    when HTTP_REQUEST {
if { [HTTP::host] eq "abc.com" }
{ pool_1} elseif
{ [HTTP::host] eq "xyz.com" }
{ pool_2}
}



    > I recommend LTM policy as it is simpe and light on F5 appliance.

    I hope this helps you.

    Regards

    • CA_Valli's avatar
      CA_Valli
      Icon for MVP rankMVP
      Nov 11, 2022

      Correct answer, just be careful with iRule syntax because putting parenthesis on new lines like that can result in issues - expecially on the elseif statement. Also, pool command is pool <pool_name>



      when HTTP_REQUEST {
 if {[HTTP::host] eq "abc.com"}{
  pool pool_1
 } elseif {[HTTP::host] eq "xyz.com"}{ pool pool_2 }
}




      I would suggest using LTM policies too, since it uses a configuration template that is better supported during software upgrades, and also typically performs 20% faster.

  • Abdou76's avatar
    Abdou76
    Icon for Cirrus rankCirrus
    Nov 18, 2022

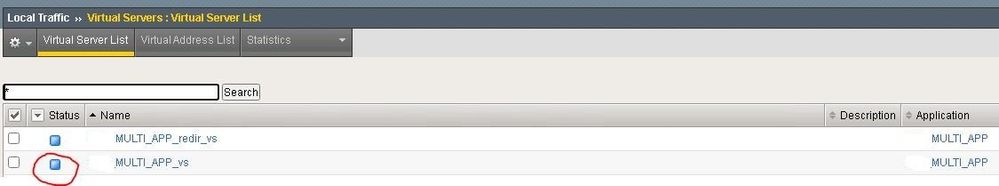

    Thanks you for feedback, but thé availability of m'y VS still unknown (blue color)



    • Mohamed_Ahmed_Kansoh's avatar
      Mohamed_Ahmed_Kansoh
      Icon for MVP rankMVP
      Nov 18, 2022

      Okay Abdou76 ,

      make sure to assign a monitor to your pools until make them available.
      Then apply your iRule to your Virtual server.

      The best way to make it available is assigning a default pool directly , but I Tested it on my lab and I see the virtual server available when " all pools that have been used in irule UP and Available by their health monitor "

      Try it
      Regards

      • Abdou76's avatar
        Abdou76
        Icon for Cirrus rankCirrus
        Nov 18, 2022

        Hi Mohamed

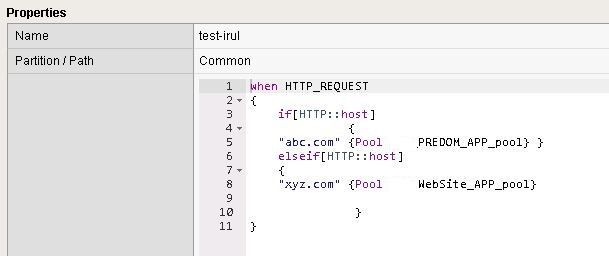

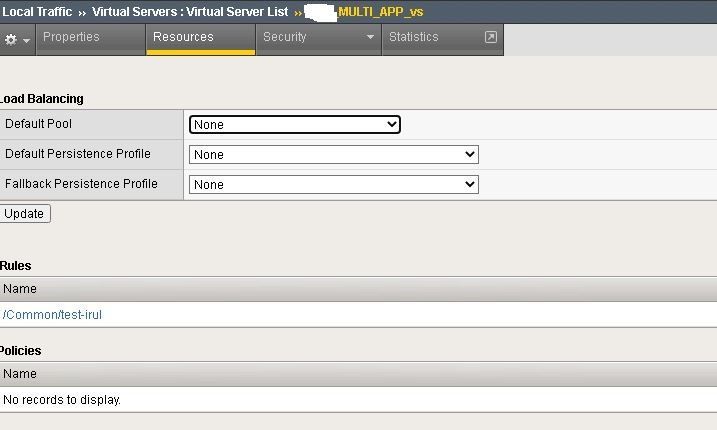

        Bellow are my captures :
