LTM routing concern.

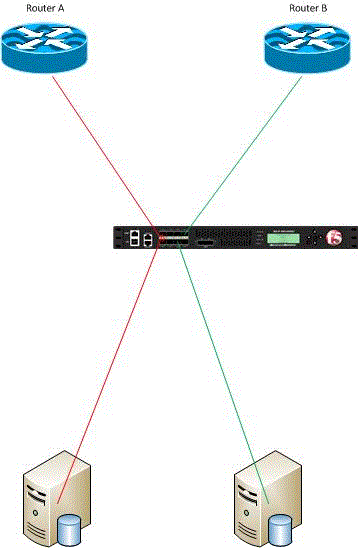

Dears,   I need your kind advise regarding the following setup , we have two LTMs in Active/standby mode and we are trying to use them to load balance the traffic that is going to multiple servers...
deployment
design
nitass's avatar
nitass
Icon for Employee rankEmployee
Dec 30, 2013

how the LTM will distinguish the traffic that is coming from Router A or router B ?



do you concern about return traffic from f5 to client?



if yes, there is feature called auto lasthop which is enabled by default. it will send return traffic to mac address it was coming from (i.e. route on f5 is not required).



sol13876: Overview of the Auto Last Hop setting (11.x)



http://support.f5.com/kb/en-us/solutions/public/13000/800/sol13876.html
