LTM-ASM deployment senerios

Hi Guy,

You must create a wildcard(0.0.0.0) "ip forwarding" virtual server, then you can create policy where you want to forward the traffic. Or you can do it with iRule. I wrote two sample iRule:

use this for just looking the client network to redirect the traffic

when CLIENT_ACCEPTED {
if {([IP::addr [IP::client_addr]/24 equals 10.10.10.0]) or ([IP::addr [IP::client_addr]/24 equals 11.11.11.0])}
{
forward the traffic to the first route
pool pool_firstRoute
} elseif {([IP::addr [IP::client_addr]/24 equals 40.40.40.0]) or ([IP::addr [IP::client_addr]/24 equals 41.41.41.0]) }
{
forward the traffic to the second route
pool pool_secondRoute
} else {
forward the traffic to the default route
forward
}
}

use this for more specific conditions

when CLIENT_ACCEPTED {
switch -glob "src:[IP::client_addr] dst:[IP::local_addr] dport:[TCP::local_port]"
"src:10.10.10.10 dst:20.20.20.20 dport:80" -
"src:11.11.11.11 dst:20.20.20.20 dport:80" -
"src:12.12.12.12 dst:3.3.3.3 dport:443"
{
forward the traffic to the first route
pool pool_firstRoute
}
"src:40.40.40.40 dst:20.20.20.20 dport:80" -
"src:41.41.41.41 dst:20.20.20.20 dport:80" -
"src:42.42.42.42 dst:3.3.3.3 dport:443"
{
forward the traffic to the second route
pool pool_secondRoute
}
default
{
forward the traffic to the default route
forward
}
}

Starting with the last question, yes F5 can do policy-based routing. Basic rulesets can be defined with

Local Traffic Policy

feature. For complex scenarios, you have

iRules

which are not that complex to write. Both are available in LTM.

In regards to deployment scenario, you can definitely achieve this. Since you mentioned ASM, just take note that you will have to decrypt SSL/TLS at the firewall or BigIP, otherwise ASM cannot inspect L7 contents.

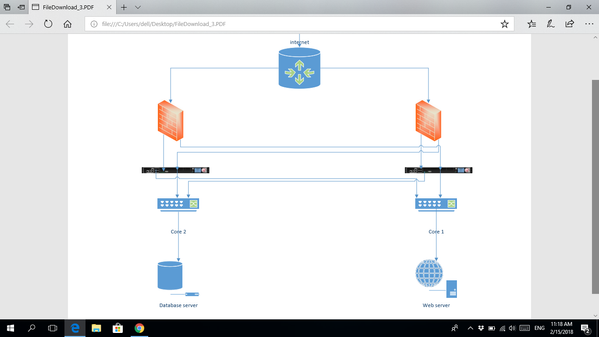

@ Diagram I'm not sure if everyone will be able to read it the same. Does the Web Server depend on that Database Server service? Or is the Database a standalone service, not related to Web Server underneath Core 1 switch? This one is also unrelated to your questions, but why aren't Core 1 and Core 2 configured as stack of 2 units?.. Or are they?

Starting with the last question, yes F5 can do policy-based routing. Basic rulesets can be defined with

Local Traffic Policy

feature. For complex scenarios, you have

iRules

which are not that complex to write. Both are available in LTM.

In regards to deployment scenario, you can definitely achieve this. Since you mentioned ASM, just take note that you will have to decrypt SSL/TLS at the firewall or BigIP, otherwise ASM cannot inspect L7 contents.

@ Diagram I'm not sure if everyone will be able to read it the same. Does the Web Server depend on that Database Server service? Or is the Database a standalone service, not related to Web Server underneath Core 1 switch? This one is also unrelated to your questions, but why aren't Core 1 and Core 2 configured as stack of 2 units?.. Or are they?
