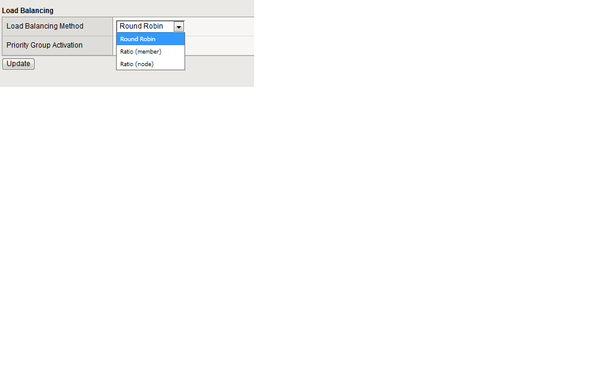

Hello all, On one of my F5, the load-balancing methods available on pools is limited to "round robin/Ratio (member)/ Ratio (node)". I do not have any other option available (like "Least connections", ...) I Can't find anywhere any info on this. Is this something that can be configured somewhere ? Is it linked to license type maybe ? Does any of you know what is happening and how it can be fixed ? :) Thanks, Regards, Greg

On one of my F5, the load-balancing methods available on pools is limited to "round robin/Ratio (member)/ Ratio (node)". I do not have any other option available (like "Least connections", ...) is it big-ip edge gateway? if yes, yes you need ltm license.

Hello, It is a BIG-IP 4000 with LTM/ASM modules and running on 11.5.1HF11 The issue is that it only give 3 choices for the load-balancing method where it should have like 15-20 possible load balancing methods. Regards, Greg

can you post "tmsh show sys license" output?

LTM - Load-Balancing Methods on Pools

nitass_89166
Noctilucent
Dec 22, 2017
On one of my F5, the load-balancing methods available on pools is limited to "round robin/Ratio (member)/ Ratio (node)". I do not have any other option available (like "Least connections", ...)

is it big-ip edge gateway? if yes, yes you need ltm license.
- Greg_EULAERTS_1
  Nimbostratus
  Dec 22, 2017
  Hello,

  It is a BIG-IP 4000 with LTM/ASM modules and running on 11.5.1HF11

  The issue is that it only give 3 choices for the load-balancing method where it should have like 15-20 possible load balancing methods.

  Regards, Greg
- nitass_89166
  Noctilucent
  Dec 22, 2017
  can you post "tmsh show sys license" output?
- Greg_EULAERTS_1
  Nimbostratus
  Dec 22, 2017
  Hello,

  Here is the output :

  Active Modules APM, Base, 4000S (XXXXXXXXXXXXX) IPV6 Gateway Rate Shaping Ram Cache 500 CCU Access Sessions, 10000 ACCESS POLICY MANAGER Application Acceleration Manager, Core Anti-Virus Checks Base Endpoint Security Checks Firewall Checks Network Access Secure Virtual Keyboard APM, Web Application Machine Certificate Checks Protected Workspace Remote Desktop App Tunnel ASM, Unlimited (XXXXXXXXXXXXXX)

  Regards, Greg
nitass
Employee
Dec 22, 2017
On one of my F5, the load-balancing methods available on pools is limited to "round robin/Ratio (member)/ Ratio (node)". I do not have any other option available (like "Least connections", ...)

is it big-ip edge gateway? if yes, yes you need ltm license.
- Greg_EULAERTS_1
  Nimbostratus
  Dec 22, 2017
  Hello,

  It is a BIG-IP 4000 with LTM/ASM modules and running on 11.5.1HF11

  The issue is that it only give 3 choices for the load-balancing method where it should have like 15-20 possible load balancing methods.

  Regards, Greg
- nitass
  Employee
  Dec 22, 2017
  can you post "tmsh show sys license" output?
- Greg_EULAERTS_1
  Nimbostratus
  Dec 22, 2017
  Hello,

  Here is the output :

  Active Modules APM, Base, 4000S (XXXXXXXXXXXXX) IPV6 Gateway Rate Shaping Ram Cache 500 CCU Access Sessions, 10000 ACCESS POLICY MANAGER Application Acceleration Manager, Core Anti-Virus Checks Base Endpoint Security Checks Firewall Checks Network Access Secure Virtual Keyboard APM, Web Application Machine Certificate Checks Protected Workspace Remote Desktop App Tunnel ASM, Unlimited (XXXXXXXXXXXXXX)

  Regards, Greg
