Is this Diagram for deploy F5

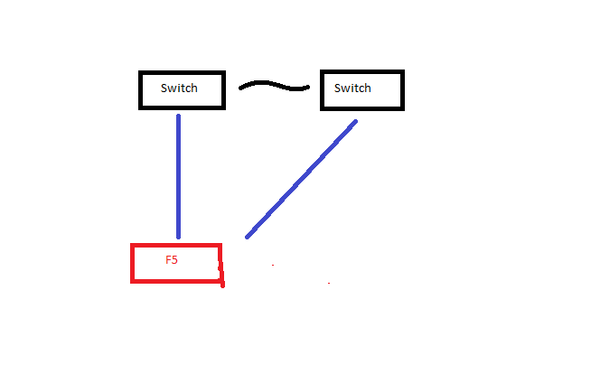

and If I have to deploy F5 in standalone, How can I connect cable from switch to F5 ?



Is this correct? Is loop problem will occur?



and Vlan Failsafe to make sure when F5 left down , F5 right can take ingress connection from right switch .

like this diagram http://bayimg.com/KamPnaADA

Hi everyone,



I've to deploy F5 in some environment in this conditions

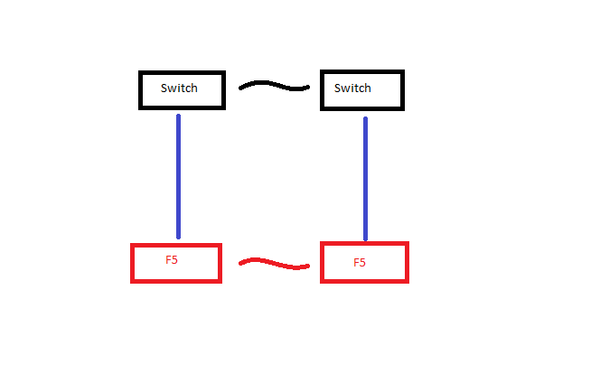

1. ) Have two upstream switch in dedundant mode before F5
2. ) Deploy F5 in redundant mode How can I connect cable? Is this correct ?

I think both F5's need to have physical connection to both switches.
