Forum Discussion

Nitesh's avatar
Nitesh
Icon for Cirrus rankCirrus
Aug 20, 2021
Solved

Is InterVLAN Routing possible in F5

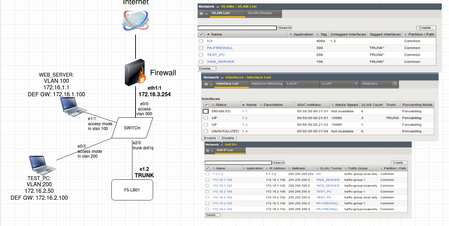

  From below topology i want to ping from TEST_PC to firewall interface IP(172.16.3.254). From same TEST_PC i can ping WEB_SERVER. I am not sure why ping to firewall is not working. I have ping poli...
application delivery
BIG-IP
BIGIPF5LTM
LTM
  • Mike757's avatar
    Mike757
    Aug 21, 2021

    Instead of "destination 172.16.3.254:any" use "0.0.0.0/0:any". This creates a full router without filter on source or destination IPs. The kernel's routing table is used to forward traffic.

Nitesh's avatar
Nitesh
Icon for Cirrus rankCirrus
Sep 06, 2021

  Thankyou very much
