irule translate ip address

Hey;

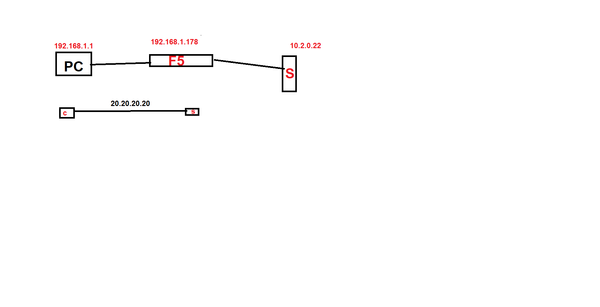

I have client IP (192.168.1.1) and IP Server (10.2.0.33) and IP Virtual Server (192.168.1.178)

I Want when connect to server connect from an IP (20.20.20.20)

I Want Use Irule

BIG-IP
devops
iRules
security

3 Replies

  • Stanislas_Piro2's avatar
    Stanislas_Piro2
    Icon for Cumulonimbus rankCumulonimbus
    Aug 06, 2019

    Do you want to translate only client ip 192.168.1.1 or any client ip?



    if you want to translate any client with source 20.20.20.20, you can create a snat pool with this IP address and assign it to the virtual server... no need an irule!

  • Stanislas_Piro2's avatar
    Stanislas_Piro2
    Icon for Cumulonimbus rankCumulonimbus
    Aug 07, 2019

    try this:

    when CLIENT_ACCEPTED {
    if {[IP::addr [IP::remote_addr] equals "192.168.1.1"]} {
        snat 20.20.20.20
    }
}
