Forum Discussion

shurufade_36926's avatar
shurufade_36926
Icon for Nimbostratus rankNimbostratus
Aug 08, 2018

irule for specific traffic

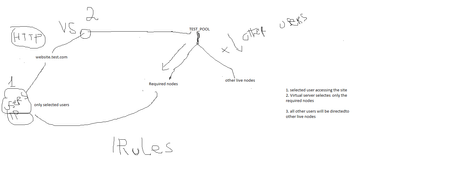

Hi all   I need assist with irule setup   I have the followings virtual server address   pool of nodes called "TEST_POOL" in the pool, there are 4 nodes only selected users or selected...
BIG-IP
cloud
devops
iRules
Andy_McGrath's avatar
Andy_McGrath
Icon for Cumulonimbus rankCumulonimbus
Aug 08, 2018

If all your Selected users are from the same IP subnet you can use multiple Virtual Serve with the

Source address
set to the Select users subnet on the first one, then assign different pools based on where you want the users traffic to be directed to.

E.g.

  • VS1 Source Address=< user subnet > Pool=< Select Server pool >
  • VS2 Source Address = *(any) Pool=< Other Server Pool >

See the following for the selection order of Virtual Server on LTM: K14800: Order of precedence for virtual server matching
