Installing F5 LTM

Hi Guys

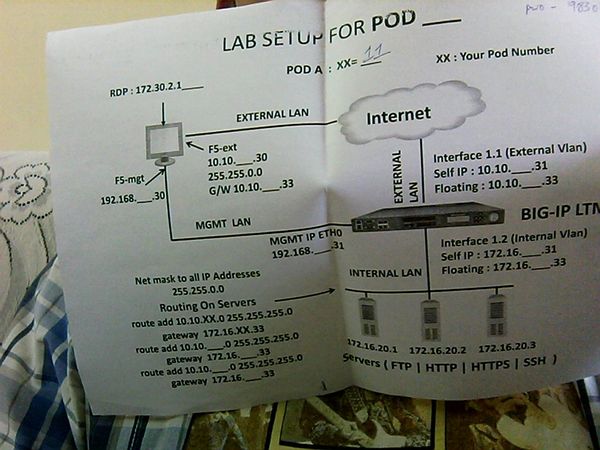

I am trying to install F5 LTM on VMWare workstation 10 but not getting success. I don't know what network interfaces i have to provide and do the mgmt ip address should be the same as my real network address. I am new to VMware and does know much about configuring servers MS IIS and i need to configure LTM for the below setup.





PLease help me out in configuring this setup in VMware workstation step by step i will be very very thankful to you guys.



Thanks & Rgds Ashish Solanki



application delivery
LTM
management

2 Replies

  • Jason_L_40779's avatar
    Jason_L_40779
    Icon for Nimbostratus rankNimbostratus
    May 27, 2015

    I believe you need to have a separate vNIC in management from the internal vlan. So a minimum of 2 nics. If I remember correctly, the management will be eth0 and eth1 will be the internal.
