Forum Discussion

Vasim's avatar
Vasim
Icon for Altocumulus rankAltocumulus
Apr 19, 2020

in video 9 CBT Nuggest, I followed all the steps by Keith Barker but I was able to ping 192.168.1.177

Hi All,

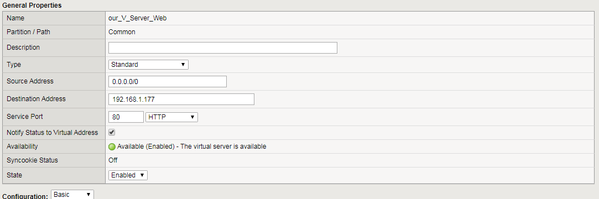

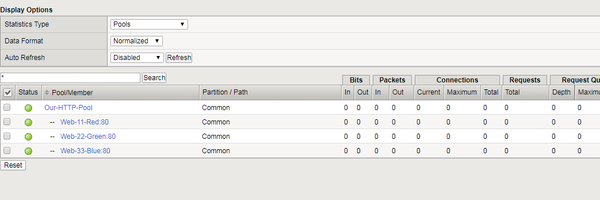

While create own Vmware WS ,lab through CBT Nuggets,when i create Vs on BIG IP device,I was successfully done it but issue i was not able to browse to Vs on Port 80 from local machine(outside Network ) ,, attached screen shot..someone pls help





,

,

application delivery
BIG-IP
LTM

3 Replies

  • Mayur_Sutare's avatar
    Mayur_Sutare
    Icon for MVP rankMVP
    Apr 19, 2020

    Hello Vasim,



    Please check if you are able to telnet virtual server on port 80 first. Also can you please share complete configuration of VS?



    Mayur

    • Vasim's avatar
      Vasim
      Icon for Altocumulus rankAltocumulus
      Apr 20, 2020

      Hi Mayur,



      Thanks for your reply



      Problem gets solved by selecting Auto Map in SNAT menu..



      None i am able to reach 192.168.1.177 through local PC browser
