iApps tempate for Virtual server configurtaion

Hi,

Thanks for the information .

But my BIG-IP version is 11.2.1 and iApp template f5.http does not have all the parameters as shown above.

Can you please let me know , how to get the latest Template and upload to the device.

Hi Sukumar, Maybe someone disagrees but, unfortunately do not have the option in this template version.

But there will only be more specific templates than the basic templates.

https://devcentral.f5.com/codeshare/tag/iapps

I think for now, what you can do is looking for or clone the f5.http template and add a custom code to approach the VLAN list. I can send you the code with example if you need it.

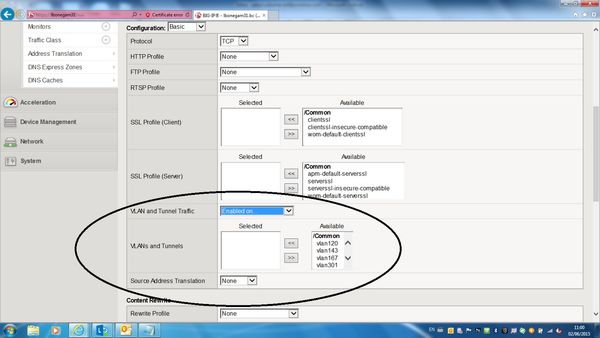

Please send the custom code to approach the VLAN list and the SNAT options (None or Automap).

I should get the following options. Also please upload the codeshare in .txt format as I am unable to open .tmpl format . You can share just the particular part of the codeshare.

Hi, sorry for delay. Here the snippet for the goals, but it takes little more than that to apply. 🙂

choice client_vlan_option default "all" display "xlarge" {
    "Enable traffic on all VLANs" => "all",
    "Yes, enable traffic only on the VLANs I specify" => "enabled",
    "Yes, disable traffic only on the VLANs I specify" => "disabled"
}
optional ( client_vlan_option != "all" ) {
    multichoice client_vlan display "large" tcl {
        tmsh::run_proc f5.app_utils:get_items net vlan
    }
}

Implementation snippet:

proc tmsh_modify_vlan { vs_name } {
    if { $::basic__client_vlan_option == "all" } {
        set vlan_name "none vlans-disabled"
    } else {
        set vlan_name "replace-all-with \{ "
        foreach name $::basic__client_vlan {
            append vlan_name $name
            append vlan_name " "
        }
        append vlan_name "\} vlans-$::basic__client_vlan_option"
    }
    tmsh_modify "/ ltm virtual" "$vs_name vlans $vlan_name"
}

I did it with "modify" to not totally change the original script. So whenever a virtual server is created, I keep that name and provide it to this proc.
