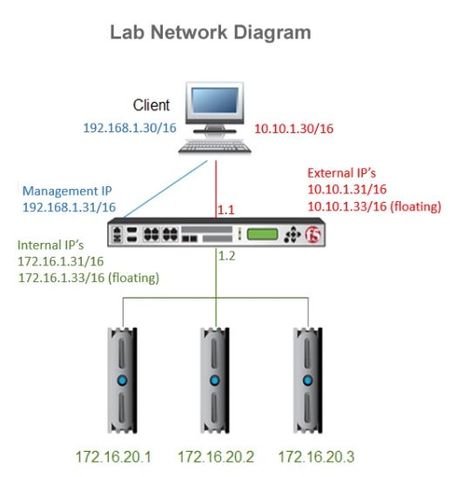

how to setup this topology using vmware on f5

  i have created a custom VMNET interface for 1.1 for external and also for interface 1.2 internal   my servers are able to reach F5 , but F5 is not able to reach servers i have already ...
application delivery
BIG-IP
LTM
IainThomson85_1's avatar
IainThomson85_1
Icon for Cumulonimbus rankCumulonimbus
Jul 05, 2016

Assuming the servers are Virtual instances aswell ?



When you say they're not able to reach the servers, have you got any evidence ? (Syn Timeouts etc)



I would recommend personally adding a SNAT address on the F5 in the 172.16.X.X Range, as if the response coming back from the server is destined for the original client - It might not be flowing back the correct route.
