How F5 monitor both Webserver on Internal and Content server on External

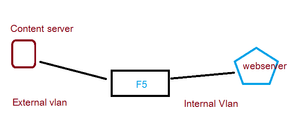

Hi   I have F5 load balance webserver which reside in Internal VLAN   At first I using monitor on Webserver but I not sure it is enough in every condition   So customer said they want F5 to ...
application delivery
availability
design
LTM
microsoft
monitor
kunjan's avatar
kunjan
Icon for Nimbostratus rankNimbostratus
May 11, 2015

If you have only one content server, you might be able to create a 2nd monitor by specifying the 'Alias Address' and 'Alias Service Port'. Then attach both to the 'Health Monitor' for the web server pool. If more than one content server it might get tricky. The better approach would be check for specific content which web server pulls from the content server.
