GTM Internal and External View configuration

Hi Team,

One of our customer requirement is to configure GTM as DNS server for both external user and internal user. Few of the records are common for both internal and external user but ip address are different. eg : abc.test2.com fqdn, 1.1.1.1 is ip address for external user and 2.2.2.2 is ip address for internal user.

This is first time we are doing such internal and external view configuration on GTM, so we tested this first on lab env. On over lab setup we created external view for test2.com with 172.16.1.1 as SOA and resource record for abc.test2.com (1.1.1.1) and created internal view for test2.com with 192.192.1.1 as SOA and resource record for abc.test2.com (2.2.2.2), we were able to create internal and external zone and resource record . But both View have both abc.test2.com (1.1.1.1) and abc.test2.com (2.2.2.2) record, also internal view SOA is overwritten with 172.16.1.1(external view IP).

Please help me how to configure internal and external view.

Below are screenshot taken from view and zone.

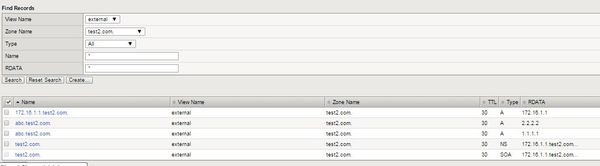

External view

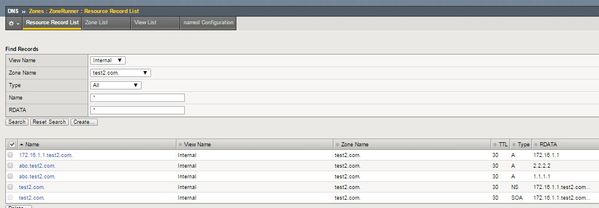

Internal view

View list

Zone list

     Thanks, Sachin
availability
BIG-IP DNS
deployment
  • Seth_Cooper's avatar
    Seth_Cooper
    Icon for Employee rankEmployee
    May 18, 2015

    Hi,



    How do you have the Views configured? Specifically what is in the "options" field in the view configuration settings?



    Seth



  • mrshaggy_169440's avatar
    mrshaggy_169440
    Icon for Nimbostratus rankNimbostratus
    Jul 10, 2015

    Hi Sachin,



    Have you resolved this issue? I face the same problem. I had examplezone.com for both internal and external view. Though it was on a different view name list, everytime I add zone record for the internal zone, the same record are also added on the external, and vice versa when i add record on external zone.



    Thanks before,



    Shaggy



    • sachin_80710's avatar
      sachin_80710
      Icon for Nimbostratus rankNimbostratus
      Jul 17, 2015
      Hi Shaggy, No, but we did workaround by using topology based gtm load balancing Thanks, Sachin
  • Kees_Smit's avatar
    Kees_Smit
    Icon for Nimbostratus rankNimbostratus
    Jan 07, 2019

    Hello Sachin,



    Assume for the topology based GTM LB you are using both external AND internal listereners.



    In that case, did you use static routes for all subnets using the internal interface, and set the default route to the external GW?



    Thx,



    Kees



  • EfrainGonzalez's avatar
    EfrainGonzalez
    Icon for Nimbostratus rankNimbostratus
    Sep 17, 2019

    Hello Sachin,



    How did you diference internal or external views on topology?, i have the same issue on a lab version 13.0.0 HF3 and 15.0.0; same issue. Did you create a case with the F5 TAC or someone else resolver the issue in zonerunner?



    Thanks



    Efrain
