I am looking for some help on F5 sync’ing options. I have opened an F5 support ticket with the below opening notes. However I thought I would reach out to the this forum as well. I wonder if this ...
We have the same problem, we have a production site in Miami, and our DR in Brasil. I have tried to setting up the trust domain with more than 2 units, but every time that we add the third we lost the trust relation between the first two. Did you get the solution to this problem? Please, what must we do?
Thanks
Hi Manuel,
do you try to setup a sync-failover device-group containing three units?
To establish device trust I would recommend to force two units into offline state.
Remove the machines from the existing sync-failover device-group (repeat on each machine if required) and delete the sync-failover device-group.
Now reset the device trust on all machines.
Next step will be to use the active machine to add both offline machines as peers.
Now all three units should show up in each machine´s device list.
On the active unit create a new device-group of type sync-failover with network failover enabled.
Add all machines to the new device-group. This will be synced to all machines and you can release them from forced offline.
Time for the initial sync now.
Thanks, Stephan
Hi Stephan,
We are trying to setup a sync-failover of four members, two in Miami that is the production environment, and two en Brasil that is the DR site. I have the same problem than Aaron, we can sync the two devices in both sites, but when we tried two create a trust domain of four devices we ran into problem. We have a sync network in both sites that is routed on MPLS, is not a connectivity problem. Once we add the third device to the trust domain, we lost the relation that we already have with the second member.
Thanks
"}},"componentScriptGroups({\"componentId\":\"custom.widget.Beta_Footer\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"component({\"componentId\":\"custom.widget.Tag_Manager_Helper\"})":{"__typename":"Component","render({\"context\":{\"component\":{\"entities\":[],\"props\":{}},\"page\":{\"entities\":[\"board:TechnicalForum\",\"message:146623\"],\"name\":\"ForumReplyPage\",\"props\":{},\"url\":\"https://community.f5.com/discussions/technicalforum/f5-sync-options/146623/replies/146629\"}}})":{"__typename":"ComponentRenderResult","html":" "}},"componentScriptGroups({\"componentId\":\"custom.widget.Tag_Manager_Helper\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"component({\"componentId\":\"custom.widget.Consent_Blackbar\"})":{"__typename":"Component","render({\"context\":{\"component\":{\"entities\":[],\"props\":{}},\"page\":{\"entities\":[\"board:TechnicalForum\",\"message:146623\"],\"name\":\"ForumReplyPage\",\"props\":{},\"url\":\"https://community.f5.com/discussions/technicalforum/f5-sync-options/146623/replies/146629\"}}})":{"__typename":"ComponentRenderResult","html":""}},"componentScriptGroups({\"componentId\":\"custom.widget.Consent_Blackbar\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/community/NavbarDropdownToggle\"]})":[{"__ref":"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/EscalatedMessageBanner\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/EscalatedMessageBanner-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/users/UserLink\"]})":[{"__ref":"CachedAsset:text:en_US-components/users/UserLink-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserRank\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserRank-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageTime\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageTime-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageSolvedBadge\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageSolvedBadge-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageSubject\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageSubject-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageBody\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageBody-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageCustomFields\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageCustomFields-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageReplyButton\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageReplyButton-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageView/MessageViewInline\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageView/MessageViewInline-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/common/Pager/PagerLoadMore\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/common/Pager/PagerLoadMore-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/customComponent/CustomComponent\"]})":[{"__ref":"CachedAsset:text:en_US-components/customComponent/CustomComponent-1743097588266"}],"message({\"id\":\"message:146623\"})":{"__ref":"ForumTopicMessage:message:146623"},"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/ranks/UserRankLabel\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/AcceptedSolutionButton\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/AcceptedSolutionButton-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/ThreadedReplyList\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/ThreadedReplyList-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeIcon\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1743097588266"}],"cachedText({\"lastModified\":\"1743097588266\",\"locale\":\"en-US\",\"namespaces\":[\"components/tags/TagView/TagViewChip\"]})":[{"__ref":"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1743097588266"}],"message({\"id\":\"message:146630\"})":{"__ref":"ForumReplyMessage:message:146630"},"message({\"id\":\"message:146632\"})":{"__ref":"ForumReplyMessage:message:146632"}},"CachedAsset:pages-1742465021554":{"__typename":"CachedAsset","id":"pages-1742465021554","value":[{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.MvpProgram","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/mvp-program","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogViewAllPostsPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId/all-posts/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CasePortalPage","type":"CASE_PORTAL","urlPath":"/caseportal","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CreateGroupHubPage","type":"GROUP_HUB","urlPath":"/groups/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CaseViewPage","type":"CASE_DETAILS","urlPath":"/case/:caseId/:caseNumber","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"InboxPage","type":"COMMUNITY","urlPath":"/inbox","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.AdvocacyProgram","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/advocacy-program","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp.NonCustomer","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/non-customer","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HelpFAQPage","type":"COMMUNITY","urlPath":"/help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp.F5Customer","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/f5-customer","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaMessagePage","type":"IDEA_POST","urlPath":"/idea/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaViewAllIdeasPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/all-ideas/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"LoginPage","type":"USER","urlPath":"/signin","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogPostPage","type":"BLOG","urlPath":"/category/:categoryId/blogs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetInvolved","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.Learn","type":"COMMUNITY","urlPath":"/c/how-do-i/learn","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1739501996000,"localOverride":null,"page":{"id":"Test","type":"CUSTOM","urlPath":"/custom-test-2","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ThemeEditorPage","type":"COMMUNITY","urlPath":"/designer/themes","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbViewAllArticlesPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId/all-articles/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"OccasionEditPage","type":"EVENT","urlPath":"/event/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"OAuthAuthorizationAllowPage","type":"USER","urlPath":"/auth/authorize/allow","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"PageEditorPage","type":"COMMUNITY","urlPath":"/designer/pages","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"PostPage","type":"COMMUNITY","urlPath":"/category/:categoryId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumBoardPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbBoardPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"EventPostPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"UserBadgesPage","type":"COMMUNITY","urlPath":"/users/:login/:userId/badges","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"GroupHubMembershipAction","type":"GROUP_HUB","urlPath":"/membership/join/:nodeId/:membershipType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"MaintenancePage","type":"COMMUNITY","urlPath":"/maintenance","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaReplyPage","type":"IDEA_REPLY","urlPath":"/idea/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"UserSettingsPage","type":"USER","urlPath":"/mysettings/:userSettingsTab","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"GroupHubsPage","type":"GROUP_HUB","urlPath":"/groups","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumPostPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"OccasionRsvpActionPage","type":"OCCASION","urlPath":"/event/:boardId/:messageSubject/:messageId/rsvp/:responseType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"VerifyUserEmailPage","type":"USER","urlPath":"/verifyemail/:userId/:verifyEmailToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"AllOccasionsPage","type":"OCCASION","urlPath":"/category/:categoryId/events/:boardId/all-events/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"EventBoardPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbReplyPage","type":"TKB_REPLY","urlPath":"/kb/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaBoardPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CommunityGuideLinesPage","type":"COMMUNITY","urlPath":"/communityguidelines","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CaseCreatePage","type":"SALESFORCE_CASE_CREATION","urlPath":"/caseportal/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbEditPage","type":"TKB","urlPath":"/kb/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForgotPasswordPage","type":"USER","urlPath":"/forgotpassword","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaEditPage","type":"IDEA","urlPath":"/idea/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TagPage","type":"COMMUNITY","urlPath":"/tag/:tagName","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogBoardPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"OccasionMessagePage","type":"OCCASION_TOPIC","urlPath":"/event/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ManageContentPage","type":"COMMUNITY","urlPath":"/managecontent","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ClosedMembershipNodeNonMembersPage","type":"GROUP_HUB","urlPath":"/closedgroup/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp.Community","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/community","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CommunityPage","type":"COMMUNITY","urlPath":"/","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetInvolved.ContributeCode","type":"COMMUNITY","urlPath":"/c/how-do-i/get-involved/contribute-code","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumMessagePage","type":"FORUM_TOPIC","urlPath":"/discussions/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"IdeaPostPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogMessagePage","type":"BLOG_ARTICLE","urlPath":"/blog/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"RegistrationPage","type":"USER","urlPath":"/register","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"EditGroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumEditPage","type":"FORUM","urlPath":"/discussions/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ResetPasswordPage","type":"USER","urlPath":"/resetpassword/:userId/:resetPasswordToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbMessagePage","type":"TKB_ARTICLE","urlPath":"/kb/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.Learn.AboutIrules","type":"COMMUNITY","urlPath":"/c/how-do-i/learn/about-irules","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogEditPage","type":"BLOG","urlPath":"/blog/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp.F5Support","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/f5-support","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ManageUsersPage","type":"USER","urlPath":"/users/manage/:tab?/:manageUsersTab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumReplyPage","type":"FORUM_REPLY","urlPath":"/discussions/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"PrivacyPolicyPage","type":"COMMUNITY","urlPath":"/privacypolicy","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"NotificationPage","type":"COMMUNITY","urlPath":"/notifications","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"UserPage","type":"USER","urlPath":"/users/:login/:userId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HealthCheckPage","type":"COMMUNITY","urlPath":"/health","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"OccasionReplyPage","type":"OCCASION_REPLY","urlPath":"/event/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ManageMembersPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/manage/:tab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"SearchResultsPage","type":"COMMUNITY","urlPath":"/search","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"BlogReplyPage","type":"BLOG_REPLY","urlPath":"/blog/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"GroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TermsOfServicePage","type":"COMMUNITY","urlPath":"/termsofservice","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI.GetHelp.SecurityIncident","type":"COMMUNITY","urlPath":"/c/how-do-i/get-help/security-incident","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"CategoryPage","type":"CATEGORY","urlPath":"/category/:categoryId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"ForumViewAllTopicsPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/all-topics/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"TkbPostPage","type":"TKB","urlPath":"/category/:categoryId/kbs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"GroupHubPostPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1742465021554,"localOverride":null,"page":{"id":"HowDoI","type":"COMMUNITY","urlPath":"/c/how-do-i","__typename":"PageDescriptor"},"__typename":"PageResource"}],"localOverride":false},"CachedAsset:text:en_US-components/context/AppContext/AppContextProvider-0":{"__typename":"CachedAsset","id":"text:en_US-components/context/AppContext/AppContextProvider-0","value":{"noCommunity":"Cannot find community","noUser":"Cannot find current user","noNode":"Cannot find node with id {nodeId}","noMessage":"Cannot find message with id {messageId}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-0":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-0","value":{"title":"Loading..."},"localOverride":false},"User:user:-1":{"__typename":"User","id":"user:-1","uid":-1,"login":"Former Member","email":"","avatar":null,"rank":null,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":"ANONYMOUS","registrationTime":null,"confirmEmailStatus":false,"registrationAccessLevel":"VIEW","ssoRegistrationFields":[]},"ssoId":null,"profileSettings":{"__typename":"ProfileSettings","dateDisplayStyle":{"__typename":"InheritableStringSettingWithPossibleValues","key":"layout.friendly_dates_enabled","value":"false","localValue":"true","possibleValues":["true","false"]},"dateDisplayFormat":{"__typename":"InheritableStringSetting","key":"layout.format_pattern_date","value":"dd-MMM-yyyy","localValue":"MM-dd-yyyy"},"language":{"__typename":"InheritableStringSettingWithPossibleValues","key":"profile.language","value":"en-US","localValue":null,"possibleValues":["en-US"]}},"deleted":false},"Theme:customTheme1":{"__typename":"Theme","id":"customTheme1"},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bi0zMS0yaUY5MjM3RDI3NzVEQzI1M0U\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bi0zMS0yaUY5MjM3RDI3NzVEQzI1M0U","mimeType":"image/png"},"Category:category:Forums":{"__typename":"Category","id":"category:Forums","entityType":"CATEGORY","displayId":"Forums","nodeType":"category","depth":1,"title":"Forums","shortTitle":"Forums","parent":{"__ref":"Category:category:top"},"categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:top":{"__typename":"Category","id":"category:top","displayId":"top","nodeType":"category","depth":0,"title":"Top","entityType":"CATEGORY","shortTitle":"Top"},"Forum:board:TechnicalForum":{"__typename":"Forum","id":"board:TechnicalForum","entityType":"FORUM","displayId":"TechnicalForum","nodeType":"board","depth":2,"conversationStyle":"FORUM","title":"Technical Forum","description":"Ask questions.\r\nDiscover Answers.","avatar":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bi0zMS0yaUY5MjM3RDI3NzVEQzI1M0U\"}"},"profileSettings":{"__typename":"ProfileSettings","language":null},"parent":{"__ref":"Category:category:Forums"},"ancestors":{"__typename":"CoreNodeConnection","edges":[{"__typename":"CoreNodeEdge","node":{"__ref":"Community:community:zihoc95639"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:Forums"}}]},"userContext":{"__typename":"NodeUserContext","canAddAttachments":false,"canUpdateNode":false,"canPostMessages":false,"isSubscribed":false},"boardPolicies":{"__typename":"BoardPolicies","canPublishArticleOnCreate":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","args":[]}},"canReadNode":{"__typename":"PolicyResult","failureReason":null}},"shortTitle":"Technical Forum","repliesProperties":{"__typename":"RepliesProperties","sortOrder":"PUBLISH_TIME","repliesFormat":"threaded"},"forumPolicies":{"__typename":"ForumPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"tagProperties":{"__typename":"TagNodeProperties","tagsEnabled":{"__typename":"PolicyResult","failureReason":null}},"requireTags":true,"tagType":"FREEFORM_AND_PRESET","eventPath":"category:Forums/community:zihoc95639board:TechnicalForum/"},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstNDEtSzFzVEth\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/cmstNDEtSzFzVEth","height":0,"width":0,"mimeType":"image/svg+xml"},"Rank:rank:41":{"__typename":"Rank","id":"rank:41","position":18,"name":"Nimbostratus","color":"CCCCCC","icon":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstNDEtSzFzVEth\"}"},"rankStyle":"FILLED"},"User:user:416553":{"__typename":"User","id":"user:416553","uid":416553,"login":"Aaron_33366","deleted":false,"avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/m_assets/avatars/default/avatar-9.svg?time=0"},"rank":{"__ref":"Rank:rank:41"},"email":"","messagesCount":13,"biography":null,"topicsCount":2,"kudosReceivedCount":0,"kudosGivenCount":0,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2010-02-24T00:00:00.000-08:00","confirmEmailStatus":null},"followersCount":null,"solutionsCount":0},"ForumTopicMessage:message:146623":{"__typename":"ForumTopicMessage","uid":146623,"subject":"F5 sync options","id":"message:146623","revisionNum":1,"repliesCount":16,"author":{"__ref":"User:user:416553"},"depth":0,"hasGivenKudo":false,"board":{"__ref":"Forum:board:TechnicalForum"},"conversation":{"__ref":"Conversation:conversation:146623"},"readOnly":false,"editFrozen":false,"moderationData":{"__ref":"ModerationData:moderation_data:146623"},"body@stripHtml({\"truncateLength\":200})":" I am looking for some help on F5 sync’ing options. I have opened an F5 support ticket with the below opening notes. However I thought I would reach out to the this forum as well. I wonder if this ...","body@stringLength":"2356","rawBody":"
I am looking for some help on F5 sync’ing options. I have opened an F5 support ticket with the below opening notes. However I thought I would reach out to the this forum as well. I wonder if this is even possible?
\n
---F5 opening case notes---
\n

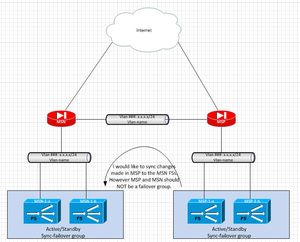

I have some questions about config syncing on the F5s that I would like to discuss. We currently have 2 F5s in an active/standby failover config in our Minneapolis (MSP) location and we also have 2 F5s in the same setup in our Madison (MSN) location. The MSP location is production location and the MSN is our DR location. I would like to take the config that we have on our MSP location and sync it to the MSN F5s. However I don’t want the MSP and the MSN devices to be a failover group. I believe this is possible but I wanted to discuss this with F5 support. We already have the active/standby sync-failover group created in MSP and in MSN so that we have device redundancy in each location. What I believe we need to do now is to add all 4 devices to the trust list and then create a sync-only group and this will allow us to manually sync our config from MSP to MSN.
\n
---End F5 opening case notes---
\n
I have found some links that sort of show this as being possible.
I am looking for some help on F5 sync’ing options. I have opened an F5 support ticket with the below opening notes. However I thought I would reach out to the this forum as well. I wonder if this is even possible?
\n
---F5 opening case notes---
\n
I have some questions about config syncing on the F5s that I would like to discuss. We currently have 2 F5s in an active/standby failover config in our Minneapolis (MSP) location and we also have 2 F5s in the same setup in our Madison (MSN) location. The MSP location is production location and the MSN is our DR location. I would like to take the config that we have on our MSP location and sync it to the MSN F5s. However I don’t want the MSP and the MSN devices to be a failover group. I believe this is possible but I wanted to discuss this with F5 support. We already have the active/standby sync-failover group created in MSP and in MSN so that we have device redundancy in each location. What I believe we need to do now is to add all 4 devices to the trust list and then create a sync-only group and this will allow us to manually sync our config from MSP to MSN.
\n
---End F5 opening case notes---
\n
I have found some links that sort of show this as being possible.
We have the same problem, we have a production site in Miami, and our DR in Brasil. I have tried to setting up the trust domain with more than 2 units, but every time that we add the third we lost the trust relation between the first two. Did you get the solution to this problem? Please, what must we do?\nThanks
","body@stringLength":"365","rawBody":"
Hello Aaron,
\n
We have the same problem, we have a production site in Miami, and our DR in Brasil. I have tried to setting up the trust domain with more than 2 units, but every time that we add the third we lost the trust relation between the first two. Did you get the solution to this problem? Please, what must we do?\nThanks
","kudosSumWeight":0,"repliesCount":2,"postTime":"2016-03-25T08:16:09.000-07:00","images":{"__typename":"AssociatedImageConnection","edges":[],"totalCount":0,"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"attachments":{"__typename":"AttachmentConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"timeToRead":1,"currentRevision":{"__ref":"Revision:revision:146629_1"},"latestVersion":null,"metrics":{"__typename":"MessageMetrics","views":1055},"visibilityScope":"PUBLIC","isEscalated":null,"placeholder":false,"originalMessageForPlaceholder":null,"messagePolicies":{"__typename":"MessagePolicies","canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}},"customFields":[],"replies":{"__typename":"MessageConnection","edges":[{"__typename":"MessageEdge","cursor":"MjUuMnwyLjF8aXwxMHwzOToxfGludCwxNDY2MzAsMTQ2NjMw","node":{"__ref":"ForumReplyMessage:message:146630"}},{"__typename":"MessageEdge","cursor":"MjUuMnwyLjF8aXwxMHwzOToxfGludCwxNDY2MzAsMTQ2NjMy","node":{"__ref":"ForumReplyMessage:message:146632"}}],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"CachedAsset:theme:customTheme1-1742465021066":{"__typename":"CachedAsset","id":"theme:customTheme1-1742465021066","value":{"id":"customTheme1","animation":{"fast":"150ms","normal":"250ms","slow":"500ms","slowest":"750ms","function":"cubic-bezier(0.07, 0.91, 0.51, 1)","__typename":"AnimationThemeSettings"},"avatar":{"borderRadius":"50%","collections":["custom"],"__typename":"AvatarThemeSettings"},"basics":{"browserIcon":{"imageAssetName":"JimmyPackets-512-1702592938213.png","imageLastModified":"1702592945815","__typename":"ThemeAsset"},"customerLogo":{"imageAssetName":"f5_logo_fix-1704824537976.svg","imageLastModified":"1704824540697","__typename":"ThemeAsset"},"maximumWidthOfPageContent":"1600px","oneColumnNarrowWidth":"800px","gridGutterWidthMd":"30px","gridGutterWidthXs":"10px","pageWidthStyle":"WIDTH_OF_PAGE_CONTENT","__typename":"BasicsThemeSettings"},"buttons":{"borderRadiusSm":"5px","borderRadius":"5px","borderRadiusLg":"5px","paddingY":"5px","paddingYLg":"7px","paddingYHero":"var(--lia-bs-btn-padding-y-lg)","paddingX":"12px","paddingXLg":"14px","paddingXHero":"42px","fontStyle":"NORMAL","fontWeight":"400","textTransform":"NONE","disabledOpacity":0.5,"primaryTextColor":"var(--lia-bs-white)","primaryTextHoverColor":"var(--lia-bs-white)","primaryTextActiveColor":"var(--lia-bs-white)","primaryBgColor":"var(--lia-bs-primary)","primaryBgHoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.85))","primaryBgActiveColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.7))","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","primaryBorderActive":"1px solid transparent","primaryBorderFocus":"1px solid var(--lia-bs-white)","primaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","secondaryTextColor":"var(--lia-bs-gray-900)","secondaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","secondaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","secondaryBgColor":"var(--lia-bs-gray-400)","secondaryBgHoverColor":"hsl(var(--lia-bs-gray-400-h), var(--lia-bs-gray-400-s), calc(var(--lia-bs-gray-400-l) * 0.96))","secondaryBgActiveColor":"hsl(var(--lia-bs-gray-400-h), var(--lia-bs-gray-400-s), calc(var(--lia-bs-gray-400-l) * 0.92))","secondaryBorder":"1px solid transparent","secondaryBorderHover":"1px solid transparent","secondaryBorderActive":"1px solid transparent","secondaryBorderFocus":"1px solid transparent","secondaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","tertiaryTextColor":"var(--lia-bs-gray-900)","tertiaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","tertiaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","tertiaryBgColor":"transparent","tertiaryBgHoverColor":"transparent","tertiaryBgActiveColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.04)","tertiaryBorder":"1px solid transparent","tertiaryBorderHover":"1px solid hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","tertiaryBorderActive":"1px solid transparent","tertiaryBorderFocus":"1px solid transparent","tertiaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","destructiveTextColor":"var(--lia-bs-danger)","destructiveTextHoverColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.95))","destructiveTextActiveColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.9))","destructiveBgColor":"var(--lia-bs-gray-300)","destructiveBgHoverColor":"hsl(var(--lia-bs-gray-300-h), var(--lia-bs-gray-300-s), calc(var(--lia-bs-gray-300-l) * 0.96))","destructiveBgActiveColor":"hsl(var(--lia-bs-gray-300-h), var(--lia-bs-gray-300-s), calc(var(--lia-bs-gray-300-l) * 0.92))","destructiveBorder":"1px solid transparent","destructiveBorderHover":"1px solid transparent","destructiveBorderActive":"1px solid transparent","destructiveBorderFocus":"1px solid transparent","destructiveBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","__typename":"ButtonsThemeSettings"},"border":{"color":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","mainContent":"NONE","sideContent":"NONE","radiusSm":"3px","radius":"5px","radiusLg":"9px","radius50":"100vw","__typename":"BorderThemeSettings"},"boxShadow":{"xs":"0 0 0 1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08), 0 3px 0 -1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08)","sm":"0 2px 4px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.06)","md":"0 5px 15px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.15)","lg":"0 10px 30px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.15)","__typename":"BoxShadowThemeSettings"},"cards":{"bgColor":"var(--lia-panel-bg-color)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":"var(--lia-box-shadow-xs)","__typename":"CardsThemeSettings"},"chip":{"maxWidth":"300px","height":"30px","__typename":"ChipThemeSettings"},"coreTypes":{"defaultMessageLinkColor":"var(--lia-bs-primary)","defaultMessageLinkDecoration":"none","defaultMessageLinkFontStyle":"NORMAL","defaultMessageLinkFontWeight":"400","defaultMessageFontStyle":"NORMAL","defaultMessageFontWeight":"400","forumColor":"#0C5C8D","forumFontFamily":"var(--lia-bs-font-family-base)","forumFontWeight":"var(--lia-default-message-font-weight)","forumLineHeight":"var(--lia-bs-line-height-base)","forumFontStyle":"var(--lia-default-message-font-style)","forumMessageLinkColor":"var(--lia-default-message-link-color)","forumMessageLinkDecoration":"var(--lia-default-message-link-decoration)","forumMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","forumMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","forumSolvedColor":"#62C026","blogColor":"#730015","blogFontFamily":"var(--lia-bs-font-family-base)","blogFontWeight":"var(--lia-default-message-font-weight)","blogLineHeight":"1.75","blogFontStyle":"var(--lia-default-message-font-style)","blogMessageLinkColor":"var(--lia-default-message-link-color)","blogMessageLinkDecoration":"var(--lia-default-message-link-decoration)","blogMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","blogMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","tkbColor":"#C20025","tkbFontFamily":"var(--lia-bs-font-family-base)","tkbFontWeight":"var(--lia-default-message-font-weight)","tkbLineHeight":"1.75","tkbFontStyle":"var(--lia-default-message-font-style)","tkbMessageLinkColor":"var(--lia-default-message-link-color)","tkbMessageLinkDecoration":"var(--lia-default-message-link-decoration)","tkbMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","tkbMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaColor":"#4099E2","qandaFontFamily":"var(--lia-bs-font-family-base)","qandaFontWeight":"var(--lia-default-message-font-weight)","qandaLineHeight":"var(--lia-bs-line-height-base)","qandaFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkColor":"var(--lia-default-message-link-color)","qandaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","qandaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaSolvedColor":"#3FA023","ideaColor":"#F3704B","ideaFontFamily":"var(--lia-bs-font-family-base)","ideaFontWeight":"var(--lia-default-message-font-weight)","ideaLineHeight":"var(--lia-bs-line-height-base)","ideaFontStyle":"var(--lia-default-message-font-style)","ideaMessageLinkColor":"var(--lia-default-message-link-color)","ideaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","ideaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","ideaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","contestColor":"#FCC845","contestFontFamily":"var(--lia-bs-font-family-base)","contestFontWeight":"var(--lia-default-message-font-weight)","contestLineHeight":"var(--lia-bs-line-height-base)","contestFontStyle":"var(--lia-default-message-link-font-style)","contestMessageLinkColor":"var(--lia-default-message-link-color)","contestMessageLinkDecoration":"var(--lia-default-message-link-decoration)","contestMessageLinkFontStyle":"ITALIC","contestMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","occasionColor":"#EE4B5B","occasionFontFamily":"var(--lia-bs-font-family-base)","occasionFontWeight":"var(--lia-default-message-font-weight)","occasionLineHeight":"var(--lia-bs-line-height-base)","occasionFontStyle":"var(--lia-default-message-font-style)","occasionMessageLinkColor":"var(--lia-default-message-link-color)","occasionMessageLinkDecoration":"var(--lia-default-message-link-decoration)","occasionMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","occasionMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","grouphubColor":"#491B62","categoryColor":"#949494","communityColor":"#FFFFFF","productColor":"#949494","__typename":"CoreTypesThemeSettings"},"colors":{"black":"#000000","white":"#FFFFFF","gray100":"#F7F7F7","gray200":"#F7F7F7","gray300":"#E8E8E8","gray400":"#D9D9D9","gray500":"#CCCCCC","gray600":"#949494","gray700":"#707070","gray800":"#545454","gray900":"#333333","dark":"#545454","light":"#F7F7F7","primary":"#0C5C8D","secondary":"#333333","bodyText":"#222222","bodyBg":"#F5F5F5","info":"#1D9CD3","success":"#62C026","warning":"#FFD651","danger":"#C20025","alertSystem":"#FF6600","textMuted":"#707070","highlight":"#FFFCAD","outline":"var(--lia-bs-primary)","custom":["#C20025","#081B85","#009639","#B3C6D7","#7CC0EB","#F29A36"],"__typename":"ColorsThemeSettings"},"divider":{"size":"3px","marginLeft":"4px","marginRight":"4px","borderRadius":"50%","bgColor":"var(--lia-bs-gray-600)","bgColorActive":"var(--lia-bs-gray-600)","__typename":"DividerThemeSettings"},"dropdown":{"fontSize":"var(--lia-bs-font-size-sm)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius-sm)","dividerBg":"var(--lia-bs-gray-300)","itemPaddingY":"5px","itemPaddingX":"20px","headerColor":"var(--lia-bs-gray-700)","__typename":"DropdownThemeSettings"},"email":{"link":{"color":"#0069D4","hoverColor":"#0061c2","decoration":"none","hoverDecoration":"underline","__typename":"EmailLinkSettings"},"border":{"color":"#e4e4e4","__typename":"EmailBorderSettings"},"buttons":{"borderRadiusLg":"5px","paddingXLg":"16px","paddingYLg":"7px","fontWeight":"700","primaryTextColor":"#ffffff","primaryTextHoverColor":"#ffffff","primaryBgColor":"#0069D4","primaryBgHoverColor":"#005cb8","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","__typename":"EmailButtonsSettings"},"panel":{"borderRadius":"5px","borderColor":"#e4e4e4","__typename":"EmailPanelSettings"},"__typename":"EmailThemeSettings"},"emoji":{"skinToneDefault":"#ffcd43","skinToneLight":"#fae3c5","skinToneMediumLight":"#e2cfa5","skinToneMedium":"#daa478","skinToneMediumDark":"#a78058","skinToneDark":"#5e4d43","__typename":"EmojiThemeSettings"},"heading":{"color":"var(--lia-bs-body-color)","fontFamily":"Inter","fontStyle":"NORMAL","fontWeight":"600","h1FontSize":"30px","h2FontSize":"25px","h3FontSize":"20px","h4FontSize":"18px","h5FontSize":"16px","h6FontSize":"16px","lineHeight":"1.2","subHeaderFontSize":"11px","subHeaderFontWeight":"500","h1LetterSpacing":"normal","h2LetterSpacing":"normal","h3LetterSpacing":"normal","h4LetterSpacing":"normal","h5LetterSpacing":"normal","h6LetterSpacing":"normal","subHeaderLetterSpacing":"2px","h1FontWeight":"var(--lia-bs-headings-font-weight)","h2FontWeight":"var(--lia-bs-headings-font-weight)","h3FontWeight":"var(--lia-bs-headings-font-weight)","h4FontWeight":"var(--lia-bs-headings-font-weight)","h5FontWeight":"var(--lia-bs-headings-font-weight)","h6FontWeight":"var(--lia-bs-headings-font-weight)","__typename":"HeadingThemeSettings"},"icons":{"size10":"10px","size12":"12px","size14":"14px","size16":"16px","size20":"20px","size24":"24px","size30":"30px","size40":"40px","size50":"50px","size60":"60px","size80":"80px","size120":"120px","size160":"160px","__typename":"IconsThemeSettings"},"imagePreview":{"bgColor":"var(--lia-bs-gray-900)","titleColor":"var(--lia-bs-white)","controlColor":"var(--lia-bs-white)","controlBgColor":"var(--lia-bs-gray-800)","__typename":"ImagePreviewThemeSettings"},"input":{"borderColor":"var(--lia-bs-gray-600)","disabledColor":"var(--lia-bs-gray-600)","focusBorderColor":"var(--lia-bs-primary)","labelMarginBottom":"10px","btnFontSize":"var(--lia-bs-font-size-sm)","focusBoxShadow":"0 0 0 3px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","checkLabelMarginBottom":"2px","checkboxBorderRadius":"3px","borderRadiusSm":"var(--lia-bs-border-radius-sm)","borderRadius":"var(--lia-bs-border-radius)","borderRadiusLg":"var(--lia-bs-border-radius-lg)","formTextMarginTop":"4px","textAreaBorderRadius":"var(--lia-bs-border-radius)","activeFillColor":"var(--lia-bs-primary)","__typename":"InputThemeSettings"},"loading":{"dotDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.2)","dotLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.5)","barDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.06)","barLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.4)","__typename":"LoadingThemeSettings"},"link":{"color":"var(--lia-bs-primary)","hoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) - 10%))","decoration":"none","hoverDecoration":"underline","__typename":"LinkThemeSettings"},"listGroup":{"itemPaddingY":"15px","itemPaddingX":"15px","borderColor":"var(--lia-bs-gray-300)","__typename":"ListGroupThemeSettings"},"modal":{"contentTextColor":"var(--lia-bs-body-color)","contentBg":"var(--lia-bs-white)","backgroundBg":"var(--lia-bs-black)","smSize":"440px","mdSize":"760px","lgSize":"1080px","backdropOpacity":0.3,"contentBoxShadowXs":"var(--lia-bs-box-shadow-sm)","contentBoxShadow":"var(--lia-bs-box-shadow)","headerFontWeight":"700","__typename":"ModalThemeSettings"},"navbar":{"position":"FIXED","background":{"attachment":null,"clip":null,"color":"var(--lia-bs-white)","imageAssetName":null,"imageLastModified":"0","origin":null,"position":"CENTER_CENTER","repeat":"NO_REPEAT","size":"COVER","__typename":"BackgroundProps"},"backgroundOpacity":0.8,"paddingTop":"15px","paddingBottom":"15px","borderBottom":"1px solid var(--lia-bs-border-color)","boxShadow":"var(--lia-bs-box-shadow-sm)","brandMarginRight":"30px","brandMarginRightSm":"10px","brandLogoHeight":"30px","linkGap":"10px","linkJustifyContent":"flex-start","linkPaddingY":"5px","linkPaddingX":"10px","linkDropdownPaddingY":"9px","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkColor":"var(--lia-bs-body-color)","linkHoverColor":"var(--lia-bs-primary)","linkFontSize":"var(--lia-bs-font-size-sm)","linkFontStyle":"NORMAL","linkFontWeight":"400","linkTextTransform":"NONE","linkLetterSpacing":"normal","linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkBgColor":"transparent","linkBgHoverColor":"transparent","linkBorder":"none","linkBorderHover":"none","linkBoxShadow":"none","linkBoxShadowHover":"none","linkTextBorderBottom":"none","linkTextBorderBottomHover":"none","dropdownPaddingTop":"10px","dropdownPaddingBottom":"15px","dropdownPaddingX":"10px","dropdownMenuOffset":"2px","dropdownDividerMarginTop":"10px","dropdownDividerMarginBottom":"10px","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","controllerIconColor":"var(--lia-bs-body-color)","controllerIconHoverColor":"var(--lia-bs-body-color)","controllerTextColor":"var(--lia-nav-controller-icon-color)","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","controllerHighlightColor":"hsla(30, 100%, 50%)","controllerHighlightTextColor":"var(--lia-yiq-light)","controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerColor":"var(--lia-nav-controller-icon-color)","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","hamburgerBgColor":"transparent","hamburgerBgHoverColor":"transparent","hamburgerBorder":"none","hamburgerBorderHover":"none","collapseMenuMarginLeft":"20px","collapseMenuDividerBg":"var(--lia-nav-link-color)","collapseMenuDividerOpacity":0.16,"__typename":"NavbarThemeSettings"},"pager":{"textColor":"var(--lia-bs-link-color)","textFontWeight":"var(--lia-font-weight-md)","textFontSize":"var(--lia-bs-font-size-sm)","__typename":"PagerThemeSettings"},"panel":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-bs-border-radius)","borderColor":"var(--lia-bs-border-color)","boxShadow":"none","__typename":"PanelThemeSettings"},"popover":{"arrowHeight":"8px","arrowWidth":"16px","maxWidth":"300px","minWidth":"100px","headerBg":"var(--lia-bs-white)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius)","boxShadow":"0 0.5rem 1rem hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.15)","__typename":"PopoverThemeSettings"},"prism":{"color":"#000000","bgColor":"#f5f2f0","fontFamily":"var(--font-family-monospace)","fontSize":"var(--lia-bs-font-size-base)","fontWeightBold":"var(--lia-bs-font-weight-bold)","fontStyleItalic":"italic","tabSize":2,"highlightColor":"#b3d4fc","commentColor":"#62707e","punctuationColor":"#6f6f6f","namespaceOpacity":"0.7","propColor":"#990055","selectorColor":"#517a00","operatorColor":"#906736","operatorBgColor":"hsla(0, 0%, 100%, 0.5)","keywordColor":"#0076a9","functionColor":"#d3284b","variableColor":"#c14700","__typename":"PrismThemeSettings"},"rte":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":" var(--lia-panel-box-shadow)","customColor1":"#bfedd2","customColor2":"#fbeeb8","customColor3":"#f8cac6","customColor4":"#eccafa","customColor5":"#c2e0f4","customColor6":"#2dc26b","customColor7":"#f1c40f","customColor8":"#e03e2d","customColor9":"#b96ad9","customColor10":"#3598db","customColor11":"#169179","customColor12":"#e67e23","customColor13":"#ba372a","customColor14":"#843fa1","customColor15":"#236fa1","customColor16":"#ecf0f1","customColor17":"#ced4d9","customColor18":"#95a5a6","customColor19":"#7e8c8d","customColor20":"#34495e","customColor21":"#000000","customColor22":"#ffffff","defaultMessageHeaderMarginTop":"14px","defaultMessageHeaderMarginBottom":"10px","defaultMessageItemMarginTop":"0","defaultMessageItemMarginBottom":"10px","diffAddedColor":"hsla(170, 53%, 51%, 0.4)","diffChangedColor":"hsla(43, 97%, 63%, 0.4)","diffNoneColor":"hsla(0, 0%, 80%, 0.4)","diffRemovedColor":"hsla(9, 74%, 47%, 0.4)","specialMessageHeaderMarginTop":"14px","specialMessageHeaderMarginBottom":"10px","specialMessageItemMarginTop":"0","specialMessageItemMarginBottom":"10px","__typename":"RteThemeSettings"},"tags":{"bgColor":"var(--lia-bs-gray-200)","bgHoverColor":"var(--lia-bs-gray-400)","borderRadius":"var(--lia-bs-border-radius-sm)","color":"var(--lia-bs-body-color)","hoverColor":"var(--lia-bs-body-color)","fontWeight":"var(--lia-font-weight-md)","fontSize":"var(--lia-font-size-xxs)","textTransform":"UPPERCASE","letterSpacing":"0.5px","__typename":"TagsThemeSettings"},"toasts":{"borderRadius":"var(--lia-bs-border-radius)","paddingX":"12px","__typename":"ToastsThemeSettings"},"typography":{"fontFamilyBase":"Atkinson Hyperlegible","fontStyleBase":"NORMAL","fontWeightBase":"400","fontWeightLight":"300","fontWeightNormal":"400","fontWeightMd":"500","fontWeightBold":"700","letterSpacingSm":"normal","letterSpacingXs":"normal","lineHeightBase":"1.3","fontSizeBase":"15px","fontSizeXxs":"11px","fontSizeXs":"12px","fontSizeSm":"13px","fontSizeLg":"20px","fontSizeXl":"24px","smallFontSize":"14px","customFonts":[],"__typename":"TypographyThemeSettings"},"unstyledListItem":{"marginBottomSm":"5px","marginBottomMd":"10px","marginBottomLg":"15px","marginBottomXl":"20px","marginBottomXxl":"25px","__typename":"UnstyledListItemThemeSettings"},"yiq":{"light":"#ffffff","dark":"#000000","__typename":"YiqThemeSettings"},"colorLightness":{"primaryDark":0.36,"primaryLight":0.74,"primaryLighter":0.89,"primaryLightest":0.95,"infoDark":0.39,"infoLight":0.72,"infoLighter":0.85,"infoLightest":0.93,"successDark":0.24,"successLight":0.62,"successLighter":0.8,"successLightest":0.91,"warningDark":0.39,"warningLight":0.68,"warningLighter":0.84,"warningLightest":0.93,"dangerDark":0.41,"dangerLight":0.72,"dangerLighter":0.89,"dangerLightest":0.95,"__typename":"ColorLightnessThemeSettings"},"localOverride":false,"__typename":"Theme"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-1743097588266","value":{"title":"Loading..."},"localOverride":false},"CachedAsset:quilt:f5.prod:pages/forums/ForumMessagePage:board:TechnicalForum-1743097589993":{"__typename":"CachedAsset","id":"quilt:f5.prod:pages/forums/ForumMessagePage:board:TechnicalForum-1743097589993","value":{"id":"ForumMessagePage","container":{"id":"Common","headerProps":{"backgroundImageProps":null,"backgroundColor":null,"addComponents":null,"removeComponents":["community.widget.bannerWidget"],"componentOrder":null,"__typename":"QuiltContainerSectionProps"},"headerComponentProps":{"community.widget.breadcrumbWidget":{"disableLastCrumbForDesktop":false}},"footerProps":null,"footerComponentProps":null,"items":[{"id":"message-list","layout":"MAIN_SIDE","bgColor":null,"showTitle":null,"showDescription":null,"textPosition":null,"textColor":null,"sectionEditLevel":null,"bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"MainSideQuiltSection","columnMap":{"main":[{"id":"messages.widget.topicWithThreadedReplyListWidget","className":"lia-topic-with-replies","props":{"editLevel":"CONFIGURE"},"__typename":"QuiltComponent"}],"side":[{"id":"featuredWidgets.widget.featuredContentWidget","className":null,"props":{"instanceId":"featuredWidgets.widget.featuredContentWidget-1705956211049","layoutProps":{"layout":"card","layoutOptions":{"useRepliesCount":false,"useAuthorRank":false,"useTimeToRead":true,"useKudosCount":false,"useViewCount":false,"usePreviewMedia":true,"useBody":false,"useCenteredCardContent":false,"useTags":true,"useTimestamp":false,"useBoardLink":true,"useAuthorLink":false,"useSolvedBadge":true}},"titleSrOnly":false,"showPager":true,"pageSize":3,"lazyLoad":false},"__typename":"QuiltComponent"},{"id":"messages.widget.messageListForNodeByRecentActivityWidget","className":null,"props":{"hideIfEmpty":true,"pageSize":5,"pagerVariant":{"type":"loadMore"},"viewVariant":{"type":"inline","props":{"useRepliesCount":false,"useMedia":false,"useAuthorRank":false,"useNode":false,"boardIconSize":"24","truncateBodyLength":-1,"useNodeLink":true,"usePreviewMedia":false,"timeStampType":"conversation.lastPostingActivityTime","avatarSize":"40","useTextBody":true,"useSolvedBadge":true,"subjectAs":"h6","renderPostTimeBeforeAuthor":true,"useAvatar":false,"useTimeToRead":false,"useSpoilerFreeBody":true,"useKudosCount":false,"useViewCount":false,"useBody":false,"useTags":false,"clampSubjectLines":1,"useBoardIcon":true,"useMessageTimeLink":true,"clampBodyLines":3,"useAuthorLogin":true,"useUnreadCount":false,"useNodeHoverCard":true,"useSearchSnippet":false}},"lazyLoad":false,"listVariant":{"type":"unstyled","props":{"listItemSpacing":"xxl"}},"useTitle":true,"addTags":false,"titleContextVariant":"other","showTabs":false,"style":"compact","panelType":"standard","sorts":{"conversationLastPostingActivityTime":{"direction":"DESC"}}},"__typename":"QuiltComponent"},{"id":"messages.widget.relatedContentWidget","className":null,"props":{"hideIfEmpty":true,"enablePagination":false,"useTitle":true,"listVariant":{"type":"unstyled","props":{"listItemSpacing":"xxl"}},"pageSize":5,"style":"compact","pagerVariant":{"type":"none"},"viewVariant":{"type":"inline","props":{"useRepliesCount":false,"useMedia":false,"useAuthorRank":false,"useNode":false,"boardIconSize":"24","useAuthorLoginLink":true,"useNodeLink":true,"usePreviewMedia":true,"timeStampType":"postTime","useTextBody":true,"useSolvedBadge":false,"subjectAs":"h6","renderPostTimeBeforeAuthor":true,"useAvatar":false,"useVideoPreview":false,"portraitClampBodyLines":3,"useCompactSpacing":true,"useTimeToRead":false,"useSpoilerFreeBody":true,"useKudosCount":false,"useViewCount":false,"useBody":false,"useTags":false,"clampSubjectLines":1,"useBoardIcon":true,"useMessageTimeLink":true,"useAuthorLogin":true}},"lazyLoad":false,"panelType":"standard"},"__typename":"QuiltComponent"},{"id":"custom.widget.Community_Quicklinks","className":null,"props":{"customComponentId":"custom.widget.Community_Quicklinks"},"__typename":"QuiltComponent"}],"__typename":"MainSideSectionColumns"}}],"__typename":"QuiltContainer"},"__typename":"Quilt","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/EmailVerification-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/common/EmailVerification-1743097588266","value":{"email.verification.title":"Email Verification Required","email.verification.message.update.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. To change your email, visit My Settings.","email.verification.message.resend.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. Resend email."},"localOverride":false},"CachedAsset:text:en_US-pages/forums/ForumMessagePage-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-pages/forums/ForumMessagePage-1743097588266","value":{"title":"{contextMessageSubject} | {communityTitle}","errorMissing":"This message cannot be found","name":"Forum Message Page","section.message-list.title":"Forum Discussion","archivedMessageTitle":"This Content Has Been Archived"},"localOverride":false},"CachedAsset:quiltWrapper:f5.prod:Common:1742464897890":{"__typename":"CachedAsset","id":"quiltWrapper:f5.prod:Common:1742464897890","value":{"id":"Common","header":{"backgroundImageProps":{"assetName":"header.jpg","backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"LEFT_CENTER","lastModified":"1702932449000","__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"custom.widget.Beta_MetaNav","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"community.widget.navbarWidget","props":{"showUserName":false,"showRegisterLink":true,"style":{"boxShadow":"var(--lia-bs-box-shadow-sm)","linkFontWeight":"700","controllerHighlightColor":"hsla(30, 100%, 50%)","dropdownDividerMarginBottom":"10px","hamburgerBorderHover":"none","linkFontSize":"15px","linkBoxShadowHover":"none","backgroundOpacity":0.4,"controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerBgColor":"transparent","linkTextBorderBottom":"none","hamburgerColor":"var(--lia-nav-controller-icon-color)","brandLogoHeight":"48px","linkLetterSpacing":"normal","linkBgHoverColor":"transparent","collapseMenuDividerOpacity":0.16,"paddingBottom":"10px","dropdownPaddingBottom":"15px","dropdownMenuOffset":"2px","hamburgerBgHoverColor":"transparent","borderBottom":"0","hamburgerBorder":"none","dropdownPaddingX":"10px","brandMarginRightSm":"10px","linkBoxShadow":"none","linkJustifyContent":"center","linkColor":"var(--lia-bs-primary)","collapseMenuDividerBg":"var(--lia-nav-link-color)","dropdownPaddingTop":"10px","controllerHighlightTextColor":"var(--lia-yiq-dark)","background":{"imageAssetName":"","color":"var(--lia-bs-white)","size":"COVER","repeat":"NO_REPEAT","position":"CENTER_CENTER","imageLastModified":""},"linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkHoverColor":"var(--lia-bs-primary)","position":"FIXED","linkBorder":"none","linkTextBorderBottomHover":"2px solid #0C5C8D","brandMarginRight":"30px","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","linkBorderHover":"none","collapseMenuMarginLeft":"20px","linkFontStyle":"NORMAL","linkPaddingX":"10px","paddingTop":"10px","linkPaddingY":"5px","linkTextTransform":"NONE","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkBgColor":"transparent","linkDropdownPaddingY":"9px","controllerIconColor":"#0C5C8D","dropdownDividerMarginTop":"10px","linkGap":"10px","controllerIconHoverColor":"#0C5C8D"},"links":{"sideLinks":[],"mainLinks":[{"children":[{"linkType":"INTERNAL","id":"migrated-link-1","params":{"boardId":"TechnicalForum","categoryId":"Forums"},"routeName":"ForumBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-2","params":{"boardId":"WaterCooler","categoryId":"Forums"},"routeName":"ForumBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-0","params":{"categoryId":"Forums"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-4","params":{"boardId":"codeshare","categoryId":"CrowdSRC"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-5","params":{"boardId":"communityarticles","categoryId":"CrowdSRC"},"routeName":"TkbBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-3","params":{"categoryId":"CrowdSRC"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-7","params":{"boardId":"TechnicalArticles","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"article-series","params":{"boardId":"article-series","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"security-insights","params":{"boardId":"security-insights","categoryId":"Articles"},"routeName":"TkbBoardPage"},{"linkType":"INTERNAL","id":"migrated-link-8","params":{"boardId":"DevCentralNews","categoryId":"Articles"},"routeName":"TkbBoardPage"}],"linkType":"INTERNAL","id":"migrated-link-6","params":{"categoryId":"Articles"},"routeName":"CategoryPage"},{"children":[{"linkType":"INTERNAL","id":"migrated-link-10","params":{"categoryId":"CommunityGroups"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"migrated-link-11","params":{"categoryId":"F5-Groups"},"routeName":"CategoryPage"}],"linkType":"INTERNAL","id":"migrated-link-9","params":{"categoryId":"GroupsCategory"},"routeName":"CategoryPage"},{"children":[],"linkType":"INTERNAL","id":"migrated-link-12","params":{"boardId":"Events","categoryId":"top"},"routeName":"EventBoardPage"},{"children":[],"linkType":"INTERNAL","id":"migrated-link-13","params":{"boardId":"Suggestions","categoryId":"top"},"routeName":"IdeaBoardPage"},{"children":[],"linkType":"EXTERNAL","id":"Common-external-link","url":"https://community.f5.com/c/how-do-i","target":"SELF"}]},"className":"QuiltComponent_lia-component-edit-mode__lQ9Z6","showSearchIcon":false},"__typename":"QuiltComponent"},{"id":"community.widget.bannerWidget","props":{"backgroundColor":"transparent","visualEffects":{"showBottomBorder":false},"backgroundImageProps":{"backgroundSize":"COVER","backgroundPosition":"CENTER_CENTER","backgroundRepeat":"NO_REPEAT"},"fontColor":"#222222"},"__typename":"QuiltComponent"},{"id":"community.widget.breadcrumbWidget","props":{"backgroundColor":"var(--lia-bs-primary)","linkHighlightColor":"#FFFFFF","visualEffects":{"showBottomBorder":false},"backgroundOpacity":60,"linkTextColor":"#FFFFFF"},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"footer":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"var(--lia-bs-body-color)","items":[{"id":"custom.widget.Beta_Footer","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.Tag_Manager_Helper","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.Consent_Blackbar","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"__typename":"QuiltWrapper","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/ActionFeedback-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/common/ActionFeedback-1743097588266","value":{"joinedGroupHub.title":"Welcome","joinedGroupHub.message":"You are now a member of this group and are subscribed to updates.","groupHubInviteNotFound.title":"Invitation Not Found","groupHubInviteNotFound.message":"Sorry, we could not find your invitation to the group. The owner may have canceled the invite.","groupHubNotFound.title":"Group Not Found","groupHubNotFound.message":"The grouphub you tried to join does not exist. It may have been deleted.","existingGroupHubMember.title":"Already Joined","existingGroupHubMember.message":"You are already a member of this group.","accountLocked.title":"Account Locked","accountLocked.message":"Your account has been locked due to multiple failed attempts. Try again in {lockoutTime} minutes.","editedGroupHub.title":"Changes Saved","editedGroupHub.message":"Your group has been updated.","leftGroupHub.title":"Goodbye","leftGroupHub.message":"You are no longer a member of this group and will not receive future updates.","deletedGroupHub.title":"Deleted","deletedGroupHub.message":"The group has been deleted.","groupHubCreated.title":"Group Created","groupHubCreated.message":"{groupHubName} is ready to use","accountClosed.title":"Account Closed","accountClosed.message":"The account has been closed and you will now be redirected to the homepage","resetTokenExpired.title":"Reset Password Link has Expired","resetTokenExpired.message":"Try resetting your password again","invalidUrl.title":"Invalid URL","invalidUrl.message":"The URL you're using is not recognized. Verify your URL and try again.","accountClosedForUser.title":"Account Closed","accountClosedForUser.message":"{userName}'s account is closed","inviteTokenInvalid.title":"Invitation Invalid","inviteTokenInvalid.message":"Your invitation to the community has been canceled or expired.","inviteTokenError.title":"Invitation Verification Failed","inviteTokenError.message":"The url you are utilizing is not recognized. Verify your URL and try again","pageNotFound.title":"Access Denied","pageNotFound.message":"You do not have access to this area of the community or it doesn't exist","eventAttending.title":"Responded as Attending","eventAttending.message":"You'll be notified when there's new activity and reminded as the event approaches","eventInterested.title":"Responded as Interested","eventInterested.message":"You'll be notified when there's new activity and reminded as the event approaches","eventNotFound.title":"Event Not Found","eventNotFound.message":"The event you tried to respond to does not exist.","redirectToRelatedPage.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.message":"The content you are trying to access is archived","redirectToRelatedPage.message":"The content you are trying to access is archived","relatedUrl.archivalLink.flyoutMessage":"The content you are trying to access is archived View Archived Content"},"localOverride":false},"CachedAsset:component:custom.widget.Beta_MetaNav-en-1742465037587":{"__typename":"CachedAsset","id":"component:custom.widget.Beta_MetaNav-en-1742465037587","value":{"component":{"id":"custom.widget.Beta_MetaNav","template":{"id":"Beta_MetaNav","markupLanguage":"HANDLEBARS","style":null,"texts":null,"defaults":{"config":{"applicablePages":[],"description":"MetaNav menu at the top of every page.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Beta_MetaNav","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"MetaNav menu at the top of every page.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Community_Quicklinks-en-1742465037587":{"__typename":"CachedAsset","id":"component:custom.widget.Community_Quicklinks-en-1742465037587","value":{"component":{"id":"custom.widget.Community_Quicklinks","template":{"id":"Community_Quicklinks","markupLanguage":"HANDLEBARS","style":null,"texts":null,"defaults":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Community_Quicklinks","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Beta_Footer-en-1742465037587":{"__typename":"CachedAsset","id":"component:custom.widget.Beta_Footer-en-1742465037587","value":{"component":{"id":"custom.widget.Beta_Footer","template":{"id":"Beta_Footer","markupLanguage":"HANDLEBARS","style":null,"texts":null,"defaults":{"config":{"applicablePages":[],"description":"DevCentral´s custom footer.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Beta_Footer","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"DevCentral´s custom footer.","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Tag_Manager_Helper-en-1742465037587":{"__typename":"CachedAsset","id":"component:custom.widget.Tag_Manager_Helper-en-1742465037587","value":{"component":{"id":"custom.widget.Tag_Manager_Helper","template":{"id":"Tag_Manager_Helper","markupLanguage":"HANDLEBARS","style":null,"texts":null,"defaults":{"config":{"applicablePages":[],"description":"Helper widget to inject Tag Manager scripts into head element","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Tag_Manager_Helper","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"Helper widget to inject Tag Manager scripts into head element","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:component:custom.widget.Consent_Blackbar-en-1742465037587":{"__typename":"CachedAsset","id":"component:custom.widget.Consent_Blackbar-en-1742465037587","value":{"component":{"id":"custom.widget.Consent_Blackbar","template":{"id":"Consent_Blackbar","markupLanguage":"HTML","style":null,"texts":null,"defaults":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.Consent_Blackbar","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"TEXTHTML","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":null,"form":null},"localOverride":false},"CachedAsset:text:en_US-components/community/Breadcrumb-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/Breadcrumb-1743097588266","value":{"navLabel":"Breadcrumbs","dropdown":"Additional parent page navigation"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBanner-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBanner-1743097588266","value":{"messageMarkedAsSpam":"This post has been marked as spam","messageMarkedAsSpam@board:TKB":"This article has been marked as spam","messageMarkedAsSpam@board:BLOG":"This post has been marked as spam","messageMarkedAsSpam@board:FORUM":"This discussion has been marked as spam","messageMarkedAsSpam@board:OCCASION":"This event has been marked as spam","messageMarkedAsSpam@board:IDEA":"This idea has been marked as spam","manageSpam":"Manage Spam","messageMarkedAsAbuse":"This post has been marked as abuse","messageMarkedAsAbuse@board:TKB":"This article has been marked as abuse","messageMarkedAsAbuse@board:BLOG":"This post has been marked as abuse","messageMarkedAsAbuse@board:FORUM":"This discussion has been marked as abuse","messageMarkedAsAbuse@board:OCCASION":"This event has been marked as abuse","messageMarkedAsAbuse@board:IDEA":"This idea has been marked as abuse","preModCommentAuthorText":"This comment will be published as soon as it is approved","preModCommentModeratorText":"This comment is awaiting moderation","messageMarkedAsOther":"This post has been rejected due to other reasons","messageMarkedAsOther@board:TKB":"This article has been rejected due to other reasons","messageMarkedAsOther@board:BLOG":"This post has been rejected due to other reasons","messageMarkedAsOther@board:FORUM":"This discussion has been rejected due to other reasons","messageMarkedAsOther@board:OCCASION":"This event has been rejected due to other reasons","messageMarkedAsOther@board:IDEA":"This idea has been rejected due to other reasons","messageArchived":"This post was archived on {date}","relatedUrl":"View Related Content","relatedContentText":"Showing related content","archivedContentLink":"View Archived Content"},"localOverride":false},"CachedAsset:text:en_US-components/featured/content/FeaturedContentWidget-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/featured/content/FeaturedContentWidget-1743097588266","value":{"edit":"Edit Featured Content","title":"Featured Content","title@instance:iLVTsW":"Pinned Items","title@instance:featuredWidgets.widget.featuredContentWidget-1702666903735":"","title@instance:TZsNhL":"","title@instance:featuredWidgets.widget.featuredContentWidget-1702666556326":"","title@instance:featuredWidgets.widget.featuredContentWidget-1717525242793":"","title@instance:featuredWidgets.widget.featuredContentWidget-1705956211049":"","title@instance:featuredWidgets.widget.featuredContentWidget-1717525727595":"Pinned Items","title@instance:featuredWidgets.widget.featuredContentWidget-1728320145294":"Pinned Items","title@instance:featuredWidgets.widget.featuredContentWidget-1703882552800":""},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageListForNodeByRecentActivityWidget-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageListForNodeByRecentActivityWidget-1743097588266","value":{"title@userScope:other":"Recent Content","title@userScope:self":"Contributions","title@board:FORUM@userScope:other":"Recent Discussions","title@board:BLOG@userScope:other":"Recent Blogs","emptyDescription":"No content to show","MessageListForNodeByRecentActivityWidgetEditor.nodeScope.label":"Scope","title@instance:1706288370055":"Content Feed","title@instance:1743095186784":"Most Recent Updates","title@instance:1704317906837":"Content Feed","title@instance:1743095018194":"Most Recent Updates","title@instance:1702668293472":"Community Feed","title@instance:1743095117047":"Most Recent Updates","title@instance:1704319314827":"Blog Feed","title@instance:1743095235555":"Most Recent Updates","title@instance:1704320290851":"My Contributions","title@instance:1703720491809":"Forum Feed","title@instance:1743095311723":"Most Recent Updates","title@instance:1703028709746":"Group Content Feed","title@instance:VTsglH":"Content Feed"},"localOverride":false},"CachedAsset:text:en_US-components/messages/RelatedContentWidget-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/RelatedContentWidget-1743097588266","value":{"title":"Related Content","emptyDescription":"No content to show"},"localOverride":false},"Forum:board:WaterCooler":{"__typename":"Forum","id":"board:WaterCooler","forumPolicies":{"__typename":"ForumPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Articles":{"__typename":"Category","id":"category:Articles","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"entityType":"CATEGORY","displayId":"Articles","nodeType":"category","depth":1,"title":"Articles","shortTitle":"Articles"},"Tkb:board:TechnicalArticles":{"__typename":"Tkb","id":"board:TechnicalArticles","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"entityType":"TKB","displayId":"TechnicalArticles","nodeType":"board","depth":2,"conversationStyle":"TKB","title":"Technical Articles","shortTitle":"Technical Articles","parent":{"__ref":"Category:category:Articles"},"userContext":{"__typename":"NodeUserContext","canAddAttachments":false,"canUpdateNode":false,"canPostMessages":false,"isSubscribed":false},"avatar":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bi0zNC0xM2k0MzE3N0Q2NjFBRDg5NDAy\"}"},"description":"F5 SMEs share good practice.","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/"},"Tkb:board:DevCentralNews":{"__typename":"Tkb","id":"board:DevCentralNews","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:GroupsCategory":{"__typename":"Category","id":"category:GroupsCategory","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:F5-Groups":{"__typename":"Category","id":"category:F5-Groups","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:CommunityGroups":{"__typename":"Category","id":"category:CommunityGroups","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Occasion:board:Events":{"__typename":"Occasion","id":"board:Events","boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"occasionPolicies":{"__typename":"OccasionPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Idea:board:Suggestions":{"__typename":"Idea","id":"board:Suggestions","boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"ideaPolicies":{"__typename":"IdeaPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:CrowdSRC":{"__typename":"Category","id":"category:CrowdSRC","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:codeshare":{"__typename":"Tkb","id":"board:codeshare","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:communityarticles":{"__typename":"Tkb","id":"board:communityarticles","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:security-insights":{"__typename":"Tkb","id":"board:security-insights","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Tkb:board:article-series":{"__typename":"Tkb","id":"board:article-series","tkbPolicies":{"__typename":"TkbPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Conversation:conversation:340536":{"__typename":"Conversation","id":"conversation:340536","topic":{"__typename":"ForumTopicMessage","uid":340536},"lastPostingActivityTime":"2025-03-29T06:24:48.230-07:00","solved":false},"ForumTopicMessage:message:340536":{"__typename":"ForumTopicMessage","subject":"F5 migration","conversation":{"__ref":"Conversation:conversation:340536"},"id":"message:340536","revisionNum":1,"uid":340536,"depth":0,"board":{"__ref":"Forum:board:TechnicalForum"},"author":{"__typename":"User","uid":249654,"login":"Srini","registrationData":{"__typename":"RegistrationData","status":null},"deleted":false},"metrics":{"__typename":"MessageMetrics","views":42},"postTime":"2025-03-28T01:29:23.282-07:00","lastPublishTime":"2025-03-28T01:29:23.282-07:00","readOnly":false},"Conversation:conversation:334536":{"__typename":"Conversation","id":"conversation:334536","topic":{"__typename":"ForumTopicMessage","uid":334536},"lastPostingActivityTime":"2025-03-29T01:39:11.616-07:00","solved":false},"ForumTopicMessage:message:334536":{"__typename":"ForumTopicMessage","subject":"tunnel failed after antivirus avg from trial to full protection","conversation":{"__ref":"Conversation:conversation:334536"},"id":"message:334536","revisionNum":1,"uid":334536,"depth":0,"board":{"__ref":"Forum:board:TechnicalForum"},"author":{"__typename":"User","uid":421157,"login":"Anzine321","registrationData":{"__typename":"RegistrationData","status":null},"deleted":false},"metrics":{"__typename":"MessageMetrics","views":50},"postTime":"2024-09-18T18:48:53.317-07:00","lastPublishTime":"2024-09-18T18:48:53.317-07:00","readOnly":false},"Conversation:conversation:335863":{"__typename":"Conversation","id":"conversation:335863","topic":{"__typename":"ForumTopicMessage","uid":335863},"lastPostingActivityTime":"2025-03-28T05:12:58.910-07:00","solved":false},"ForumTopicMessage:message:335863":{"__typename":"ForumTopicMessage","subject":"Default retry time inband monitor","conversation":{"__ref":"Conversation:conversation:335863"},"id":"message:335863","revisionNum":1,"uid":335863,"depth":0,"board":{"__ref":"Forum:board:TechnicalForum"},"author":{"__typename":"User","uid":273274,"login":"Zen_Y","registrationData":{"__typename":"RegistrationData","status":null},"deleted":false},"metrics":{"__typename":"MessageMetrics","views":65},"postTime":"2024-10-29T17:42:28.446-07:00","lastPublishTime":"2024-10-29T17:42:28.446-07:00","readOnly":false},"Conversation:conversation:340547":{"__typename":"Conversation","id":"conversation:340547","topic":{"__typename":"ForumTopicMessage","uid":340547},"lastPostingActivityTime":"2025-03-28T05:09:40.599-07:00","solved":false},"ForumTopicMessage:message:340547":{"__typename":"ForumTopicMessage","subject":"how to monitor the axfr master response","conversation":{"__ref":"Conversation:conversation:340547"},"id":"message:340547","revisionNum":1,"uid":340547,"depth":0,"board":{"__ref":"Forum:board:TechnicalForum"},"author":{"__typename":"User","uid":273274,"login":"Zen_Y","registrationData":{"__typename":"RegistrationData","status":null},"deleted":false},"metrics":{"__typename":"MessageMetrics","views":19},"postTime":"2025-03-28T05:09:40.599-07:00","lastPublishTime":"2025-03-28T05:09:40.599-07:00","readOnly":false},"Conversation:conversation:340463":{"__typename":"Conversation","id":"conversation:340463","topic":{"__typename":"ForumTopicMessage","uid":340463},"lastPostingActivityTime":"2025-03-28T05:05:50.788-07:00","solved":false},"ForumTopicMessage:message:340463":{"__typename":"ForumTopicMessage","subject":"Http / https health monitor issue","conversation":{"__ref":"Conversation:conversation:340463"},"id":"message:340463","revisionNum":1,"uid":340463,"depth":0,"board":{"__ref":"Forum:board:TechnicalForum"},"author":{"__typename":"User","uid":426815,"login":"Ozzy","registrationData":{"__typename":"RegistrationData","status":null},"deleted":false},"metrics":{"__typename":"MessageMetrics","views":60},"postTime":"2025-03-25T02:53:09.714-07:00","lastPublishTime":"2025-03-25T02:53:09.714-07:00","readOnly":false},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2","height":0,"width":0,"mimeType":"image/svg+xml"},"Rank:rank:28":{"__typename":"Rank","id":"rank:28","position":5,"name":"Employee","color":"C20025","icon":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMjgtQ3U0RXo2\"}"},"rankStyle":"OUTLINE"},"User:user:181430":{"__typename":"User","id":"user:181430","uid":181430,"login":"Brad_Scherer","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-05-16T06:56:55.000-07:00","confirmEmailStatus":null,"registrationAccessLevel":null,"ssoRegistrationFields":[]},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS0xODE0MzAtMTg4NDFpNEY4NjZFMTJDMjk2MjIyMQ"},"rank":{"__ref":"Rank:rank:28"},"messagesCount":12,"kudosGivenCount":1,"kudosReceivedCount":3,"kudosWeight":1,"ssoId":null,"followersCount":null,"solutionsCount":0,"entityType":"USER","eventPath":"community:zihoc95639/user:181430"},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/bi0zNC0xM2k0MzE3N0Q2NjFBRDg5NDAy\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/bi0zNC0xM2k0MzE3N0Q2NjFBRDg5NDAy","mimeType":"image/png"},"TkbTopicMessage:message:333807":{"__typename":"TkbTopicMessage","uid":333807,"subject":"Service Discovery in F5 Distributed Cloud - Architecture Options","id":"message:333807","revisionNum":11,"repliesCount":1,"author":{"__ref":"User:user:181430"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:333807"},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"shortScheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false}},"moderationData":{"__ref":"ModerationData:moderation_data:333807"},"teaser@stripHtml({\"removeProcessingText\":false,\"truncateLength\":200})":"","postTime":"2024-09-18T05:00:00.042-07:00","lastPublishTime":"2024-10-04T10:10:25.191-07:00","readOnly":false,"introduction":"","metrics":{"__typename":"MessageMetrics","views":395},"placeholder":false,"originalMessageForPlaceholder":null,"entityType":"TKB_ARTICLE","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/message:333807"},"Conversation:conversation:333807":{"__typename":"Conversation","id":"conversation:333807","solved":false,"topic":{"__ref":"TkbTopicMessage:message:333807"},"lastPostingActivityTime":"2024-11-25T03:38:28.315-08:00","lastPostTime":"2024-11-25T03:38:28.315-08:00"},"ModerationData:moderation_data:333807":{"__typename":"ModerationData","id":"moderation_data:333807","status":"APPROVED","rejectReason":null},"RelatedContentMessage:RelatedContentMessage:333807":{"__typename":"RelatedContentMessage","id":"RelatedContentMessage:333807","relatedMessage":{"__ref":"TkbTopicMessage:message:333807"}},"User:user:421692":{"__typename":"User","id":"user:421692","uid":421692,"login":"Jennifer_Yeung","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2023-01-05T11:02:30.236-08:00","confirmEmailStatus":null,"registrationAccessLevel":null,"ssoRegistrationFields":[]},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS00MjE2OTItMjM4NjlpMkQ2RjRFMUZDNDMxN0IxRA"},"rank":{"__ref":"Rank:rank:28"},"messagesCount":8,"kudosGivenCount":0,"kudosReceivedCount":11,"kudosWeight":1,"ssoId":null,"followersCount":null,"solutionsCount":0,"entityType":"USER","eventPath":"community:zihoc95639/user:421692"},"TkbTopicMessage:message:313741":{"__typename":"TkbTopicMessage","uid":313741,"subject":"F5 BIG-IP in Cisco ACI Multi-Site and Multi-Pod - Design Options","id":"message:313741","revisionNum":20,"repliesCount":1,"author":{"__ref":"User:user:421692"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:313741"},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"shortScheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false}},"moderationData":{"__ref":"ModerationData:moderation_data:313741"},"teaser@stripHtml({\"removeProcessingText\":false,\"truncateLength\":200})":"","postTime":"2023-06-05T10:18:03.064-07:00","lastPublishTime":"2023-06-05T11:12:10.909-07:00","readOnly":false,"introduction":"","metrics":{"__typename":"MessageMetrics","views":3233},"placeholder":false,"originalMessageForPlaceholder":null,"entityType":"TKB_ARTICLE","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/message:313741"},"Conversation:conversation:313741":{"__typename":"Conversation","id":"conversation:313741","solved":false,"topic":{"__ref":"TkbTopicMessage:message:313741"},"lastPostingActivityTime":"2023-10-03T15:03:25.045-07:00","lastPostTime":"2023-10-03T15:03:25.045-07:00"},"ModerationData:moderation_data:313741":{"__typename":"ModerationData","id":"moderation_data:313741","status":"APPROVED","rejectReason":null},"RelatedContentMessage:RelatedContentMessage:313741":{"__typename":"RelatedContentMessage","id":"RelatedContentMessage:313741","relatedMessage":{"__ref":"TkbTopicMessage:message:313741"}},"User:user:242856":{"__typename":"User","id":"user:242856","uid":242856,"login":"MichaelOLeary","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-05-15T14:42:55.000-07:00","confirmEmailStatus":null,"registrationAccessLevel":null,"ssoRegistrationFields":[]},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS0yNDI4NTYtMjA2NzVpMjAwQzU1OUQzMEFFMDM2RQ"},"rank":{"__ref":"Rank:rank:28"},"messagesCount":127,"kudosGivenCount":64,"kudosReceivedCount":163,"kudosWeight":1,"ssoId":null,"followersCount":null,"solutionsCount":2,"entityType":"USER","eventPath":"community:zihoc95639/user:242856"},"TkbTopicMessage:message:297576":{"__typename":"TkbTopicMessage","uid":297576,"subject":"Service Discovery and authentication options for Kubernetes providers (EKS, AKS, GCP)","id":"message:297576","revisionNum":29,"repliesCount":3,"author":{"__ref":"User:user:242856"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:297576"},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"shortScheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false}},"moderationData":{"__ref":"ModerationData:moderation_data:297576"},"teaser@stripHtml({\"removeProcessingText\":false,\"truncateLength\":200})":"","postTime":"2022-08-31T05:00:00.031-07:00","lastPublishTime":"2023-06-05T23:00:59.117-07:00","readOnly":false,"introduction":"","metrics":{"__typename":"MessageMetrics","views":4498},"placeholder":false,"originalMessageForPlaceholder":null,"entityType":"TKB_ARTICLE","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/message:297576"},"Conversation:conversation:297576":{"__typename":"Conversation","id":"conversation:297576","solved":false,"topic":{"__ref":"TkbTopicMessage:message:297576"},"lastPostingActivityTime":"2023-06-05T23:00:59.117-07:00","lastPostTime":"2022-09-07T08:31:45.325-07:00"},"ModerationData:moderation_data:297576":{"__typename":"ModerationData","id":"moderation_data:297576","status":"APPROVED","rejectReason":null},"RelatedContentMessage:RelatedContentMessage:297576":{"__typename":"RelatedContentMessage","id":"RelatedContentMessage:297576","relatedMessage":{"__ref":"TkbTopicMessage:message:297576"}},"Rank:rank:27":{"__typename":"Rank","id":"rank:27","position":2,"name":"Ret. Employee","color":"949494","icon":null,"rankStyle":"OUTLINE"},"User:user:56738":{"__typename":"User","id":"user:56738","uid":56738,"login":"ltwagnon","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-05-15T11:53:25.000-07:00","confirmEmailStatus":null,"registrationAccessLevel":null,"ssoRegistrationFields":[]},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS01NjczOC0xNjM3OGk3QkQ0M0UxRDAzRDEzMDg3"},"rank":{"__ref":"Rank:rank:27"},"messagesCount":505,"kudosGivenCount":3,"kudosReceivedCount":77,"kudosWeight":1,"ssoId":null,"followersCount":null,"solutionsCount":1,"entityType":"USER","eventPath":"community:zihoc95639/user:56738"},"TkbTopicMessage:message:279625":{"__typename":"TkbTopicMessage","uid":279625,"subject":"Traffic Management User Interface Vulnerability: The Fix and Temporary Mitigation Options","id":"message:279625","revisionNum":1,"repliesCount":8,"author":{"__ref":"User:user:56738"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:279625"},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"shortScheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false}},"moderationData":{"__ref":"ModerationData:moderation_data:279625"},"teaser@stripHtml({\"removeProcessingText\":false,\"truncateLength\":200})":"","postTime":"2020-07-05T20:40:23.000-07:00","lastPublishTime":"2020-07-05T20:40:23.000-07:00","readOnly":false,"introduction":"","metrics":{"__typename":"MessageMetrics","views":11363},"placeholder":false,"originalMessageForPlaceholder":null,"entityType":"TKB_ARTICLE","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/message:279625"},"Conversation:conversation:279625":{"__typename":"Conversation","id":"conversation:279625","solved":false,"topic":{"__ref":"TkbTopicMessage:message:279625"},"lastPostingActivityTime":"2020-07-09T09:34:44.000-07:00","lastPostTime":"2020-07-09T09:34:44.000-07:00"},"ModerationData:moderation_data:279625":{"__typename":"ModerationData","id":"moderation_data:279625","status":"APPROVED","rejectReason":null},"RelatedContentMessage:RelatedContentMessage:279625":{"__typename":"RelatedContentMessage","id":"RelatedContentMessage:279625","relatedMessage":{"__ref":"TkbTopicMessage:message:279625"}},"User:user:420638":{"__typename":"User","id":"user:420638","uid":420638,"login":"bhushanpai","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2022-10-24T08:49:46.288-07:00","confirmEmailStatus":null,"registrationAccessLevel":null,"ssoRegistrationFields":[]},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/images/dS00MjA2MzgtSTBjelV4?image-coordinates=0%2C41%2C958%2C999"},"rank":{"__ref":"Rank:rank:28"},"messagesCount":6,"kudosGivenCount":3,"kudosReceivedCount":10,"kudosWeight":1,"ssoId":null,"followersCount":null,"solutionsCount":0,"entityType":"USER","eventPath":"community:zihoc95639/user:420638"},"TkbTopicMessage:message:333034":{"__typename":"TkbTopicMessage","uid":333034,"subject":"F5 Distributed Cloud Customer Edge on F5 rSeries – Reference Architecture","id":"message:333034","revisionNum":2,"repliesCount":2,"author":{"__ref":"User:user:420638"},"depth":0,"hasGivenKudo":false,"helpful":null,"board":{"__ref":"Tkb:board:TechnicalArticles"},"conversation":{"__ref":"Conversation:conversation:333034"},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"shortScheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false}},"moderationData":{"__ref":"ModerationData:moderation_data:333034"},"teaser@stripHtml({\"removeProcessingText\":false,\"truncateLength\":200})":" Traditionally, to advertise an application to the internet or to connect applications across multi-cloud environments enterprises must configure and manage multiple networking and security devices fr...","postTime":"2024-08-15T05:00:00.037-07:00","lastPublishTime":"2024-08-15T05:00:00.037-07:00","readOnly":false,"introduction":"","metrics":{"__typename":"MessageMetrics","views":1591},"placeholder":false,"originalMessageForPlaceholder":null,"entityType":"TKB_ARTICLE","eventPath":"category:Articles/community:zihoc95639board:TechnicalArticles/message:333034"},"Conversation:conversation:333034":{"__typename":"Conversation","id":"conversation:333034","solved":false,"topic":{"__ref":"TkbTopicMessage:message:333034"},"lastPostingActivityTime":"2024-08-16T09:39:54.004-07:00","lastPostTime":"2024-08-16T09:39:54.004-07:00"},"ModerationData:moderation_data:333034":{"__typename":"ModerationData","id":"moderation_data:333034","status":"APPROVED","rejectReason":null},"RelatedContentMessage:RelatedContentMessage:333034":{"__typename":"RelatedContentMessage","id":"RelatedContentMessage:333034","relatedMessage":{"__ref":"TkbTopicMessage:message:333034"}},"CachedAsset:text:en_US-components/community/Navbar-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/Navbar-1743097588266","value":{"community":"Community Home","inbox":"Inbox","manageContent":"Manage Content","tos":"Terms of Service","forgotPassword":"Forgot Password","themeEditor":"Theme Editor","edit":"Edit Navigation Bar","skipContent":"Skip to content","migrated-link-9":"Groups","migrated-link-7":"Technical Articles","migrated-link-8":"DevCentral News","migrated-link-1":"Technical Forum","migrated-link-10":"Community Groups","migrated-link-2":"Water Cooler","migrated-link-11":"F5 Groups","Common-external-link":"How Do I...?","migrated-link-0":"Forums","article-series":"Article Series","migrated-link-5":"Community Articles","migrated-link-6":"Articles","security-insights":"Security Insights","migrated-link-3":"CrowdSRC","migrated-link-4":"CodeShare","migrated-link-12":"Events","migrated-link-13":"Suggestions"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarHamburgerDropdown-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarHamburgerDropdown-1743097588266","value":{"hamburgerLabel":"Side Menu"},"localOverride":false},"CachedAsset:text:en_US-components/community/BrandLogo-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/BrandLogo-1743097588266","value":{"logoAlt":"Khoros","themeLogoAlt":"Brand Logo"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarTextLinks-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarTextLinks-1743097588266","value":{"more":"More"},"localOverride":false},"CachedAsset:text:en_US-components/authentication/AuthenticationLink-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/authentication/AuthenticationLink-1743097588266","value":{"title.login":"Sign In","title.registration":"Register","title.forgotPassword":"Forgot Password","title.multiAuthLogin":"Sign In"},"localOverride":false},"CachedAsset:text:en_US-components/nodes/NodeLink-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/nodes/NodeLink-1743097588266","value":{"place":"Place {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageView/MessageViewStandard-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageView/MessageViewStandard-1743097588266","value":{"anonymous":"Anonymous","author":"{messageAuthorLogin}","authorBy":"{messageAuthorLogin}","board":"{messageBoardTitle}","replyToUser":" to {parentAuthor}","showMoreReplies":"Show More","replyText":"Reply","repliesText":"Replies","markedAsSolved":"Marked as Solved","movedMessagePlaceholder.BLOG":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.TKB":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.FORUM":"{count, plural, =0 {This reply has been} other {These replies have been} }","movedMessagePlaceholder.IDEA":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.OCCASION":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholderUrlText":"moved.","messageStatus":"Status: ","statusChanged":"Status changed: {previousStatus} to {currentStatus}","statusAdded":"Status added: {status}","statusRemoved":"Status removed: {status}","labelExpand":"expand replies","labelCollapse":"collapse replies","unhelpfulReason.reason1":"Content is outdated","unhelpfulReason.reason2":"Article is missing information","unhelpfulReason.reason3":"Content is for a different Product","unhelpfulReason.reason4":"Doesn't match what I was searching for"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageDeepLink-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageDeepLink-1743097588266","value":{"viewFullDiscussion@board:FORUM":"View Full Discussion ({repliesCount} Replies)","viewFullDiscussion@board:BLOG":"View Full Discussion ({repliesCount} Comments)","viewFullDiscussion@board:TKB":"View Full Discussion ({repliesCount} Comments)","viewFullDiscussion@board:IDEA":"View Full Discussion ({repliesCount} Comments)","viewFullDiscussion@board:OCCASION":"View Full Discussion ({repliesCount} Comments)","showParents@board:FORUM":"Show Parent Replies","showParents@board:BLOG":"Show Parent Comments","showParents@board:TKB":"Show Parent Comments","showParents@board:IDEA":"Show Parent Comments","showParents@board:OCCASION":"Show Parent Comments"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyCallToAction-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyCallToAction-1743097588266","value":{"leaveReply":"Leave a reply...","leaveReply@board:BLOG@message:root":"Leave a comment...","leaveReply@board:TKB@message:root":"Leave a comment...","leaveReply@board:IDEA@message:root":"Leave a comment...","leaveReply@board:OCCASION@message:root":"Leave a comment...","repliesTurnedOff.FORUM":"Replies are turned off for this topic","repliesTurnedOff.BLOG":"Comments are turned off for this topic","repliesTurnedOff.TKB":"Comments are turned off for this topic","repliesTurnedOff.IDEA":"Comments are turned off for this topic","repliesTurnedOff.OCCASION":"Comments are turned off for this topic","infoText":"Stop poking me!"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/QueryHandler-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/QueryHandler-1743097588266","value":{"title":"Query Handler"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarDropdownToggle-1743097588266","value":{"ariaLabelClosed":"Press the down arrow to open the menu"},"localOverride":false},"CachedAsset:text:en_US-components/messages/EscalatedMessageBanner-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/EscalatedMessageBanner-1743097588266","value":{"escalationMessage":"Escalated to Salesforce by {username} on {date}","viewDetails":"View Details","modalTitle":"Case Details","escalatedBy":"Escalated by: ","escalatedOn":"Escalated on: ","caseNumber":"Case Number: ","status":"Status: ","lastUpdateDate":"Last Update: ","automaticEscalation":"automatic escalation","anonymous":"Anonymous"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserLink-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserLink-1743097588266","value":{"authorName":"View Profile: {author}","anonymous":"Anonymous"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserRank-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserRank-1743097588266","value":{"rankName":"{rankName}","userRank":"Author rank {rankName}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageTime-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageTime-1743097588266","value":{"postTime":"Published: {time}","lastPublishTime":"Last Update: {time}","conversation.lastPostingActivityTime":"Last posting activity time: {time}","conversation.lastPostTime":"Last post time: {time}","moderationData.rejectTime":"Rejected time: {time}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageSolvedBadge-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageSolvedBadge-1743097588266","value":{"solved":"Solved"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageSubject-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageSubject-1743097588266","value":{"noSubject":"(no subject)"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBody-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBody-1743097588266","value":{"showMessageBody":"Show More","mentionsErrorTitle":"{mentionsType, select, board {Board} user {User} message {Message} other {}} No Longer Available","mentionsErrorMessage":"The {mentionsType} you are trying to view has been removed from the community.","videoProcessing":"Video is being processed. Please try again in a few minutes.","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCustomFields-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCustomFields-1743097588266","value":{"CustomField.default.label":"Value of {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyButton-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyButton-1743097588266","value":{"repliesCount":"{count}","title":"Reply","title@board:BLOG@message:root":"Comment","title@board:TKB@message:root":"Comment","title@board:IDEA@message:root":"Comment","title@board:OCCASION@message:root":"Comment"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageView/MessageViewInline-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageView/MessageViewInline-1743097588266","value":{"bylineAuthor":"{bylineAuthor}","bylineBoard":"{bylineBoard}","anonymous":"Anonymous","place":"Place {bylineBoard}","gotoParent":"Go to parent {name}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Pager/PagerLoadMore-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Pager/PagerLoadMore-1743097588266","value":{"loadMore":"Show More"},"localOverride":false},"CachedAsset:text:en_US-components/customComponent/CustomComponent-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/customComponent/CustomComponent-1743097588266","value":{"errorMessage":"Error rendering component id: {customComponentId}","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"User:user:123396":{"__typename":"User","id":"user:123396","uid":123396,"login":"Manuel_A_Sosa_1","deleted":false,"avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/m_assets/avatars/default/avatar-2.svg?time=0"},"rank":{"__ref":"Rank:rank:41"},"email":"","messagesCount":2,"biography":null,"topicsCount":0,"kudosReceivedCount":0,"kudosGivenCount":0,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2019-05-04T18:03:30.000-07:00","confirmEmailStatus":null},"followersCount":null,"solutionsCount":0,"entityType":"USER","eventPath":"community:zihoc95639/user:123396"},"ModerationData:moderation_data:146629":{"__typename":"ModerationData","id":"moderation_data:146629","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"Revision:revision:146629_1":{"__typename":"Revision","id":"revision:146629_1","lastEditTime":"2016-03-25T08:16:09.000-07:00"},"QueryVariables:ReplyList:message:146629:1":{"__typename":"QueryVariables","id":"ReplyList:message:146629:1","value":{"id":"message:146629","first":10,"sorts":{"postTime":{"direction":"ASC"}},"repliesFirst":3,"repliesFirstDepthThree":1,"repliesSorts":{"postTime":{"direction":"ASC"}},"useAvatar":true,"useAuthorLogin":true,"useAuthorRank":true,"useBody":true,"useKudosCount":true,"useTimeToRead":false,"useMedia":false,"useReadOnlyIcon":false,"useRepliesCount":true,"useSearchSnippet":false,"useAcceptedSolutionButton":true,"useSolvedBadge":false,"useAttachments":false,"attachmentsFirst":5,"useTags":false,"useNodeAncestors":false,"useUserHoverCard":false,"useNodeHoverCard":false,"useModerationStatus":true,"usePreviewSubjectModal":false,"useMessageStatus":true}},"ROOT_MUTATION":{"__typename":"Mutation"},"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserAvatar-1743097588266","value":{"altText":"{login}'s avatar","altTextGeneric":"User's avatar"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/ranks/UserRankLabel-1743097588266","value":{"altTitle":"Icon for {rankName} rank"},"localOverride":false},"CachedAsset:text:en_US-components/messages/AcceptedSolutionButton-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/AcceptedSolutionButton-1743097588266","value":{"accept":"Mark as Solution","accepted":"Marked as Solution","errorHeader":"Error!","errorAdd":"There was an error marking as solution.","errorRemove":"There was an error unmarking as solution.","solved":"Solved","topicAlreadySolvedErrorTitle":"Solution Already Exists","topicAlreadySolvedErrorDesc":"Refresh the browser to view the existing solution"},"localOverride":false},"CachedAsset:text:en_US-components/messages/ThreadedReplyList-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/messages/ThreadedReplyList-1743097588266","value":{"title":"{count, plural, one{# Reply} other{# Replies}}","title@board:BLOG":"{count, plural, one{# Comment} other{# Comments}}","title@board:TKB":"{count, plural, one{# Comment} other{# Comments}}","title@board:IDEA":"{count, plural, one{# Comment} other{# Comments}}","title@board:OCCASION":"{count, plural, one{# Comment} other{# Comments}}","noRepliesTitle":"No Replies","noRepliesTitle@board:BLOG":"No Comments","noRepliesTitle@board:TKB":"No Comments","noRepliesTitle@board:IDEA":"No Comments","noRepliesTitle@board:OCCASION":"No Comments","noRepliesDescription":"Be the first to reply","noRepliesDescription@board:BLOG":"Be the first to comment","noRepliesDescription@board:TKB":"Be the first to comment","noRepliesDescription@board:IDEA":"Be the first to comment","noRepliesDescription@board:OCCASION":"Be the first to comment","messageReadOnlyAlert:BLOG":"Comments have been turned off for this post","messageReadOnlyAlert:TKB":"Comments have been turned off for this article","messageReadOnlyAlert:IDEA":"Comments have been turned off for this idea","messageReadOnlyAlert:FORUM":"Replies have been turned off for this discussion","messageReadOnlyAlert:OCCASION":"Comments have been turned off for this event"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeIcon-1743097588266","value":{"contentType":"Content Type {style, select, FORUM {Forum} BLOG {Blog} TKB {Knowledge Base} IDEA {Ideas} OCCASION {Events} other {}} icon"},"localOverride":false},"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMzQtMGtQRU1Y\"}":{"__typename":"AssociatedImage","url":"https://community.f5.com/t5/s/zihoc95639/images/cmstMzQtMGtQRU1Y","height":0,"width":0,"mimeType":"image/svg+xml"},"Rank:rank:34":{"__typename":"Rank","id":"rank:34","position":11,"name":"Nacreous","color":"CCCCCC","icon":{"__ref":"AssociatedImage:{\"url\":\"https://community.f5.com/t5/s/zihoc95639/images/cmstMzQtMGtQRU1Y\"}"},"rankStyle":"FILLED"},"User:user:262512":{"__typename":"User","id":"user:262512","uid":262512,"login":"StephanManthey","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2006-05-09T01:00:00.000-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://community.f5.com/t5/s/zihoc95639/m_assets/avatars/default/avatar-6.svg?time=0"},"rank":{"__ref":"Rank:rank:34"},"entityType":"USER","eventPath":"community:zihoc95639/user:262512"},"ModerationData:moderation_data:146630":{"__typename":"ModerationData","id":"moderation_data:146630","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"ForumReplyMessage:message:146630":{"__typename":"ForumReplyMessage","author":{"__ref":"User:user:262512"},"id":"message:146630","revisionNum":1,"uid":146630,"depth":2,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Forum:board:TechnicalForum"},"parent":{"__ref":"ForumReplyMessage:message:146629"},"conversation":{"__ref":"Conversation:conversation:146623"},"subject":"Re: F5 sync options","moderationData":{"__ref":"ModerationData:moderation_data:146630"},"body":"Hi Manuel, \ndo you try to setup a sync-failover device-group containing three units? \nTo establish device trust I would recommend to force two units into offline state. \nRemove the machines from the existing sync-failover device-group (repeat on each machine if required) and delete the sync-failover device-group. \nNow reset the device trust on all machines. \nNext step will be to use the active machine to add both offline machines as peers. \nNow all three units should show up in each machine´s device list. \nOn the active unit create a new device-group of type sync-failover with network failover enabled. \nAdd all machines to the new device-group. This will be synced to all machines and you can release them from forced offline. \nTime for the initial sync now. \nThanks, Stephan","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"203","kudosSumWeight":0,"repliesCount":0,"postTime":"2016-03-26T17:45:05.000-07:00","lastPublishTime":"2016-03-26T17:45:05.000-07:00","metrics":{"__typename":"MessageMetrics","views":1052},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"isEscalated":null,"solution":false,"entityType":"FORUM_REPLY","eventPath":"category:Forums/community:zihoc95639board:TechnicalForum/message:146623/message:146630","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"readOnly":false,"editFrozen":false,"body@stringLength":"791","rawBody":"Hi Manuel, \ndo you try to setup a sync-failover device-group containing three units? \nTo establish device trust I would recommend to force two units into offline state. \nRemove the machines from the existing sync-failover device-group (repeat on each machine if required) and delete the sync-failover device-group. \nNow reset the device trust on all machines. \nNext step will be to use the active machine to add both offline machines as peers. \nNow all three units should show up in each machine´s device list. \nOn the active unit create a new device-group of type sync-failover with network failover enabled. \nAdd all machines to the new device-group. This will be synced to all machines and you can release them from forced offline. \nTime for the initial sync now. \nThanks, Stephan","images":{"__typename":"AssociatedImageConnection","edges":[],"totalCount":0,"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"timeToRead":1,"currentRevision":{"__ref":"Revision:revision:146630_1"},"latestVersion":null,"messagePolicies":{"__typename":"MessagePolicies","canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}}},"ModerationData:moderation_data:146632":{"__typename":"ModerationData","id":"moderation_data:146632","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"ForumReplyMessage:message:146632":{"__typename":"ForumReplyMessage","author":{"__ref":"User:user:123396"},"id":"message:146632","revisionNum":1,"uid":146632,"depth":2,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Forum:board:TechnicalForum"},"parent":{"__ref":"ForumReplyMessage:message:146629"},"conversation":{"__ref":"Conversation:conversation:146623"},"subject":"Re: F5 sync options","moderationData":{"__ref":"ModerationData:moderation_data:146632"},"body":"Hi Stephan,\nWe are trying to setup a sync-failover of four members, two in Miami that is the production environment, and two en Brasil that is the DR site. I have the same problem than Aaron, we can sync the two devices in both sites, but when we tried two create a trust domain of four devices we ran into problem. We have a sync network in both sites that is routed on MPLS, is not a connectivity problem. Once we add the third device to the trust domain, we lost the relation that we already have with the second member. \nThanks","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"203","kudosSumWeight":0,"repliesCount":0,"postTime":"2016-03-28T07:11:15.000-07:00","lastPublishTime":"2016-03-28T07:11:15.000-07:00","metrics":{"__typename":"MessageMetrics","views":1052},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"isEscalated":null,"solution":false,"entityType":"FORUM_REPLY","eventPath":"category:Forums/community:zihoc95639board:TechnicalForum/message:146623/message:146632","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"readOnly":false,"editFrozen":false,"body@stringLength":"531","rawBody":"Hi Stephan,\nWe are trying to setup a sync-failover of four members, two in Miami that is the production environment, and two en Brasil that is the DR site. I have the same problem than Aaron, we can sync the two devices in both sites, but when we tried two create a trust domain of four devices we ran into problem. We have a sync network in both sites that is routed on MPLS, is not a connectivity problem. Once we add the third device to the trust domain, we lost the relation that we already have with the second member. \nThanks","images":{"__typename":"AssociatedImageConnection","edges":[],"totalCount":0,"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"timeToRead":1,"currentRevision":{"__ref":"Revision:revision:146632_1"},"latestVersion":null,"messagePolicies":{"__typename":"MessagePolicies","canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}}},"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1743097588266":{"__typename":"CachedAsset","id":"text:en_US-components/tags/TagView/TagViewChip-1743097588266","value":{"tagLabelName":"Tag name {tagName}"},"localOverride":false},"Revision:revision:146630_1":{"__typename":"Revision","id":"revision:146630_1","lastEditTime":"2016-03-26T17:45:05.000-07:00"},"Revision:revision:146632_1":{"__typename":"Revision","id":"revision:146632_1","lastEditTime":"2016-03-28T07:11:15.000-07:00"}}}},"page":"/forums/ForumMessagePage/ForumMessagePage","query":{"boardId":"technicalforum","messageSubject":"f5-sync-options","messageId":"146623","replyId":"146629"},"buildId":"q_bLpq2mflH0BeZigxpj6","runtimeConfig":{"buildInformationVisible":false,"logLevelApp":"info","logLevelMetrics":"info","openTelemetryClientEnabled":false,"openTelemetryConfigName":"f5","openTelemetryServiceVersion":"25.2.0","openTelemetryUniverse":"prod","openTelemetryCollector":"http://localhost:4318","openTelemetryRouteChangeAllowedTime":"5000","apolloDevToolsEnabled":false,"inboxMuteWipFeatureEnabled":false},"isFallback":false,"isExperimentalCompile":false,"dynamicIds":["./components/seo/QAPageSchema/QAPageSchema.tsx","./components/customComponent/CustomComponent/CustomComponent.tsx","./components/community/Navbar/NavbarWidget.tsx","./components/community/Breadcrumb/BreadcrumbWidget.tsx","./components/messages/TopicWithThreadedReplyListWidget/TopicWithThreadedReplyListWidget.tsx","./components/featured/content/FeaturedContentWidget/FeaturedContentWidget.tsx","./components/messages/MessageListForNodeByRecentActivityWidget/MessageListForNodeByRecentActivityWidget.tsx","./components/messages/RelatedContentWidget/RelatedContentWidget.tsx","./components/messages/MessageView/MessageViewStandard/MessageViewStandard.tsx","./components/customComponent/CustomComponentContent/TemplateContent.tsx","../shared/client/components/common/List/UnstyledList/UnstyledList.tsx","./components/messages/MessageView/MessageView.tsx","./components/messages/MessageView/MessageViewInline/MessageViewInline.tsx","../shared/client/components/common/Pager/PagerLoadMore/PagerLoadMore.tsx","./components/customComponent/CustomComponentContent/HtmlContent.tsx","./components/customComponent/CustomComponentContent/CustomComponentScripts.tsx","../shared/client/components/common/List/UnwrappedList/UnwrappedList.tsx","./components/tags/TagView/TagView.tsx","./components/tags/TagView/TagViewChip/TagViewChip.tsx"],"appGip":true,"scriptLoader":[]}
Nimbostratus
StephanMantheyNacreous
Hi Manuel, do you try to setup a sync-failover device-group containing three units? To establish device trust I would recommend to force two units into offline state. Remove the machines from the existing sync-failover device-group (repeat on each machine if required) and delete the sync-failover device-group. Now reset the device trust on all machines. Next step will be to use the active machine to add both offline machines as peers. Now all three units should show up in each machine´s device list. On the active unit create a new device-group of type sync-failover with network failover enabled. Add all machines to the new device-group. This will be synced to all machines and you can release them from forced offline. Time for the initial sync now. Thanks, Stephan![\"F5](\"https://www.f5.com/content/dam/f5/f5-logo.svg\"){kind=logo}
