Example passing information to a application from APM

I guess this is more of a request for a how would I question then anything and hopefully example articles or blogs exist already.

What I would like to understand is after authenticating someone via APM how do I pass like the user information to the application, basically very very simple sso.

So maybe a some simple helloworld webcode that goes hello 'username' and maybe as a second step ignoring https what would be the correct way to encrypt that info maybe as a cookie?

And a little more advanced how you would do this with a simple app with username + password boxes so the APM would prefill the login with the info it already has ie sso.

Thanks in advance

application delivery

BIG-IP Access Policy Manager (APM)

Hi Ravager,

Your question inspired me to do some testing with passing APM session variables into sessionStorage. First I created an iRule to add the APM session variable into the sessionStorage of the webbrowser. And a simple webpage to query the browsers sessionStorage.

iRule:

when ACCESS_POLICY_COMPLETED {
    set username [ACCESS::session data get session.logon.last.username]

    set html "<!DOCTYPE html>"
    append html "<body onload=\"location.reload()\"></body><script lang=\"javascript\">"
    append html "if (typeof(Storage) !== \"undefined\") \{"
    append html "sessionStorage.setItem(\"username\", \"$username\");"
    append html "\}</script></html>"

    ACCESS::respond 200 content $html
}

HTML to put on the webserver:

<!DOCTYPE html>
<html>
<body>
<div id="result"></div>
<script>
if (typeof(Storage) !== "undefined") {
  document.getElementById("result").innerHTML = "Username: " + sessionStorage.getItem("username");
} else {
  document.getElementById("result").innerHTML = "Sorry, your browser does not support Web Storage...";
}
</script>
</body>
</html>

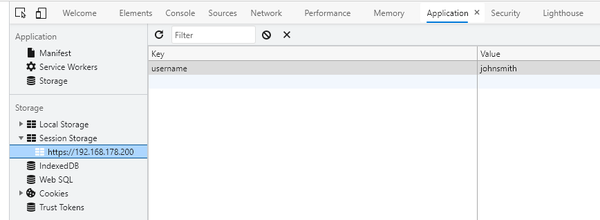

Here you can see the username is put into the browsers sessionStorage.

Like always with the F5 BIG-IP, there is more than one way to do it. For example, you could also use HTTP Headers to pass information from APM to the web application. See:

K74392192: How to insert APM Variables in backend headers to the application server

https://support.f5.com/csp/article/K74392192

3 Replies

Daniel_Wolf
MVP
Jul 10, 2021
Hi Ravager,

you could start with something easy, setup an NGINX web server with basic auth. See this tutorial:
https://docs.nginx.com/nginx/admin-guide/security-controls/configuring-http-basic-authentication/
This is gonna be your pool member. Test basic auth by accessing the webserver directly, without the BIG-IP.

Next you will setup an APM Access Policy of the type LTM-APM with SSO Credential Mapping and create an HTTP Basic SSO configuration.

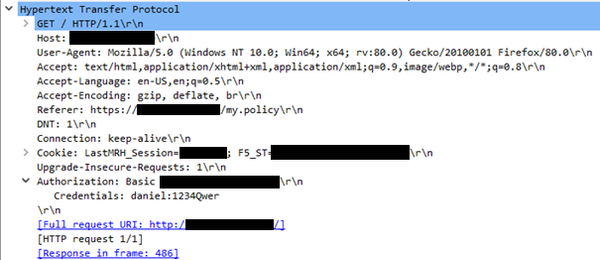

With the HTTP Basic method of authentication, the SSO plug-in uses the cached user identity and sends the request with the authorization header. This header contains the Basic token and the base64-encoding of the user name, colon, and the password. Example from tcpdump:
See this Manual Chapter: Creating an HTTP Basic SSO configuration.

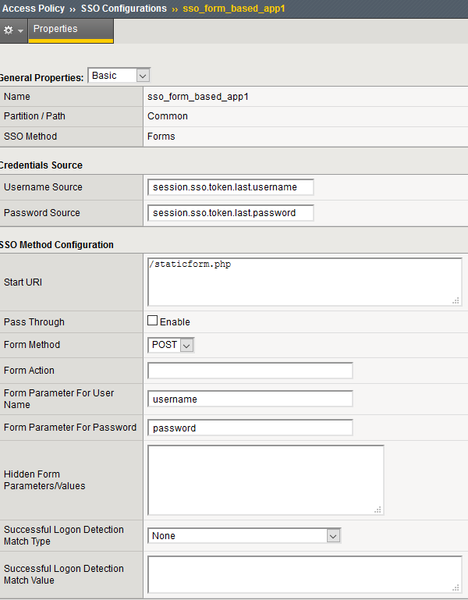

Another simple form of SSO would be an HTTP forms-based SSO. With this method the BIG-IP will send the username and password as a HTTP form-based POST request to the application. Here is an example, you have to specify the parameter names for username, password and Start URI.
See this Manual Chapter: Creating an HTTP forms-based SSO configuration
You can find some HTML snippets for a form-based auth website here: https://www.w3schools.com/howto/howto_css_login_form.asp

Is this useful for you?

KR
Daniel
