Device Status is not showing in Device management

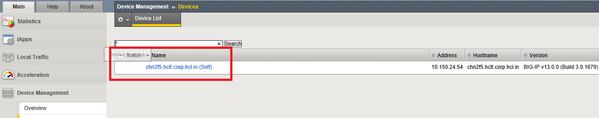

Device Status is not showing



After Uploading the old device UCS I am unable to see the device status and along with I am unable to make HA whenever we tried to add peer its giving device not found however i am able to ping the device vice versa.



application delivery
LTM
  • Andy_McGrath's avatar
    Andy_McGrath
    Icon for Cumulonimbus rankCumulonimbus
    Nov 27, 2017

    A little unclear on what your doing. Did you have a working HA pair then up loaded one from an old UCS file?



    Check the Trusted Peer devices on both devices:



    Device Management ›› Device Trust : Peer List



    If you have them listed delete them, confirm all your HA configuration is correct (ConfigSync, Failover Network etc.) on each device and then do an Add Peer.



    For the Add Peer use the management address if possible, if not ensure the Self IP Port Lockdown is set to Allow Default or Allow All.
