Credentials are not passed with APM and Single Sign-on

I created an access policy that authenticates via LDAP for Exchange. I am able to log get past the APM login page, but my credentials are not passed to OWA. After passing authentication via APM, I get the OWA login page instead of an automatic login to OWA.



I have the following setup:





SSO Configurations-> Client-Initiated



I created a form with the following parameters:



Form Parameters:



password %{session.sso.token.last.password}



username %{session.sso.token.last.username}



Form Detection (Request URI):



/owa/auth/logon.aspx?replaceCurrent=1&url=



/owa/auth/logon.aspx?url=



Logon Detection (Cookie Name): sessionid



Advanced Settings: Javascript Injection: clkLgn()

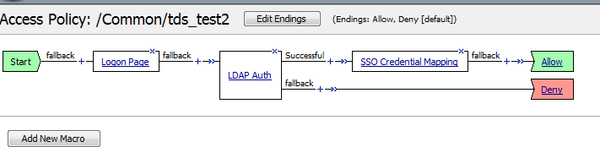

The SSO form is applied to the access policy.



Thanks.



4 Replies

  • mnb_63148's avatar
    mnb_63148
    Icon for Nimbostratus rankNimbostratus
    Jun 09, 2015
    I am receiving the following error in the APM log, "Could not find SSO username, check SSO credential mapping agent setting." Also, when I click the "View Session Variables" link in the APM report, it is blank.
  • boneyard's avatar
    boneyard
    Icon for MVP rankMVP
    Jun 14, 2015

    you didn't make any modifications in any of the fields, for example user different variables for your logon?



    you are sure the correct policy is used and it is updated?



  • boneyard's avatar
    boneyard
    Icon for MVP rankMVP
    Jun 15, 2015

    just shooting from the hip here, you could try an LDAP lookup after the LDAP auth.



  • Stanislas_Piro2's avatar
    Stanislas_Piro2
    Icon for Cumulonimbus rankCumulonimbus
    Jun 16, 2015

    Can you add a logging box at the end of the policy to log



    • session.sso.token.last.username
    • session.logon.last.username

    and validate sso username variable is provisioned
