NimbostratusConnectivity to the node.
my bigip ltm mgmt ip is : 192.168.1.57 and self ip is : 10.8.3.28 backend servers are as follows 1. 10.8.3.27--server1 2. 10.8.3.159--server2 3. 172.16.2.60--server3 I successfully added the 3rd node but the problem is that i dont know how i added the third node because i have no self ip to communicate to this subnet and no added route also. any idea how the node added?and it is working fine also.like i can ping gateway. best regards thanks
11 Replies
Stanislas_Piro2Cumulonimbus
Hi,
Is it working or monitor is working?
if no route is created on tmm, monitor will use Mgmt routes.
- RaghavendraSY
Altostratus
Hi,
Can you please provide route table. command to get route detail is mentioned below.
netstat -nr
or

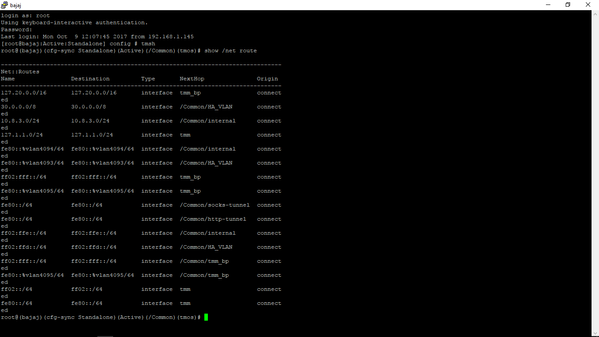

tmsh show /net route
- RaghavendraSY
You can remove any confidential information and update requested routes only
mukul- Stanislas_Piro2
To list all routes including mgmt routes, use the
commandnetstat -rn
RaghavendraSY_7Hi,
Can you please provide route table. command to get route detail is mentioned below.
netstat -nr
or
tmsh show /net route
- RaghavendraSY_7
You can remove any confidential information and update requested routes only
- mukul
- Stanislas_Piro2
To list all routes including mgmt routes, use the
commandnetstat -rn
