Rodrigo_Mori_13
Cirrus
CirrusConfiguring Syslog Server for a Specific Virtual Server
Hi, guys

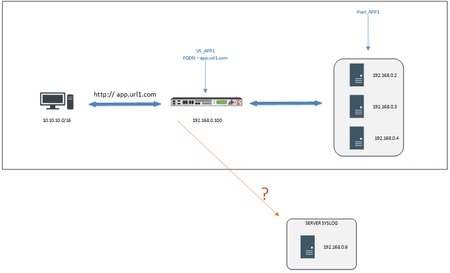

I have an application in BIG IP, according to the image.
I need all the IPs that have accessed VS_APP1 to be registered on the syslog server.
Someone could help me set this up...
Greetings,
I haven't used the virtual server's Request Logging profile much, but was able to create a profile that logs the source IP address of the connecting client:
In the Request profile Template section, I simply entered:
Client IP is: ${CLIENT_IP}
And it was sent to the remote syslog:
14:10:53.969588 IP 10.12.23.120.48392 > 10.12.23.27.514: [|syslog] 0x0000: 4500 0037 cb69 4000 ff11 6da1 0a0c 1778 E..7.i@...m....x 0x0010: 0a0c 171b bd08 0202 0023 7989 436c 6965 .........y.Clie 0x0020: 6e74 2049 5020 6973 3a20 3130 2e31 322e nt.IP.is:.10.12. 0x0030: 3235 302e 3133 30 250.130Hope this is useful!
Kevin
Greetings,
I haven't used the virtual server's Request Logging profile much, but was able to create a profile that logs the source IP address of the connecting client:
In the Request profile Template section, I simply entered:
Client IP is: ${CLIENT_IP}
And it was sent to the remote syslog:
14:10:53.969588 IP 10.12.23.120.48392 > 10.12.23.27.514: [|syslog]
0x0000: 4500 0037 cb69 4000 ff11 6da1 0a0c 1778 E..7.i@...m....x
0x0010: 0a0c 171b bd08 0202 0023 7989 436c 6965 .........y.Clie
0x0020: 6e74 2049 5020 6973 3a20 3130 2e31 322e nt.IP.is:.10.12.
0x0030: 3235 302e 3133 30 250.130
Hope this is useful!
Kevin
Rodrigo_Mori_13Cirrus
CirrusIn case, for me to send the log to the "Local 6" Syslog server, how can this be done?
