BIGIP SSH Proxy Not working properly

Hi All,   Client system --------> BIGIP (SSH Proxy) ---------> Backend Server (key1) (Key2) (public key1 , Public Key2) (192.168.40.56) (Vip:192.168.42...
AFM
application delivery
LTM
security
Tikka_Nagi_1315's avatar
Tikka_Nagi_1315
Historic F5 Account
May 12, 2017

I believe one of the issues is that your keys are missing the header and footer information.



-----BEGIN RSA PRIVATE KEY----- <== (key text) <== -----END RSA PRIVATE KEY----- <==



In any case, the following steps produce a working system in my lab:



CLIENT: 1. Generate a new RSA key pair on the client (ssh-keygen)



BIGIP 1. Create a new RSA pair public/private key in BigIP using: ssh-keygen

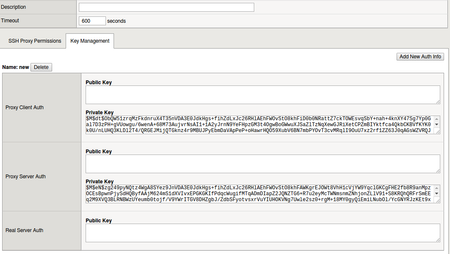

  1. Create a new ssh proxy profile with default actions (allow). Under the key management: a. Add BigIP RSA keys in Proxy Client Auth. Note we delete comment in public key and we add header and footer in private key.



    Public Key: ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAuv0xrDHO/Hk+oF5qIQyg/1qoUm2uSnZ7Wyca1IrpmXELEITmtCZevPfkX20Yebuubl7W4f5eisHa0mvy4Gb/WuUbXmTkt7TRaKgJPwARuYDphtoZM6GrIukkSrJRqbZlZ+tbHL5lrGdAfIxTlGLxzu+LKxhJo8Ldn+oBw8KZp1MqJjYiFiDocymSY/sHrEaLxUHZRCOANsVQfzo8yBWGl5V4jJB9ZeqOabApLNBd1wf0bGQoL+YI++44rYTm3gS7oNVVHDOYJYBBIpmUFk70TcedqAAXRXVKRFtYsd50iQazwck/pDn40iq7l1VPeHh3KD70d5VLpDTNF9hC9KH3kQ==



    Private key: -----BEGIN RSA PRIVATE KEY----- MIIEoQIBAAKCAQEAuv0xrDHO/Hk+oF5qIQyg/1qoUm2uSnZ7Wyca1IrpmXELEITm tCZevPfkX20Yebuubl7W4f5eisHa0mvy4Gb/WuUbXmTkt7TRaKgJPwARuYDphtoZ M6GrIukkSrJRqbZlZ+tbHL5lrGdAfIxTlGLxzu+LKxhJo8Ldn+oBw8KZp1MqJjYi FiDocymSY/sHrEaLxUHZRCOANsVQfzo8yBWGl5V4jJB9ZeqOabApLNBd1wf0bGQo L+YI++44rYTm3gS7oNVVHDOYJYBBIpmUFk70TcedqAAXRXVKRFtYsd50iQazwck/ pDn40iq7l1VPeHh3KD70d5VLpDTNF9hC9KH3kQIBIwKCAQACq9h7JUhxUjBwAVlJ nXADpd3VSrWwm0rns8I2PH+uE+aO3VPAvrg15ki/iN9vdA12mvRw8VkfPUicmyRi Sp0/eE0w5C8nMiA/qqEL3xYyMWJr+80o91aPIJZ2GH2CbKmtXspxyDSnCMoQaGeY EArEyOhjW8aJp1rv/6+RbNZPMLTb6zcKngiUk/Rs324QYDGqXiDkGRjahrMKF4sH ERPtLJzI6Qc5ybmKu/VEMlWIt+sOAoNnJOQ76+H/u6TuTFrKy3q0jR2wJ9A4oPXZ SgGjNCiMTV9ZYLn1FgURgcknQgzE5tmyRUPoPFoMczXS8VpFKLXgOmFNabUnWjRN qRfrAoGBAOTC8BECIso5+dul4layUHN1xcyVd1kU4Gs4HP8SeRV4VNSsjJWqccIJ vAyaSPmW1q80rUbWMQtXKGHrGyxld1Yu4uDreVednFqgLCCdvumDA+Bp4Z83hA+U 5Zwddm7x/5bsNdrWXW2oFnl1puEvT3K9NSgz84+DZLZlhXmQHU3JAoGBANFA9QQs x8WYuuD5AJh/qIO5vw5Pz1thD/CErTnG8P5FDcTwS+3uUBBwjwvsxADd5v9jBvMl npVCRgrVGqFPrJH+TubSJCJdAPcGajoOU5gqgKbg9mWdfmGrcFnK6wTa957+c94O 6/mpk6K6LbabKlWB6BDzqyD16I3vqHwoSB+JAoGBAN45tgHk0Va7+giShBm0iKqs 7AiRMhwFps6OSA26LHtBsX4j9kg/LK3dkhrfBQ+3GbGDoQL79SD1lPFoC8S6Vqt+ APfALLuDKiwmkURBd6EC7dKv/789PnWJVBP/XRtRe/GyQvHXjfV+tr8h1U/HjwG/ HbIGlNSORJPtl5qpQQm7AoGAa52/1kLqZZ8BBfxmtNPwQ76cxYghf3O/DfsXQkkO OZ/bMhUuXRt5og4AbIhkzT7r08yHOzfrKDC2Tra9PQRnYQZxuIlUaXGouY5FQm3E l2ZQytoYUYQyXh2nfqLfRFNaxswBEx2d7hyyU7A0xE/MoQD7AWdfUsecK70U0iNY SrsCgYBLJKEp7vxt1Xr4VgJm0EiqQc4fdbTuL6TNT6Cr86WjR6kJ63ixpYDJ7Qp+ RRUZugumO8/YyjB/csYSMcuw+/nVpwXBk6SHiL2MWG9bsW5MBc7DBomXr5S/UXKu H8PSW0AgehbQ0v4QtmpsEwiyk+6R5sHCQhSJGw1uU2pYd6YoFg== -----END RSA PRIVATE KEY-----



b. Add client RSA private key (/root/.ssh/id_rsa) in Proxy Server Auth > Private Key c. Add server RSA public key (/etc/ssh/ssh_host_rsa_key.pub) in Real Server Auth d. Generate a new RSA key pair in client (ssh-keygen)



  1. Create the pool member with SSH server
  2. Create virtual server and add this pool member and set the SSH proxy profile

SERVER: 1. Confirm configuration of Authorized keys in sshd_config: [...] AuthorizedKeysFile /etc/ssh/authorized_keys AuthorizedKeysFile /root/.ssh/authorized_keys [...]



  1. Add BigIP and client's RSA public keys in /etc/ssh/authorized_keys:



    • Copy Client created in step 1.d public key (/root/.ssh/id_rsa.pub) in /etc/ssh/authorized_keys
    • Copy BigIP public key (/root/.ssh/id_rsa.pub) in /etc/ssh/authorized_keys

    Authorized_keys file example: cat authorized_keys ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDfLCZVQpBwBJ1vlZphNBul+GPr5EVgD2PvMolcoCd6D0XVeZ37Y0G/pLVyIS9Qy9nfBL1m4sLHS1RaZJQhu4gxHhlyCypg3ZO7xSI/9L36ZEBSgB4915BZgkVAiVWBB0m5JzVS7apjwe51oxuQv9VSQgHCAX4QNjLkPYy9B6ihdi7tEJ+mAp0Cjo9RBVCziH2si034AW56KpGPHDAVammt9D2fJY8xFrOQWMJedLw+nCknLQQ6ecgHsf+LrQkxb4JMNVUyZY81dVCOITm6K4eIQYeOpIGuIbmGqaIfJUDNiPEE7toK3NT40ojPltCbWAtwYl1OJ5oJIVrrwVzdJdax root@client2 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAuv0xrDHO/Hk+oF5qIQyg/1qoUm2uSnZ7Wyca1IrpmXELEITmtCZevPfkX20Yebuubl7W4f5eisHa0mvy4Gb/WuUbXmTkt7TRaKgJPwARuYDphtoZM6GrIukkSrJRqbZlZ+tbHL5lrGdAfIxTlGLxzu+LKxhJo8Ldn+oBw8KZp1MqJjYiFiDocymSY/sHrEaLxUHZRCOANsVQfzo8yBWGl5V4jJB9ZeqOabApLNBd1wf0bGQoL+YI++44rYTm3gS7oNVVHDOYJYBBIpmUFk70TcedqAAXRXVKRFtYsd50iQazwck/pDn40iq7l1VPeHh3KD70d5VLpDTNF9hC9KH3kQ== root@bigip1.org
