Application not working with http-profiles

hello,



our main company-application (java-based application on apache/tomcat-server, runs in browser) is behind an LTM (v14.1), has different ports (e.g 4420 ff).



in the near future I've got to implement APM for SingleSignOn, for this I need to activate a http-profile, but if I do this, the application doesn't work anymore.



Some portal-sites of this application running on port 80 or 443 are working with http-profiles.



Is there a way to get the VS with non-http standardports running with http-profiles or could you give me a way, how to and what to inspect to find out, how to get this work?

application delivery
http-profile
LTM

2 Replies

  • JoshBecigneul's avatar
    JoshBecigneul
    Icon for MVP rankMVP
    Jul 30, 2019

    Is the traffic moving over the non-standard ports actually using HTTP? In general that is a requirement for APM.



    I've run into Java applet based apps having issues with hardcoded hostnames, but that's only a guess at what could be causing your problem.

  • kgaigl's avatar
    kgaigl
    Icon for Cirrocumulus rankCirrocumulus
    Jul 31, 2019

    Hello Josh,

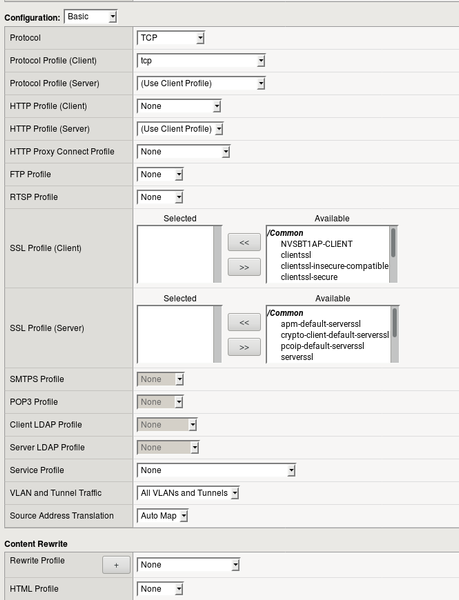

    i'm not sure about your question, but it looks like this:
