APM: Strip off path from Landing URI

Question

Hi,
Currently I'm working on an APM-Policy and I'm facing an issue with a temporary URI.
Scenario: I want to implement different Sign-On-Methods and an error-fallback for a failed login.
So the idea is to have a landing-URI, with branches for /ad , /google and a fallback to an error-login-page with /error.
If I connect to test.com/ad - the Logon-Page for AD-Authentication should appear (username/pw). If I connect to test.com/google - Logon-Page for 2-Factor should appear (username/pw/googleauthcode). If I enter the wrong code, I should be redirected to test.com/error and get another 2F-logon page with a customized text (wrong code) and again the 3 fields for authentication.
Now, if I use the default "Allow"-Ending in the policy editor, the URL that is forwarded to the webserver is test.com/ad, which causes a 404 error. So the best thing would be to strip off the path after the landing page. I tried to achieve this with an iRule-event, but it doesn't work as expected.

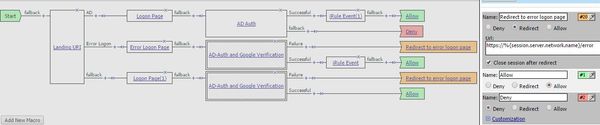

Here's my Policy and the iRule :
when ACCESS_POLICY_AGENT_EVENT {
 if { [ACCESS::policy agent_id] eq "strip_off_path" } {
   if { [string tolower [HTTP::uri]] starts_with "/ad" } {
     HTTP::uri "/"
   } elseif { [string tolower [HTTP::uri]] starts_with "/error" } {
         HTTP::uri "/"
   } else {
   }
  }
}
Any ideas? Is it possible to strip off the HTTP::uri with an alternative ending in the policy itself (without iRule)? If I use a redirect-ending to "https://%{session.server.network.name}" I get back to the 2F-Logon-Page again (Landing URI fallback)
Thanks &amp; BR

leonardo_souza · Answer

The iRule you have should work.&nbsp;
Can you put some logs in the iRule and check what happens?
We want to check if the iRule is triggered, also the URI before and after the change.&nbsp;
Also, I would suggest you to use the HTTP::path, as that is a subset of the URI, so smaller and consequently more efficient.
Anyway, they idea continue to be the same.&nbsp;
https://devcentral.f5.com/wiki/irules.http__path.ashx&nbsp;

stan_piron · Answer

Hi,
HTTP::uri and HTTP::path doesn't work in Policy evaluation (except if in clientless mode). during policy evaluation, uri is always /my.policy.
if you want to evaluate landing uri (URI the user entered before redirecting to /my.policy), you can work with this irule:
&nbsp;
when ACCESS_SESSION_STARTED {
    switch -glob -- [set landinguri [ACCESS::session data get session.server.landinguri]] {
        "/ad/*" {
            log local0. "Path before iRule: $landinguri"
            set newlandinguri [string map -nocase {"/ad/" "/"} $landinguri]
            ACCESS::session data set session.server.landinguri $newlandinguri
            log local0. "Path after iRule: $newlandinguri"
            log local0. "Logon type iRule: ad"
            ACCESS::session data set session.custom.logontype "ad"
        }
        "/error/*" {
            log local0. "Path before iRule: $landinguri"
            set newlandinguri [string map -nocase {"/error/" "/"} $landinguri]
            ACCESS::session data set session.server.landinguri $newlandinguri
            log local0. "Path after iRule: $newlandinguri"
            log local0. "Logon type iRule: error"
            ACCESS::session data set session.custom.logontype "error"
        }
    }
}

&nbsp;
this irule raise before VPE evaluation and you can then replace landinguri box with a box using branches:
&nbsp;
ad : expr {[mcget {session.custom.logontype}] equals "ad"}

error : expr {[mcget {session.custom.logontype}] equals "error"}

&nbsp;
if you want to rewrite all requests starting with /ad/ and /error/, you can use this irule (raise after HTTP_REQUEST and for all requests allowed by APM, you can use this irule:
&nbsp;
when ACCESS_ACL_ALLOWED {

switch -glob -- [set uri [HTTP::uri]] {
        "/ad/*" {
            log local0. "Path before iRule: $uri"
            set newuri [string map -nocase {"/ad/" "/"} $uri]
            HTTP::uri $newuri
            log local0. "Path after iRule: $newuri"
        }
        "/error/*" {
            log local0. "Path before iRule: $uri"
            set newuri [string map -nocase {"/error/" "/"} $uri]
            HTTP::uri $newuri
            log local0. "Path after iRule: $newuri"
        }
    }
}

&nbsp;
