About throughput

Hello,

When I went to check the throughput of F5, I found a lot of information as shown in the figure below :

I tried to understand through the official F5 link below, but there are still a few questions I would like to ask
https://support.f5.com/csp/article/K50309321

1. If I just look at the throughput of the client coming in to F5, the service value and In value of Throughput is not there, right? Should I be looking at the file with the In values for the TMM client?

2. What is the meaning of multiplying 8 within the formula? Why is it multiplied by 8 ?

3. I see are per second capture value, but the above has current time, interval how to bring into the formula to calculate the?

Any help is appreciate.

  • You are comparing the value of 208 K which is all ingress traffic on all interfaces

    with a Value of 28K that something IN and something OUT.

    What are you trying to do? I don't think adding things will give you something that you'll expect.
    That's because of  different things that affect the throughput. See below.

    Have a look at the number of packets IN and packets OUT. You will see that you have more than twice the number of packets coming in than going out.

    I don't think it works that way. you have throughput in and throughput out.

    Also be aware of different options that affect the throughput, like oneconnect, HTTP cache, compression, irules

    https://support.f5.com/csp/article/K9077





  • 1.  That article is pretty good at explaining.
    The traffic flow from a client is seen as In to a virtual server and In to a server. Likewise, the response from the server is seen as Out from the server and Out from the virtual server.

    Client IN -> Server IN

    Client Out <- Server Out

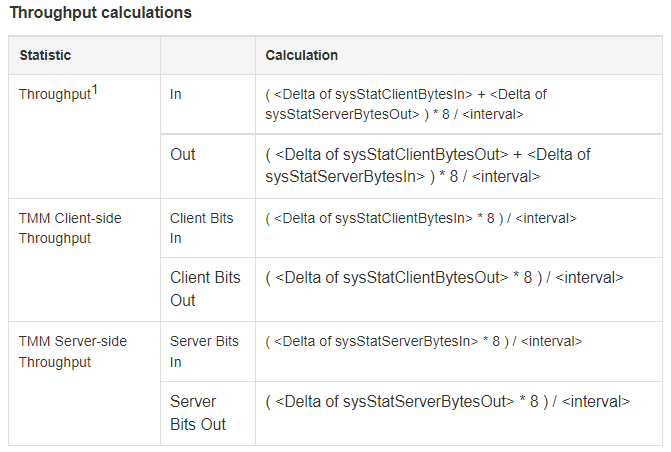

    2. Because the counters are in bytes example sysStatClientBytesOut , to convert it to bits , it is multiplied by 8. Because a byte has 8 bits

    3.  The counters have predefined intervals , like this for example:

    sysStatClientBytesOut1m

    sysStatClientBytesOut5s

    sysStatClientBytesOut5m



    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi mihaic,

      Thanks for your reply.

      About the counters have predefined intervals,
      What is <interval> value in "tmsh show sys performance throughput detail" ?


    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi mihaic,

      I found Throughput In is  [<Clients bits in> + <Server bits Out>]

      However, I found that according to the data on the table, there is a big difference in adding up to each other ...

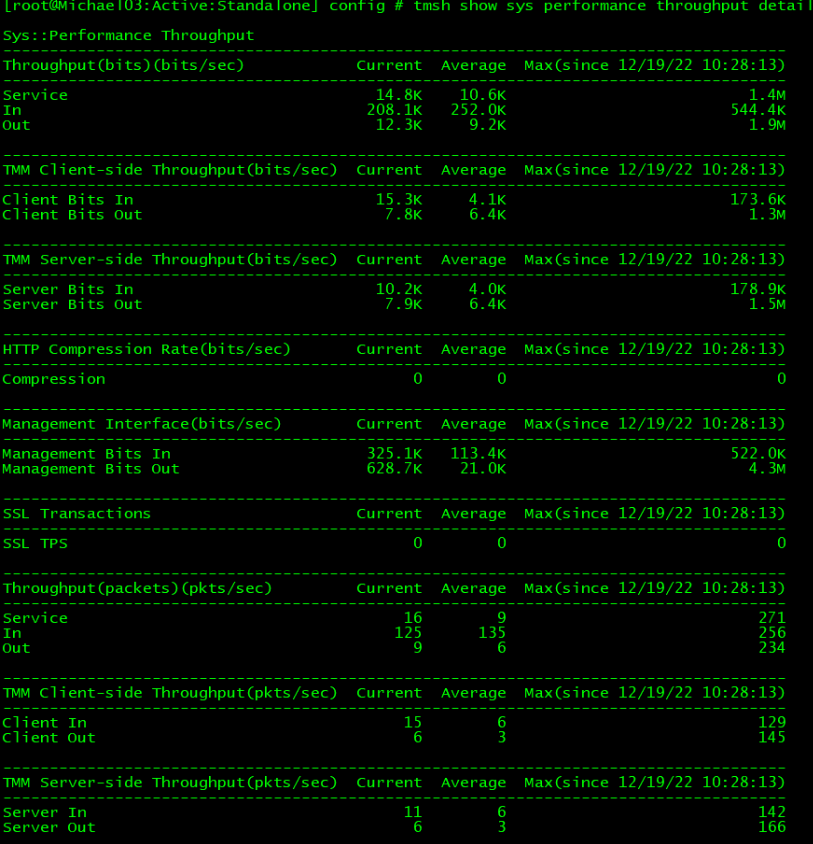

      ( 15.3k + 7.9k = 208.1 k ... ? )

  • I think those values are like a snapshot. They are the values at the moment of the capture, let's say.



    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi mihaic,

      Thanks for your reply.

      So Current's interval is 1 ... ?

  • probably it is 1 s. Not sure.

    Client IN -> Server IN

    Client Out <- Server Out

    15.3k + 7.9k = 28.2 K    not 208 K

    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi mihaic,

      Thanks for your reply.
      But why does the picture show 208.1K...

  • well it is written in that article.

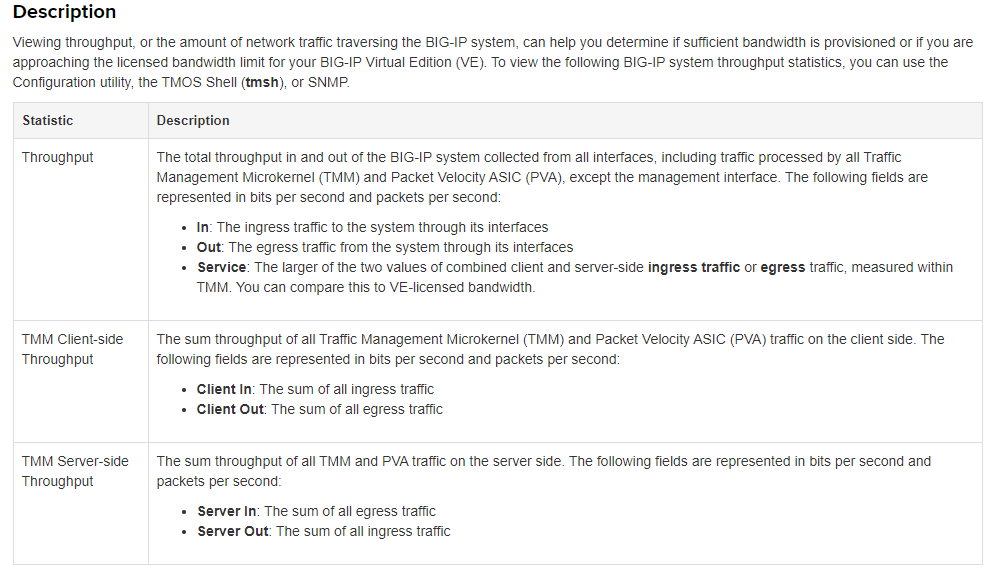

    The total throughput in and out of the BIG-IP system collected from all interfaces, including traffic processed by all Traffic Management Microkernel (TMM) and Packet Velocity ASIC (PVA)

    • In: The ingress traffic to the system through its interfaces
    • Out: The egress traffic from the system through its interfaces

    In : means total ingress traffic on all interfaces except management.



    • Michaelyang's avatar
      Michaelyang
      Icon for Cirrostratus rankCirrostratus

      Hi mihaic,

      yeah...But my F5 is VE version...
      So there should be no need to take into account the PVA piece...

      It looks like TMM Client-side throughput already has the sum of all traffic...
      So it should be 28.2 K, but it is showing 208.1 K...
