Forum Discussion

Sodamax's avatar
Sodamax
Icon for Altostratus rankAltostratus
Apr 03, 2023

2 Way SSL not working as client certificate length is 0

I have already config about Client certificate is request, But not working. Can anyone please help me or guide me.  
f5
handshake
security
ssl2ways
CA_Valli's avatar
CA_Valli
Icon for MVP rankMVP
Apr 03, 2023

So, if I interpreted this correctly.

Your current scenario has a certain service that requires SSL client authentication and is working as intended.

You need F5 to proxy this traffic. Will it still forward traffic to "original" destination, or will it be a new service with a different fqdn? Also, do you plan on using F5 to offload the SSL from your original service, or do you still need encrypted comunication between f5 <> real server?

In your tests via F5, are you testing traffic "directly" with F5 IP or have you configured a "hosts file"/dns entry to point to F5?

This will help us understand better which profiles are required and what options you should enable 🙂

Regards

CA

  • Sodamax's avatar
    Sodamax
    Icon for Altostratus rankAltostratus
    Apr 04, 2023

    Yes, I still need encrypted comunication between f5 <> real server and I testing traffic "directly" with F5 IP.

    How to config on F5 for send client certificate to destination server?

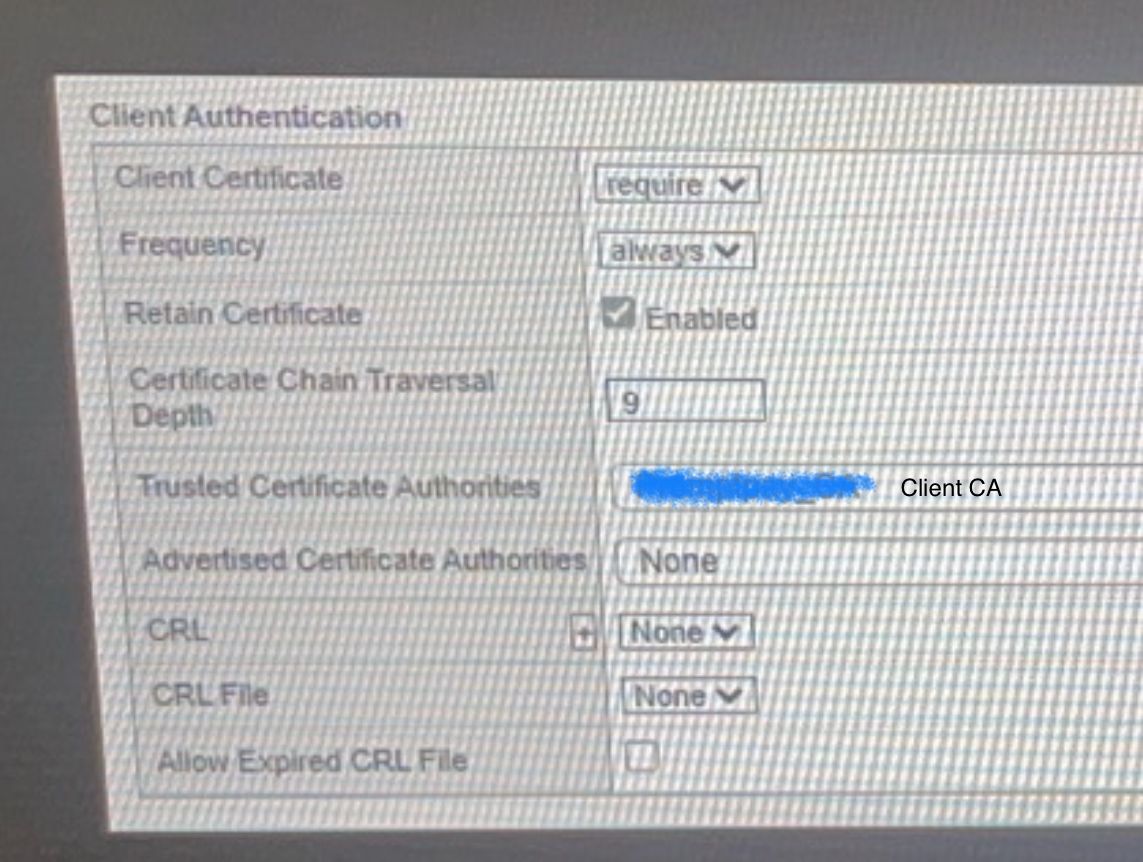

    This my config

    Thanks
