Running Wireshark captures from F5 BIG-IP
My colleague, Simon Kowallik, recently posted something really cool to our internal message boards. It started with the question: “Have you ever wanted to run captures with Wireshark on BIG-IP?” Answer: Yes, for like twelve years I wanted to do this! In the post below, Simon shows us how to use the packet tracing tool Wireshark (or any other tool that reads pcaps from tcpdump) directly with BIG-IP using only some slight of hand. Anyway, I thought this was so awesome that it deserved wider audience so here it is, republished with Simon’s permission. Have fun! Posted by Simon Kowallik in on Jul 7, 2013 9:02:38 AM We actually can do that without installing X, wireshark and hundreds of libraries on BIG-IP. Which is not an option anyway. 🙂 There are a few things we need: SSH access to the BIG-IP, bash or tmsh is fine Proper SSH client on our Desktop, eg. OpenSSH or alternatives (putty & plink) The trick is to launch an ssh session without a login shell and run tcpdump through it on the remote system making tcpdump write raw packets to STDOUT while piping it to our local wireshark reading from STDIN. Here are two examples: cygwin on Windows # ssh -l root 192.168.1.245 "tcpdump -w - -s0 -pi 0.0 tcp or udp or icmp" | /cygdrive/c/Program\ Files/Wireshark/Wireshark.exe -k -i - Linux # ssh -l root 192.168.1.245 "tcpdump -w - -s0 -pi 0.0 tcp or udp or icmp" | /usr/bin/wireshark -k -i - Windows CMD with plink (download from putty homepage): plink.exe -l root -pw default 192.168.1.245 "tcpdump -w - -s0 -pi 0.0 tcp or udp or icmp" | "c:\Program Files\Wireshark\wireshark.exe" -k -i - I think you can figure out how it works. If not, here are a few hints: Tcpdump's option -w with - as an argument writes to STDOUT instead of a file Wireshark's -i option reads from an interface, - as an argument makes STDIN the interface. STDIN/STDOUT is represented by - on most platforms. Caveats Tcpdump does buffer the output when writing to a file (our STDOUT in our case), which unfortunately means it might take some time until we can see the traffic in wireshark. Tcpdump offers options to influence the buffering however this is not implemented in our version of Libpcap (tested on 11.4HF1). This is especially annoying if we want to capture low volume traffic. What we could do is capturing icmp echo requests+replies additionally to the traffic we are interested in, and remove them again with the wireshark display filter. Then start a ping to push the interesting packets to wireshark faster. Words of warning You are piping the whole packet capture through ssh, so make sure you define your tcpdump filter reasonable, otherwise bad things might happen. Connect with David: Connect with F5:
8. SYN Cookie: Troubleshooting tcpdump

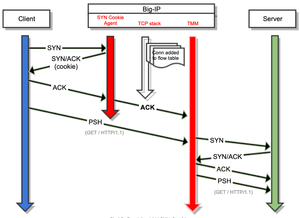

Introduction In this troubleshooting article, I will explain what traffic is expected to collect in a tcpdump capture during an ongoing attack. In this way you can compare with your own environment and understand why you see what you see. Use cases In this section I will show you the most common SYN Cookie configurations and how they affect to the traffic that reach BIG-IP. For each use case I add a diagram explaining the role of each party, so you can use it as a rerefence when reviewing captures. Note that, as a rule of thumb, in tcpdump captures you will see only traffic reaching red TMM arrow in diagrams. FastL4 + Hardware SYN Cookie Fig15. FastL4 + HW SYN Cookie When enabling SYN Cookie hardware offloading in FastL4 you must have into account that, regardless if FastL4 profile is configured as EST or SYN for ‘PVA TCP Offload State’ the capture will be similar to the one I paste below. Also note that colours in captures match with the diagram above, that is, blue (on the left) for client, red (next to blue and green) for BIG-IP and green (on the right) for server. BLUE: 10:55:30.650614 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [S], seq 1486117989, win 5840, options [mss 1460,sackOK,TS val 257012221 ecr 0,nop,wscale 6], length 0 10:55:30.651084 IP 10.10.20.212.80 > 10.10.10.10.33669: Flags [S.], seq 2770916048, ack 1486117990, win 4380, options [mss 1460], length 0 10:55:30.651115 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 10:55:30.651271 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167 RED: 10:48:27.666478 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [.], ack 2770916049, win 5840, length 0 in slot1/tmm3 lis= 10:48:27.666793 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [P.], seq 0:167, ack 1, win 5840, length 167: HTTP: GET /zarapito HTTP/1.1 in slot1/tmm3 lis=/Common/fwd 10:48:27.667073 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [S], seq 1486117989, win 5840, options [mss 1460], length 0 out slot1/tmm3 lis=/Common/fwd 10:48:27.667245 IP 10.10.20.212.80 > 10.10.10.10.33669: Flags [S.], seq 3169243726, ack 1486117990, win 64240, options [mss 1460], length 0 in slot1/tmm3 lis=/Common/fwd 10:48:27.667586 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 out slot1/tmm3 lis=/Common/fwd 10:48:27.667588 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167: HTTP: GET /zarapito HTTP/1.1 out slot1/tmm3 lis=/Common/fwd GREEN: 09:54:39.236239 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [S], seq 1486117989, win 5840, options [mss 1460], length 0 09:54:39.236264 IP 10.10.20.212.80 > 10.10.10.10.33669: Flags [S.], seq 3169243726, ack 1486117990, win 64240, options [mss 1460], length 0 09:54:39.236692 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 09:54:39.236707 IP 10.10.10.10.33669 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167: HTTP: GET /zarapito HTTP/1.1 09:54:39.236728 IP 10.10.20.212.80 > 10.10.10.10.33669: Flags [.], ack 168, win 64073, length 0 There are three important things you can observe in above captures: TCP options are lost in this example. This is because SYN Cookie is offloaded in hardware and for this mode currently only MSS value is trasfered from client side to server side, with some limitations. Check article dedicated to 'Hardware Vs Software' in this article series. In BIG-IP you cannot see the first two packets of TCP 3WHS (SYN and SYN/ACK). This is because hardware is in charge of validating SYN Cookie, since tcpdump is capturing traffic in TMM you only see last ACK packet. Also note that SYN sequence number sent by client to BIG-IP is the same than the one BIG-IP sends to Server. FastL4 + Software SYN Cookie Fig16. FastL4 + SW SYN Cookie In this case, although you are using an accelerated profile (FastL4), since software is handling the TCP 3WHS this allows you to see all packets when you run a traffic capture. Blue is on the left, red in the middle, green on the right. BLUE: 17:32:15.588706 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [S], seq 2986408498, win 5840, options [mss 1460,sackOK,TS val 262963455 ecr 0,nop,wscale 6], length 0 17:32:15.588973 IP 10.10.20.212.80 > 10.10.10.10.34527: Flags [S.], seq 2739000888, ack 2986408499, win 4380, options [mss 1460], length 0 17:32:15.588996 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 17:32:15.589119 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167 RED: 17:25:11.566071 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [S], seq 2986408498, win 5840, options [mss 1460,sackOK,TS val 262963455 ecr 0,nop,wscale 6], length 0 in slot1/tmm3 lis= 17:25:11.566095 IP 10.10.20.212.80 > 10.10.10.10.34527: Flags [S.], seq 2739000888, ack 2986408499, win 4380, options [mss 1460], length 0 out slot1/tmm3 lis=/Common/fwd 17:25:11.566321 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 in slot1/tmm3 lis= 17:25:11.566451 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167: HTTP: GET / HTTP/1.1 in slot1/tmm3 lis=/Common/fwd 17:25:11.566834 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [S], seq 2986408498, win 5840, options [mss 1460], length 0 out slot1/tmm3 lis=/Common/fwd 17:25:11.567058 IP 10.10.20.212.80 > 10.10.10.10.34527: Flags [S.], seq 4131626625, ack 2986408499, win 64240, options [mss 1460], length 0 in slot1/tmm3 lis=/Common/fwd 17:25:11.567344 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 out slot1/tmm3 lis=/Common/fwd 17:25:11.567346 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167: HTTP: GET / HTTP/1.1 out slot1/tmm3 lis=/Common/fwd GREEN: 16:31:24.339490 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [S], seq 2986408498, win 5840, options [mss 1460], length 0 16:31:24.339551 IP 10.10.20.212.80 > 10.10.10.10.34527: Flags [S.], seq 4131626625, ack 2986408499, win 64240, options [mss 1460], length 0 16:31:24.339987 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [.], ack 1, win 5840, length 0 16:31:24.340003 IP 10.10.10.10.34527 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, length 167: HTTP: GET / HTTP/1.1 As it happened in the previous example, BIG-IP does not ACK the HTTP request (PSH) sent by client because a FastL4 profile is being used, what it means that BIG-IP will act as a TCP transparent proxy between server and client. In other words, once correct TCP handshake has done BIG-IP will forward rest of this connection traffic to server directly. Standard + Hardware SYN Cookie Fig17. Standard + Hardware SYN Cookie The main difference in this case is that for Standard virtual server BIG-IP must act as a TCP proxy between client and server during all connection time. This means that BIG-IP sends ACK as response to PSH packet sent by client before this PSH is in fact received by the server. This image has the same color scheme as the first image. BLUE: 14:02:03.606740 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [S], seq 2828374030, win 5840, options [mss 1460,sackOK,TS val 259810460 ecr 0,nop,wscale 6], length 0 14:02:03.606861 IP 10.10.20.212.80 > 10.10.10.10.34522: Flags [S.], seq 2971392569, ack 2828374031, win 4380, options [mss 1460,sackOK,TS val 870079512 ecr 259810460], length 0 14:02:03.606885 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [.], ack 1, win 5840, options [nop,nop,TS val 259810460 ecr 870079512], length 0 14:02:03.607176 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 5840, options [nop,nop,TS val 259810460 ecr 870079512], length 167 RED: 13:55:00.128183 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [.], ack 2971392570, win 5840, options [nop,nop,TS val 259810460 ecr 870079512], length 0 in slot1/tmm4 lis= 13:55:00.128272 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [S], seq 2348737573, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 1607698719 ecr 0], length 0 out slot1/tmm4 lis=/Common/std 13:55:00.128496 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [P.], seq 0:167, ack 1, win 5840, options [nop,nop,TS val 259810460 ecr 870079512], length 167: HTTP: GET / HTTP/1.1 in slot1/tmm4 lis=/Common/std 13:55:00.128501 IP 10.10.20.212.80 > 10.10.10.10.34522: Flags [.], ack 167, win 14767, options [nop,nop,TS val 870079512 ecr 259810460], length 0 out slot1/tmm4 lis=/Common/std 13:55:00.128559 IP 10.10.20.212.80 > 10.10.10.10.34522: Flags [S.], seq 1953609172, ack 2348737574, win 65160, options [mss 1460,sackOK,TS val 1991641654 ecr 1607698719,nop,wscale 7], length 0 in slot1/tmm4 lis=/Common/std 13:55:00.128564 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [.], ack 1, win 14600, options [nop,nop,TS val 1607698719 ecr 1991641654], length 0 out slot1/tmm4 lis=/Common/std 13:55:00.128567 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 14600, options [nop,nop,TS val 1607698719 ecr 1991641654], length 167: HTTP: GET / HTTP/1.1 out slot1/tmm4 lis=/Common/std GREEN: 13:01:12.268012 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [S], seq 2348737573, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 1607698719 ecr 0], length 0 13:01:12.268103 IP 10.10.20.212.80 > 10.10.10.10.34522: Flags [S.], seq 1953609172, ack 2348737574, win 65160, options [mss 1460,sackOK,TS val 1991641654 ecr 1607698719,nop,wscale 7], length 0 13:01:12.268347 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [.], ack 1, win 14600, options [nop,nop,TS val 1607698719 ecr 1991641654], length 0 13:01:12.268355 IP 10.10.10.10.34522 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 14600, options [nop,nop,TS val 1607698719 ecr 1991641654], length 167: HTTP: GET / HTTP/1.1 Note that SYN sequence number sent by client to BIG-IP is different than the one BIG-IP sends to Server (2828374030 Vs 2348737573). This is because we are using Standard virtual server, so there are two independent TCP connections, one between client and BIG-IP and the second between BigIP and server. Again, as commented since in this example Hardware SYN Cookie is used we cannot see first two TCP handshake packets in the capture. Standard + Software SYN Cookie Fig18. Standard + Software SYN Cookie Apparently there are not any difference when capturing traffic of a client request when SYN Cookie is activated or disabled in this case. Only difference is that BIG-IP creates a SYN Cookie challenge and it adds it as a sequence number in SYN/ACK, but looking to capture this change is not clearly visible. We need to compare with log and stats to confirm that in fact SYN Cookie is enabled, also depending in config we can check as well TCP options passed to server side. Color scheme here is the same as the second image. BLUE: 14:32:58.966168 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [S], seq 3344434108, win 5840, options [mss 1460,sackOK,TS val 260274299 ecr 0,nop,wscale 6], length 0 14:32:58.966358 IP 10.10.20.212.80 > 10.10.10.10.34525: Flags [S.], seq 2686010241, ack 3344434109, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 3273182234 ecr 260274299], length 0 14:32:58.966398 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [.], ack 1, win 92, options [nop,nop,TS val 260274299 ecr 3273182234], length 0 14:32:58.966649 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 92, options [nop,nop,TS val 260274300 ecr 3273182234], length 167 RED: 14:25:55.405917 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [S], seq 3344434108, win 5840, options [mss 1460,sackOK,TS val 260274299 ecr 0,nop,wscale 6], length 0 in slot1/tmm1 lis= 14:25:55.405931 IP 10.10.20.212.80 > 10.10.10.10.34525: Flags [S.], seq 2686010241, ack 3344434109, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 3273182234 ecr 260274299], length 0 out slot1/tmm1 lis=/Common/std 14:25:55.406048 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [.], ack 1, win 92, options [nop,nop,TS val 260274299 ecr 3273182234], length 0 in slot1/tmm1 lis= 14:25:55.406355 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 92, options [nop,nop,TS val 260274300 ecr 3273182234], length 167: HTTP: GET / HTTP/1.1 in slot1/tmm1 lis=/Common/std 14:25:55.406359 IP 10.10.20.212.80 > 10.10.10.10.34525: Flags [.], ack 168, win 14767, options [nop,nop,TS val 3273182234 ecr 260274300], length 0 out slot1/tmm1 lis=/Common/std 14:25:55.406131 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [S], seq 2235159701, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 1609553998 ecr 0], length 0 out slot1/tmm1 lis=/Common/std 14:25:55.406524 IP 10.10.20.212.80 > 10.10.10.10.34525: Flags [S.], seq 3205875957, ack 2235159702, win 65160, options [mss 1460,sackOK,TS val 1993497007 ecr 1609553998,nop,wscale 7], length 0 in slot1/tmm1 lis=/Common/std 14:25:55.406527 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [.], ack 1, win 14600, options [nop,nop,TS val 1609553998 ecr 1993497007], length 0 out slot1/tmm1 lis=/Common/std 14:25:55.406531 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 14600, options [nop,nop,TS val 1609553998 ecr 1993497007], length 167: HTTP: GET / HTTP/1.1 out slot1/tmm1 lis=/Common/std GREEN: 13:32:07.645733 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [S], seq 2235159701, win 14600, options [mss 1460,nop,wscale 0,sackOK,TS val 1609553998 ecr 0], length 0 13:32:07.645820 IP 10.10.20.212.80 > 10.10.10.10.34525: Flags [S.], seq 3205875957, ack 2235159702, win 65160, options [mss 1460,sackOK,TS val 1993497007 ecr 1609553998,nop,wscale 7], length 0 13:32:07.646011 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [.], ack 1, win 14600, options [nop,nop,TS val 1609553998 ecr 1993497007], length 0 13:32:07.646022 IP 10.10.10.10.34525 > 10.10.20.212.80: Flags [P.], seq 1:168, ack 1, win 14600, options [nop,nop,TS val 1609553998 ecr 1993497007], length 167: HTTP: GET / HTTP/1.1 Note that, as in the previous example, SYN sequence number sent by client to BIG-IP is different than the one BIG-IP sends to Server (3344434108 Vs 2235159701). Conclusion At this point only one part left to have a complete picture of BIG-IP's SYN Cookie countermeasure functioning, so in next article I finish this series giving details about expected logs when SYN Cookie is working in our device.The Core Addendum: CTF Walkthrough
On the debut of my new show The Core on Tuesday, I got to share a few, but not all of the Wireshark exercises I had planned. In honor of Cybersecurity Awareness Month, I thought it appropriate to frame the activity in a capture the flag (CTF) format as is often offered at security conferences and increasingly as well through online learning platforms. All the exercises, my approach to solving them, and the answers are below. I worked from two packet captures from my local test BIG-IP system. Task 1.A - How many arp requests for 10.0.3.100? My approach to most tasks is to start with a wide net and work toward the narrow. So for this first one, I apply a generic arp filter. I could count from there, as you can see that there is at least one matching in packet 477, but instead, I can narrow the filter to the arp destination of the IP asked for. And with that, I have a final answer for this task of 5. Task 1.B - How many ping requests? For this task, following directions is necessary, as the request is for ping requests, not all pings. There could be even more icmp traffic at any given time, but this capture only has the request/response types. Our task is request only, which has an icmp type of 8. Final answer: 7 Task 1.C - How many multicast DNS queries for an "Elgato Key Light Air"? Wrapping up the first task focus, this can be accomplished one of two ways, with a generic mdns protocol filter or the dns.qry.name filter and then the contains operator for that string. Both results are the same, and the final answer here is 13. Task 2 - What’s the MAC address for the IP host 10.0.4.20? This one is pretty straight forward as well. I just need to find the IP address with the ip.addr filter and match the IP as source or destination to the MAC address, but this can be refined to ip.dst or ip.src so I only need to consider one. I use ip.dst in this case. Final answer: the mac address is 00:0c:29:b4:5c:90. Task 3 - What are the resolved names for the 00:0c:29:21:ad:4d and ff:ff:ff:ff:ff:ff MAC addresses? If you look atthe images above in Task 1A, you'll notice that the MAC addresses in the Source/Destination columns are raw. To enable name resolution, I need to change the preferences in Wireshark. And now I can see the resolved MAC names. Final answer: resolved MAC names are VMware_21:ad:4d and Broadcast (duh...), respectively. Task 4.A - What percentage of packets in the capture are handled by TMM0? This task is our first look at using the f5ethtrailer filter list, incorporating the f5ethtrailer.tmm filter. Note that in Wireshark versions of yesteryear you had to compile this into a custom Wireshark build yourself. But from v2.6+, it's included and at least in my latest version, also enabled by default. Final answer: 77.1% of the packets in this capture are handled by TMM0. Task 4.B - What number of packets are handled by TMM1? This task only needs an adjustment of the tmm number. I included it just for the purpose of being attentive to what's asked. When you're in a competition, sometimes you only get one attempt to answer, so make sure you don't fall into the trap of providing the information in the wrong format. Final answer: 148 packets. Task 5 - For a traffic flow to ip 10.0.4.20 on port 8081, what’s the request verb and the value of the X-Server-Disabled header in the response? This one I combine two filters, ip.addr and tcp.port 8081 to find the flow or flows for this address/port pair and then look at the TCP stream of the first flow and hope for the best. That selection reveals the text-based flow of HTTP messages in this TCP flow. Final answer: request verb is HEAD and the X-Server-Disabled header value is true. Task 6 - What’s the BIG-IP version and tcpdump command that was run to generate this packet capture This has an easy cheat in that you just need to look at the first packet in the capture, but the goal is to identify the filter f5fileinfo.cmdline. Final answer: BIG-IP version is 15.1.2.1 (build 0.0.10) and the tcpdump command was "-ni 0.0 -w /var/tmp/f5tcpdump1.pcap -s0". Note that even though I didn't specify even the low F5 details in this capture that a limited subset of that information is provided anyway, such as the BIG-IP system info shown here as well as the TMM core shown in tasks above. Task 7 - Limit the capture to only tcp ports 80, 443, 8080, 8081 OR tcp resets? This task is an easy grab from the same filter as in task 6, but I wanted to make mention of the difference of capture filters and display filters. Capture filters reduce the number of packets that a) the system has to log, reducing the impact to system performance during capture and b) the analyst has to comb through and process. These are both net positives with the assumption that you are not restricting the capture past the point where you lose the necessary data to properly capture the problem you're trying to find and solve. Display filters are only limiting what you are looking at after the capture is already taken. The data set itself is not changed. Final answer: The capture filter is ‘(tcp[13] & 4!=0) or (tcp port 80 or 443 or 8080 or 8081)’. Note that the TCP flags are in offset byte 13 in the TCP header, and the RST flag is in the 2**2 position (or 4) of the byte. Also note in that tcpdump command the --f5 n,ssl:v. More on that later. Task 8 - How many GET requests can you see against tcp port 443 This is another multi-filter combination, using http and tcp.port. Hmmm, that seems fishy..or does it? Would you expect to see HTTP traffic in cleartext to TCP port 443, which is normally SSL traffic and thus encrypted? Interesting. The final answer, for now, is 0. Task 9 - How do we decrypt the HTTPS traffic and once done, repeat task 8? In task 7 I noted the --f5 ssl flag on the tcpdump. When you enable the database key tcpdump.sslproviderand use that flag when taking a capture, the key material will be included in your capture (WARNING!! Do not share/store this file without understanding the repercussions!) so you can decrypt the traffic for analysis. On the Wireshark side since I did include this in this second capture, I use the f5ethtrailer.keylog filter to find all the keylog entries, which need to be copied out of the capture to a file and then referenced back in the Wireshark settings. I show one below, but note that all should be done to make the whole capture decrypted. This can be done auto-magically with tshark as shown at the bottom of this lab document on Clouddocs. I take that value and copy it into a file (and the other entries as well, but just showing this one for brevity). Then I open Wireshark's preferences and select protocols and then TLS and select that file. And now I'll repeat task 8. And BINGO! Final answer: 5 GET requests. Task 10 - What are the virtual server names for the destinations 10.0.3.50:80 and 10.0.3.50:443, respectively? For this final task in this CTF walkthrough, I'll need the f5ethtrailer.vip filter to narrow down the packets I need to reference, and then a combination as well of ip.dst and tcp.port filters. First, port 80. And secondly port 443. Final answer: /Common/testvip for port 80, /Common/nerdlife_ssl_vip for port 443. Conclusion And there we have it! A successful journey through a variety of tasks analyzing a couple BIG-IP packet captures. As I mentioned during the show, I had a teacher in a packet analysis 20 years ago who encouraged 15 minutes a day looking at captures to keep those skills sharp. I didn't, and he was right. Use it or lose, people!
