High CPU utilization (100%).
I observed high CPU utilization (100%) on F5 device, resource provision ASM nominal. I checked the client-side throughput and server-side throughput both are normal but found management interface throughput is very high and what i noticed this is happening in same time period for last 30 days. What could be the reason for this spike. Many thanks in advanced for your time and consideration.Incosistent forwarding of HTTP/2 connections with layered virtual
Hi, I'm using a layered virtual configuration: Tier1: Virtual applying SNI-Routing (only SSL persistence profile and LTM policy as described in https://www.devcentral.f5.com/kb/technicalarticles/sni-routing-with-big-ip/282018) Tier2: Virtual applies SSL termination and delivering the actual application, with the required profiles, iRules, .... If the required, an additional LTM policy is applied for URI-based routing and forwards to Tier3 VS. Tier3 (optional, if required): Virtual delivers specific applications, like microservices, usually no monolithical apps. This configuration is very robust and I'm working with it successfully since years. Important: The tier1 uses one single IP address and a single port. So all tier2 and tier3 virtuals MUST be externally available through the same IP address and port. Now I have to publish the first HTTP/2 applications over this concept and see strange behavior of the BIG-IP. User requests www.example.com. IP and port point to tier1 virtual. Tier1 LTM policy forwards the requests, based on the SNI, to tier2 virtuals "vs-int_www.example.com". Within www.example.com there are references to piwik.example.com, which is another tier2 virtual, behind my tier1 virtual. User requests piwik.example.com. IP and port point to tier1 virtual. Tier1 LTM policy forwards the requests to "vs-int_www.example.com" instead of "vs-int_piwik.example.com". Probably not based on SNI, but on the existing TCP connection. I'm afraid, that this bahvior is a result of HTTP/2, especially because of the persistent TCP connection. I assume that, because the connection ID (gathered from browser devtools) for requests to www.example.com and piwik.example.com is identical. From the perspective of the browser I wouldn't expect such a behavior, because the target hostname differs. I didn't configure HTTP/2 in full-proxy mode, as described in several articles. I've just enabled it on the client-side. I would be very happy for any input on that. Thanks in advance!
Rewrite http:// to https:// in response content
Problem this snippet solves: (Maybe I missed it, but) I didn't see a code share for using a STREAM profile to rewrite content from http to https. This share is just to make it easier to find a simple iRule to replace http:// links in page content to https://. It's taken directly from the STREAM::expression Wiki page. How to use this snippet: You'll need to assign a STREAM profile to you virtual server in order for this to work (just create an empty stream profile and assign it). Code : # Example which replaces http:// with https:// in response content # Prevents server compression in responses when HTTP_REQUEST { # Disable the stream filter for all requests STREAM::disable # LTM does not uncompress response content, so if the server has compression enabled # and it cannot be disabled on the server, we can prevent the server from # sending a compressed response by removing the compression offerings from the client HTTP::header remove "Accept-Encoding" } when HTTP_RESPONSE { # Check if response type is text if {[HTTP::header value Content-Type] contains "text"}{ # Replace http:// with https:// STREAM::expression {@http://@https://@} # Enable the stream filter for this response only STREAM::enable } } Tested this on version: 11.5
LineRate HTTP to HTTPS redirect
Here's a quick LineRate proxy code snippet to convert an HTTP request to a HTTPS request using the embedded Node.js engine. The relevant parts of the LineRate proxy config are below, as well. By modifying the redirect_domain variable, you can redirect HTTP to HTTPS as well as doing a non-www to a www redirect. For example, you can redirect a request for http://example.com to https://www.example.com . The original URI is simply appended to the redirected request, so a request for http://example.com/page1.html will be redirected to https://www.example.com/page1.html . This example uses the self-signed SSL certificate that is included in the LineRate distribution. This is fine for testing, but make sure to create a new SSL profile with your site certificate and key when going to production. As always, the scripting docs can be found here. redirect.js: Put this script in the default scripts directory - /home/linerate/data/scripting/proxy/ and update the redirect_domain and redirect_type variables for your environment. "use strict"; var vsm = require('lrs/virtualServerModule'); // domain name to which to redirect var redirect_domain = 'www.example.com'; // type of redirect. 301 = temporary, 302 = permanent var redirect_type = 302; vsm.on('exist', 'vs_example.com', function(vs) { console.log('Redirect script installed on Virtual Server: ' + vs.id); vs.on('request', function(servReq, servResp, cliReq) { servResp.writeHead(redirect_type, { 'Location': 'https://' + redirect_domain + servReq.url }); servResp.end(); }); }); LineRate config: real-server rs1 ip address 10.1.2.100 80 admin-status online ! virtual-ip vip_example.com ip address 192.0.2.1 80 admin-status online ! virtual-ip vip_example.com_https ip address 192.0.2.1 443 attach ssl profile self-signed admin-status online ! virtual-server vs_example.com attach virtual-ip vip_example.com default attach real-server rs1 ! virtual-server vs_example.com_https attach virtual-ip vip_example.com_https default attach real-server rs1 ! script redirect source file "proxy/redirect.js" admin-status online Example: user@m1:~/ > curl -L -k -D - http://example.com/test HTTP/1.1 302 Found Location: https://www.example.com/test Date: Wed, 03-Sep-2014 16:39:53 GMT Transfer-Encoding: chunked HTTP/1.1 200 OK Content-Type: text/plain Date: Wed, 03-Sep-2014 16:39:53 GMT Transfer-Encoding: chunked hello worldHTTP is fast, HTTPS really slow and causes massive FCS failure

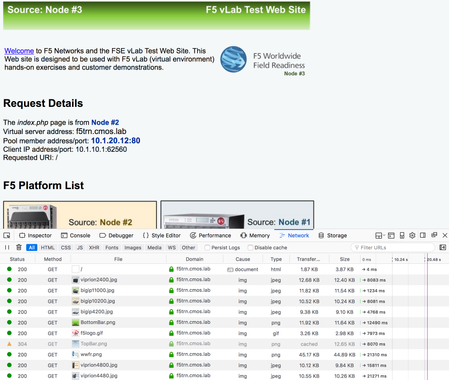

I have two BIGIP VE's on my laptop I use for lab and education. On both of them (not HA) HTTPS to a VS works, but is painfully slow. A simple web page with a few pictures in it takes 20-30 seconds to load. Unencrypted HTTP is lightning fast. Here is the VS config: ltm virtual /Common/f5trn.cmos.lab-p443-vs { destination /Common/10.1.10.20:443 ip-protocol tcp mask 255.255.255.255 pool /Common/f5trn.cmos.lab-pool profiles { /Common/f5trn.cmos.lab { context clientside } /Common/http { } /Common/http2 { } /Common/tcp { } } source 0.0.0.0/0 translate-address enabled translate-port enabled } ltm pool /Common/f5trn.cmos.lab-pool { members { /Common/10.1.20.11:80 { address 10.1.20.11 } /Common/10.1.20.12:80 { address 10.1.20.12 } /Common/10.1.20.13:80 { address 10.1.20.13 } } monitor /Common/http } A packet capture shows a MASSIVE FCS failure. Every single frame. Same on both sides of the BIGIP. Troubleshooting includes: Disabling SSL (removing clientSSL profile). Not slow. Disabling HTTP/2 profile, using HTTP/1.1 (with SSL) instead. Still slow. Using normal clientssl profile. Still slow. Trying another BIGIP VE on the same laptop (standalone). Still slow. Upgrading virtual hardware from v7 to v12. Still slow. Upgrading memory on BIGIP VE 6 > 8 GB RAM. Still slow. CPU load is around 9% Memory usage is >80% high according to the flash-based dashboard. 6 or 8 GB RAM makes no difference. However TMM uses 5.5% of 3.9 GB. The Configuration Utility uses HTTPS and is very responsive. Other info: LTM, APM and AVR are provisioned The FQDN is resolved via /etc/hosts file BIGIP version is 13.1 My laptop is a MacBook Pro with core i7 with 16GB RAM and not slow or heavily loaded with anything else. Any ideas to why SSL seems to cause this behaviour?
