F5 Container Ingress Services (CIS) deployment using Cilium CNI and static routes

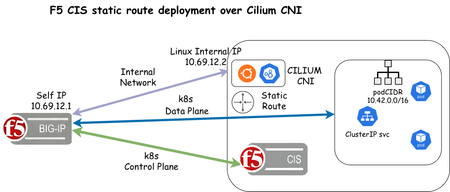

F5 Container Ingress Services (CIS) supports static route configuration to enable direct routing from F5 BIG-IP to Kubernetes/OpenShift Pods as an alternative to VXLAN tunnels. Static routes are enabled in the F5 CIS CLI/Helm yaml manifest using the argument --static-routing-mode=true. In this article, we will use Cilium as the Container Network Interface (CNI) and configure static routes for an NGINX deployment For initial configuration of the BIG-IP, including AS3 installation, please see https://clouddocs.f5.com/products/extensions/f5-appsvcs-extension/latest/userguide/installation.html and https://clouddocs.f5.com/containers/latest/userguide/kubernetes/#cis-installation The first step is to install Cilium CNI using the steps below on Linux host: CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt) CLI_ARCH=amd64 if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum} sha256sum --check cilium-linux-${CLI_ARCH}.tar.gz.sha256sum sudo tar xzvfC cilium-linux-${CLI_ARCH}.tar.gz /usr/local/bin rm cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum} cilium install --version 1.18.5 cilium status cilium status --wait root@ciliumk8s-ubuntu-server:~# cilium status --wait /¯¯\ /¯¯\__/¯¯\ Cilium: OK \__/¯¯\__/ Operator: OK /¯¯\__/¯¯\ Envoy DaemonSet: OK \__/¯¯\__/ Hubble Relay: disabled \__/ ClusterMesh: disabled DaemonSet cilium Desired: 1, Ready: 1/1, Available: 1/1 DaemonSet cilium-envoy Desired: 1, Ready: 1/1, Available: 1/1 Deployment cilium-operator Desired: 1, Ready: 1/1, Available: 1/1 Containers: cilium Running: 1 cilium-envoy Running: 1 cilium-operator Running: 1 clustermesh-apiserver hubble-relay Cluster Pods: 6/6 managed by Cilium Helm chart version: 1.18.3 Image versions cilium quay.io/cilium/cilium:v1.18.3@sha256:5649db451c88d928ea585514746d50d91e6210801b300c897283ea319d68de15: 1 cilium-envoy quay.io/cilium/cilium-envoy:v1.34.10-1761014632-c360e8557eb41011dfb5210f8fb53fed6c0b3222@sha256:ca76eb4e9812d114c7f43215a742c00b8bf41200992af0d21b5561d46156fd15: 1 cilium-operator quay.io/cilium/operator-generic:v1.18.3@sha256:b5a0138e1a38e4437c5215257ff4e35373619501f4877dbaf92c89ecfad81797: 1 cilium connectivity test root@ciliumk8s-ubuntu-server:~# cilium connectivity test ℹ️ Monitor aggregation detected, will skip some flow validation steps ✨ [default] Creating namespace cilium-test-1 for connectivity check... ✨ [default] Deploying echo-same-node service... ✨ [default] Deploying DNS test server configmap... ✨ [default] Deploying same-node deployment... ✨ [default] Deploying client deployment... ✨ [default] Deploying client2 deployment... ✨ [default] Deploying ccnp deployment... ⌛ [default] Waiting for deployment cilium-test-1/client to become ready... ⌛ [default] Waiting for deployment cilium-test-1/client2 to become ready... ⌛ [default] Waiting for deployment cilium-test-1/echo-same-node to become ready... ⌛ [default] Waiting for deployment cilium-test-ccnp1/client-ccnp to become ready... ⌛ [default] Waiting for deployment cilium-test-ccnp2/client-ccnp to become ready... ⌛ [default] Waiting for pod cilium-test-1/client-645b68dcf7-s5mdb to reach DNS server on cilium-test-1/echo-same-node-f5b8d454c-qkgq9 pod... ⌛ [default] Waiting for pod cilium-test-1/client2-66475877c6-cw7f5 to reach DNS server on cilium-test-1/echo-same-node-f5b8d454c-qkgq9 pod... ⌛ [default] Waiting for pod cilium-test-1/client-645b68dcf7-s5mdb to reach default/kubernetes service... ⌛ [default] Waiting for pod cilium-test-1/client2-66475877c6-cw7f5 to reach default/kubernetes service... ⌛ [default] Waiting for Service cilium-test-1/echo-same-node to become ready... ⌛ [default] Waiting for Service cilium-test-1/echo-same-node to be synchronized by Cilium pod kube-system/cilium-lxjxf ⌛ [default] Waiting for NodePort 10.69.12.2:32046 (cilium-test-1/echo-same-node) to become ready... 🔭 Enabling Hubble telescope... ⚠️ Unable to contact Hubble Relay, disabling Hubble telescope and flow validation: rpc error: code = Unavailable desc = connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:4245: connect: connection refused" ℹ️ Expose Relay locally with: cilium hubble enable cilium hubble port-forward& ℹ️ Cilium version: 1.18.3 🏃[cilium-test-1] Running 126 tests ... [=] [cilium-test-1] Test [no-policies] [1/126] .................... [=] [cilium-test-1] Skipping test [no-policies-from-outside] [2/126] (skipped by condition) [=] [cilium-test-1] Test [no-policies-extra] [3/126] <- snip -> For this article, we will install k3s with Cilium CNI root@ciliumk8s-ubuntu-server:~# curl -sfL https://get.k3s.io | sh -s - --flannel-backend=none --disable-kube-proxy --disable servicelb --disable-network-policy --disable traefik --cluster-init --node-ip=10.69.12.2 --cluster-cidr=10.42.0.0/16 root@ciliumk8s-ubuntu-server:~# mkdir -p $HOME/.kube root@ciliumk8s-ubuntu-server:~# sudo cp -i /etc/rancher/k3s/k3s.yaml $HOME/.kube/config root@ciliumk8s-ubuntu-server:~# sudo chown $(id -u):$(id -g) $HOME/.kube/config root@ciliumk8s-ubuntu-server:~# echo "export KUBECONFIG=$HOME/.kube/config" >> $HOME/.bashrc root@ciliumk8s-ubuntu-server:~# source $HOME/.bashrc API_SERVER_IP=10.69.12.2 API_SERVER_PORT=6443 CLUSTER_ID=1 CLUSTER_NAME=`hostname` POD_CIDR="10.42.0.0/16" root@ciliumk8s-ubuntu-server:~# cilium install --set cluster.id=${CLUSTER_ID} --set cluster.name=${CLUSTER_NAME} --set k8sServiceHost=${API_SERVER_IP} --set k8sServicePort=${API_SERVER_PORT} --set ipam.operator.clusterPoolIPv4PodCIDRList=$POD_CIDR --set kubeProxyReplacement=true --helm-set=operator.replicas=1 root@ciliumk8s-ubuntu-server:~# cilium config view | grep cluster bpf-lb-external-clusterip false cluster-id 1 cluster-name ciliumk8s-ubuntu-server cluster-pool-ipv4-cidr 10.42.0.0/16 cluster-pool-ipv4-mask-size 24 clustermesh-enable-endpoint-sync false clustermesh-enable-mcs-api false ipam cluster-pool max-connected-clusters 255 policy-default-local-cluster false root@ciliumk8s-ubuntu-server:~# cilium status --wait The F5 CIS yaml manifest for deployment using Helm Note that these arguments are required for CIS to leverage static routes static-routing-mode: true orchestration-cni: cilium-k8s We will also be installing custom resources, so this argument is also required 3. custom-resource-mode: true Values yaml manifest for Helm deployment bigip_login_secret: f5-bigip-ctlr-login bigip_secret: create: false username: password: rbac: create: true serviceAccount: # Specifies whether a service account should be created create: true # The name of the service account to use. # If not set and create is true, a name is generated using the fullname template name: k8s-bigip-ctlr # This namespace is where the Controller lives; namespace: kube-system ingressClass: create: true ingressClassName: f5 isDefaultIngressController: true args: # See https://clouddocs.f5.com/containers/latest/userguide/config-parameters.html # NOTE: helm has difficulty with values using `-`; `_` are used for naming # and are replaced with `-` during rendering. # REQUIRED Params bigip_url: X.X.X.S bigip_partition: <BIG-IP_PARTITION> # OPTIONAL PARAMS -- uncomment and provide values for those you wish to use. static-routing-mode: true orchestration-cni: cilium-k8s # verify_interval: # node-poll_interval: # log_level: DEBUG # python_basedir: ~ # VXLAN # openshift_sdn_name: # flannel_name: cilium-vxlan # KUBERNETES # default_ingress_ip: # kubeconfig: # namespaces: ["foo", "bar"] # namespace_label: # node_label_selector: pool_member_type: cluster # resolve_ingress_names: # running_in_cluster: # use_node_internal: # use_secrets: insecure: true custom-resource-mode: true log-as3-response: true as3-validation: true # gtm-bigip-password # gtm-bigip-url # gtm-bigip-username # ipam : true image: # Use the tag to target a specific version of the Controller user: f5networks repo: k8s-bigip-ctlr pullPolicy: Always version: latest # affinity: # nodeAffinity: # requiredDuringSchedulingIgnoredDuringExecution: # nodeSelectorTerms: # - matchExpressions: # - key: kubernetes.io/arch # operator: Exists # securityContext: # runAsUser: 1000 # runAsGroup: 3000 # fsGroup: 2000 # If you want to specify resources, uncomment the following # limits_cpu: 100m # limits_memory: 512Mi # requests_cpu: 100m # requests_memory: 512Mi # Set podSecurityContext for Pod Security Admission and Pod Security Standards # podSecurityContext: # runAsUser: 1000 # runAsGroup: 1000 # privileged: true Installation steps for deploying F5 CIS using helm can be found in this link https://clouddocs.f5.com/containers/latest/userguide/kubernetes/ Once F5 CIS is validated to be up and running, we can now deploy the following application example root@ciliumk8s-ubuntu-server:~# cat application.yaml apiVersion: cis.f5.com/v1 kind: VirtualServer metadata: labels: f5cr: "true" name: goblin-virtual-server namespace: nsgoblin spec: host: goblin.com pools: - path: /green service: svc-nodeport servicePort: 80 - path: /harry service: svc-nodeport servicePort: 80 virtualServerAddress: X.X.X.X --- apiVersion: apps/v1 kind: Deployment metadata: name: goblin-backend namespace: nsgoblin spec: replicas: 2 selector: matchLabels: app: goblin-backend template: metadata: labels: app: goblin-backend spec: containers: - name: goblin-backend image: nginx:latest ports: - containerPort: 80 --- apiVersion: v1 kind: Service metadata: name: svc-nodeport namespace: nsgoblin spec: selector: app: goblin-backend ports: - port: 80 targetPort: 80 type: ClusterIP k apply -f application.yaml We can now verify the k8s pods are created. Then we will create a sample html page to test access to the backend NGINX pod root@ciliumk8s-ubuntu-server:~# k -n nsgoblin get po -owide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES goblin-backend-7485b6dcdf-d5t48 1/1 Running 0 6d2h 10.42.0.70 ciliumk8s-ubuntu-server <none> <none> goblin-backend-7485b6dcdf-pt7hx 1/1 Running 0 6d2h 10.42.0.97 ciliumk8s-ubuntu-server <none> <none> root@ciliumk8s-ubuntu-server:~# k -n nsgoblin exec -it po/goblin-backend-7485b6dcdf-pt7hx -- /bin/sh # cat > green <<'EOF' <!DOCTYPE html> > > <html> > <head> <title>Green Goblin</title> <style> body { background-color: #4CAF50; color: white; text-align: center; padding: 50px; } h1 { font-size: 3em; } > > > > > </style> </head> <body> <h1>I am the green goblin!</h1> <p>Access me at /green</p> </body> </html> > > > > > > > EOF root@ciliumk8s-ubuntu-server:~# k -n nsgoblin exec -it goblin-backend-7485b6dcdf-d5t48 -- /bin/sh # cat > green <<'EOF' > <!DOCTYPE html> <html> <head> <title>Green Goblin</title> <style> body { background-color: #4CAF50; color: white; text-align: center; padding: 50px; } h1 { font-size: 3em; } </style> > </head> <body> <h1>I am the green goblin!</h1> <p>Access me at /green</p> </body> </html> EOF> > > > > > > > > > > > > We can now validate the pools are created on the F5 BIG-IP root@(ciliumk8s-bigip)(cfg-sync Standalone)(Active)(/kubernetes/Shared)(tmos)# list ltm pool all ltm pool svc_nodeport_80_nsgoblin_goblin_com_green { description "crd_10_69_12_40_80 loadbalances this pool" members { /kubernetes/10.42.0.70:http { address 10.42.0.70 } /kubernetes/10.42.0.97:http { address 10.42.0.97 } } min-active-members 1 partition kubernetes } ltm pool svc_nodeport_80_nsgoblin_goblin_com_harry { description "crd_10_69_12_40_80 loadbalances this pool" members { /kubernetes/10.42.0.70:http { address 10.42.0.70 } /kubernetes/10.42.0.97:http { address 10.42.0.97 } } min-active-members 1 partition kubernetes } root@(ciliumk8s-bigip)(cfg-sync Standalone)(Active)(/kubernetes/Shared)(tmos)# list ltm virtual crd_10_69_12_40_80 ltm virtual crd_10_69_12_40_80 { creation-time 2025-12-22:10:10:37 description Shared destination /kubernetes/10.69.12.40:http ip-protocol tcp last-modified-time 2025-12-22:10:10:37 mask 255.255.255.255 partition kubernetes persist { /Common/cookie { default yes } } policies { crd_10_69_12_40_80_goblin_com_policy { } } profiles { /Common/f5-tcp-progressive { } /Common/http { } } serverssl-use-sni disabled source 0.0.0.0/0 source-address-translation { type automap } translate-address enabled translate-port enabled vs-index 2 } CIS log output 2025/12/22 18:10:25 [INFO] [Request: 1] cluster local requested CREATE in VIRTUALSERVER nsgoblin/goblin-virtual-server 2025/12/22 18:10:25 [INFO] [Request: 1][AS3] creating a new AS3 manifest 2025/12/22 18:10:25 [INFO] [Request: 1][AS3][BigIP] posting request to https://10.69.12.1 for tenants 2025/12/22 18:10:26 [INFO] [Request: 2] cluster local requested UPDATE in ENDPOINTS nsgoblin/svc-nodeport 2025/12/22 18:10:26 [INFO] [Request: 3] cluster local requested UPDATE in ENDPOINTS nsgoblin/svc-nodeport 2025/12/22 18:10:43 [INFO] [Request: 1][AS3][BigIP] post resulted in SUCCESS 2025/12/22 18:10:43 [INFO] [AS3][POST] SUCCESS: code: 200 --- tenant:kubernetes --- message: success 2025/12/22 18:10:43 [INFO] [Request: 3][AS3] Processing request 2025/12/22 18:10:43 [INFO] [Request: 3][AS3] creating a new AS3 manifest 2025/12/22 18:10:43 [INFO] [Request: 3][AS3][BigIP] posting request to https://10.69.12.1 for tenants 2025/12/22 18:10:43 [INFO] Successfully updated status of VirtualServer:nsgoblin/goblin-virtual-server in Cluster W1222 18:10:49.238444 1 warnings.go:70] v1 Endpoints is deprecated in v1.33+; use discovery.k8s.io/v1 EndpointSlice 2025/12/22 18:10:52 [INFO] [Request: 3][AS3][BigIP] post resulted in SUCCESS 2025/12/22 18:10:52 [INFO] [AS3][POST] SUCCESS: code: 200 --- tenant:kubernetes --- message: success 2025/12/22 18:10:52 [INFO] Successfully updated status of VirtualServer:nsgoblin/goblin-virtual-server in Cluster Troubleshooting: 1. If static routes are not added, the first step is to inspect CIS logs for entries similar to these: Cilium annotation warning logs 2025/12/22 17:44:45 [WARNING] Cilium node podCIDR annotation not found on node ciliumk8s-ubuntu-server, node has spec.podCIDR ? 2025/12/22 17:46:41 [WARNING] Cilium node podCIDR annotation not found on node ciliumk8s-ubuntu-server, node has spec.podCIDR ? 2025/12/22 17:46:42 [WARNING] Cilium node podCIDR annotation not found on node ciliumk8s-ubuntu-server, node has spec.podCIDR ? 2025/12/22 17:46:43 [WARNING] Cilium node podCIDR annotation not found on node ciliumk8s-ubuntu-server, node has spec.podCIDR ? 2. These are resolved by adding annotations to the node using the reference: https://clouddocs.f5.com/containers/latest/userguide/static-route-support.html Cilium annotation for node root@ciliumk8s-ubuntu-server:~# k annotate node ciliumk8s-ubuntu-server io.cilium.network.ipv4-pod-cidr=10.42.0.0/16 root@ciliumk8s-ubuntu-server:~# k describe node | grep -E "Annotations:|PodCIDR:|^\s+.*pod-cidr" Annotations: alpha.kubernetes.io/provided-node-ip: 10.69.12.2 io.cilium.network.ipv4-pod-cidr: 10.42.0.0/16 PodCIDR: 10.42.0.0/24 3. Verify a static route has been created and test connectivity to k8s pods root@(ciliumk8s-bigip)(cfg-sync Standalone)(Active)(/kubernetes)(tmos)# list net route net route k8s-ciliumk8s-ubuntu-server-10.69.12.2 { description 10.69.12.1 gw 10.69.12.2 network 10.42.0.0/16 partition kubernetes } Using pup (command line HTML parser) -> https://commandmasters.com/commands/pup-common/ root@ciliumk8s-ubuntu-server:~# curl -s http://goblin.com/green | pup 'body text{}' I am the green goblin! Access me at /green 1 0.000000 10.69.12.34 ? 10.69.12.40 TCP 78 34294 ? 80 [SYN] Seq=0 Win=64240 Len=0 MSS=1460 SACK_PERM TSval=2984295232 TSecr=0 WS=128 2 0.000045 10.69.12.40 ? 10.69.12.34 TCP 78 80 ? 34294 [SYN, ACK] Seq=0 Ack=1 Win=23360 Len=0 MSS=1460 WS=512 SACK_PERM TSval=1809316303 TSecr=2984295232 3 0.001134 10.69.12.34 ? 10.69.12.40 TCP 70 34294 ? 80 [ACK] Seq=1 Ack=1 Win=64256 Len=0 TSval=2984295234 TSecr=1809316303 4 0.001151 10.69.12.34 ? 10.69.12.40 HTTP 149 GET /green HTTP/1.1 5 0.001343 10.69.12.40 ? 10.69.12.34 TCP 70 80 ? 34294 [ACK] Seq=1 Ack=80 Win=23040 Len=0 TSval=1809316304 TSecr=2984295234 6 0.002497 10.69.12.1 ? 10.42.0.97 TCP 78 33707 ? 80 [SYN] Seq=0 Win=23360 Len=0 MSS=1460 WS=512 SACK_PERM TSval=1809316304 TSecr=0 7 0.003614 10.42.0.97 ? 10.69.12.1 TCP 78 80 ? 33707 [SYN, ACK] Seq=0 Ack=1 Win=64308 Len=0 MSS=1410 SACK_PERM TSval=1012609408 TSecr=1809316304 WS=128 8 0.003636 10.69.12.1 ? 10.42.0.97 TCP 70 33707 ? 80 [ACK] Seq=1 Ack=1 Win=23040 Len=0 TSval=1809316307 TSecr=1012609408 9 0.003680 10.69.12.1 ? 10.42.0.97 HTTP 149 GET /green HTTP/1.1 10 0.004774 10.42.0.97 ? 10.69.12.1 TCP 70 80 ? 33707 [ACK] Seq=1 Ack=80 Win=64256 Len=0 TSval=1012609409 TSecr=1809316307 11 0.004790 10.42.0.97 ? 10.69.12.1 TCP 323 HTTP/1.1 200 OK [TCP segment of a reassembled PDU] 12 0.004796 10.42.0.97 ? 10.69.12.1 HTTP 384 HTTP/1.1 200 OK 13 0.004820 10.69.12.40 ? 10.69.12.34 TCP 448 HTTP/1.1 200 OK [TCP segment of a reassembled PDU] 14 0.004838 10.69.12.1 ? 10.42.0.97 TCP 70 33707 ? 80 [ACK] Seq=80 Ack=254 Win=23552 Len=0 TSval=1809316308 TSecr=1012609410 15 0.004854 10.69.12.40 ? 10.69.12.34 HTTP 384 HTTP/1.1 200 OK Summary: There we have it, we have successfully deployed an NGINX application on a Kubernetes cluster managed by F5 CIS using static routes to forward traffic to the kubernetes pods
