Scality RING and F5 BIG-IP: High-Performance S3 Object Storage

The load balancing of F5 BIG-IP, both locally within a site as well as for global traffic steering to an optimal site around large geographies, works effectively with Scality RING, a modern and massively scalable object storage solution. The RING architecture takes an innovative “bring-your-own Linux” approach to turning highly performant servers, equipped with ample disks, into a resilient, durable storage solution. The BIG-IP can scale in lock step with offered S3 access loads, for use cases like AI data delivery for model training as an example, avoiding any single RING node from being a hot spot, with pioneering load balancing algorithms like “Least Connections” or “Fastest”, to name just a couple. From a global server load balancing perspective, BIG-IP DNS can apply similar advanced logic, for instance, steering S3 traffic to the optimal RING site, taking into consideration the geographic locale of the traffic source or leveraging on-going latency measurements from these traffic source sites.



Scality RING – High Capacity and Durability for Today’s Object Storage



The Scality solution is well known for the ability to grow the capacity of an enterprise’s storage needs with agility; simply license the usable storage needed today and upgrade on an as-needed basis as business warrants. RING supports both object and file storage; however, the focus of this investigation is object. Industry drivers of object storage growth include its prevalence in AI model training, specifically for content accrual, which will in-turn feed GPUs, as well as data lakehouse implementations. There is an extremely long-tailed distribution of other use cases, such as video clip retention in the media and entertainment industry, medical imaging repositories, updates to traditional uses like NAS offload to S3 and the evolution of enterprise storage backups.

At the very minimum, a 3-node site, with 200 TB of storage, serves as a starting point for a RING implementation. The underlying servers typically run RHEL 9 or Rocky Linux, running upon x86 or AMD architectures, and a representative server would offer disk bays, front or back, with loaded disks totally anywhere from 10 to dozens of disk units. Generally, S3 objects are stored upon spinning hard disk drives (HDD) while the corresponding metadata warrants inclusion of a subset of flash drives in a typical Scality deployment.

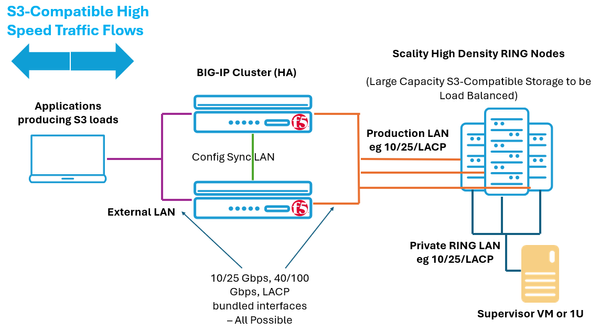

A representative diagram of BIG-IP in support of a single RING site would be as follows.

One of the known attributes of a well-engineered RING solution is 100 percent data availability. In industry terms, this is an RPO (recovery point objective) of zero, meaning that no data is lost between the moment a failure occurs and the moment the system is restored to its last known good state. This is achieved through means like multiple nodes, multiple disks, and often multiple sites. Included is the combination of replication for small objects, such as retaining 2 or 3 copies of objects smaller than 60 kilobytes and erasure coding (EC) for larger objects. Erasure coding is a nuanced topic within the storage industry. Scality uses a sophisticated take on Erasure coding known as ARC (Advanced Resiliency Coding).

In alignment with availability, is the durability of data that can be achieved through RING. This is to say, how “intact” can I believe my data at rest is? The Scality solution is a fourteen 9’s solution, exceeding most other advertised values, including that of AWS. What 9’s correspond to in terms of downtime in a single year can be found here, although it is telling that Wikipedia, as of early 2026, does not even provide calculations beyond twelve 9’s.

Finally, in keeping with sound information lifecycle management (ILM), the Scality site may offer an additional server running XDM (eXtended Data Management) to act as a bridge between on-premises RING and public clouds such as AWS and Azure. This allows a tiering approach, where older, “cold” data is moved off-site. Archiving to-tape solutions are also available options.



Scality – Quick Overview of Data at Rest Protection



The two principal approaches to protecting data in large single or multi-site RING deployments is to combine replication and erasure coding.

Replication is simple to understand, for smaller objects an operator simply chooses the number of replicas desired. If two replicas are chosen, indicated by class of service (COS) 2, two copies are spread across nodes. For COS 3, three copies are spread across nodes. A frequent rule of thumb is a three percent rule, this being the fraction of files frequently being 60 kilobytes or less across a full object storage environment, meaning they are to be replicated; replicas are available in cases of hardware disruptions with a given node.

Erasure coding is an adjustable technique where larger objects are divided into data chunks, sometimes called data shards or data blocks, and spread (or “striped”) across many nodes. To add resilience, in the case of one or even more hardware issues with nodes or disks within nodes, additional parity chunks are mathematically derived. This way, cleverly and by design, only a subset of the data chunks and parity chunks are required in a solution under duress, and the original object is still easily provided upon an S3 request.

In smaller node deployments, it is possible to consider a single RING server as two entities, but dividing storage into two “disk groups.” However, for an ideal, larger RING site, the approach depicted is preferred. The erasure coding depicted, normally referred to with the nomenclature EC(9,3), leads into a deeper design consideration where storage overhead is traded off against data resiliency.

In the diagram, as many as 3 nodes holding portions of the data could become unreachable and still the erasure-coded object would be available. The overhead can be considered 33 percent as 3 additional parity chunks were created, beyond the 9 data chunks, and stored. For more risk-adverse operators, an EC of, say, EC(8,4) would allow even more, four points of failure. The trade off would be, in this case, a 50 percent overhead to achieve that increased resiliency. The overhead is still much less than replication, which can see hundreds of percent in overhead, thus the logical choice to use that for only small objects.

Together, replication and EC lead to an overall storage efficiency number. Considering a 3 percent small objects environment, an EC(9,3) and COS3 for replication might tactically lead to a long-term palatable data protection posture, all for only a total cost of 41 percent additional storage overhead.

The ability to scale out and protect the S3 data in flight is the domain of BIG-IP and what we will review next.



BIG-IP – Bring Scale and Traffic Control to Scality RING

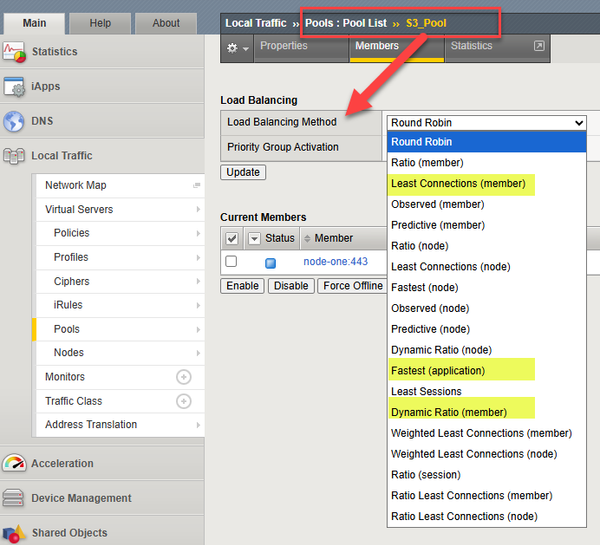

A starting point for any discussion around BIG-IP are the rich load balancing algorithms and the ability to drop unhealthy nodes from an origin pool, transparent to users who only interact with the configured virtual server. Load balancing for S3 involves avoiding “hot spots”, where a single RING node might otherwise by overly tasked by users directly communicating to it, all while other nodes remain vastly underutilized. By steering DNS resolution of S3 services to BIG-IP, and configured virtual servers, traffic can be spread across all healthy nodes and spread in accordance with interesting algorithms. Popular ones for S3 include:

• Least Connections – RING nodes with fewer established TCP connections will receive proportionally more of the new S3 transactions, towards a goal of balanced load in the server cluster.

• Ratio (member) – Although sound practice would be all RING members having similar compute and storage makeup, in some cases, perhaps two vintages of server exist. Ratio will allow proportionally more traffic to target newer, more performant classes of Scality nodes.

• Fastest (Application) – The number of “in progress” transactions any one server in a pool is handling is considered. If traffic steered to all members is generally similar over time, a member with the least number of transactions actively in progress will be considered a faster member in the pool, and new transactions can favor such low latency servers.

The RING nodes are contacted through Scality "S3 Connectors", in an all object deployment the connector resides on the storage node itself.  For some configurations, perhaps one with file-based protocols like NFS concurrently running, the S3 Connectors can also be installed on VM or 1U appliances too.

Of course, an unhealthy node should be precluded from an origin pool and the ability to do low-impact HTTP-based health monitors, like the HTTP HEAD method to see if an endpoint is responsive are frequently used. With BIG-IP Extended Application Validation (EAV) one can move towards even more sophisticated health checks. An S3 access and secret token pair installed on BIG-IP can be harnessed to perpetually upload and download small objects to each pool member, assuring the BIG-IP administrator that S3 is unequivocally healthy with each pool member.



BIG-IP – Control-Plane and Data-Plane Safeguards



A popular topic in a Scality software-defined distributed storage solution is that of a noisy neighbor when multiple tenants are considered. Perhaps one tenant has an S3 application which consumes disproportionate amounts of shared resources (CPU, network, or disk I/O), degrading performance for other tenants; controls are needed to counter this.

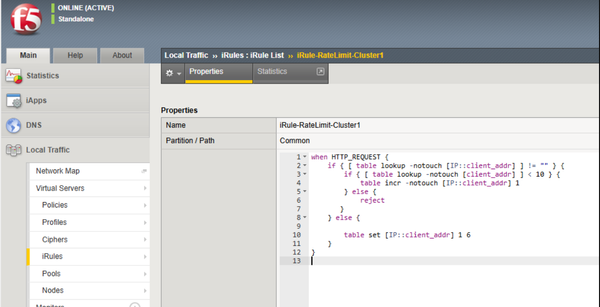

With BIG-IP, a simple control plane threshold can be invoked with a straight-forward iRule, a programmatic rule which can limit the source from producing more than, say, 25 S3 requests over 10 seconds. An iRule is a powerful but normally short, event-driven script. A sample is provided below.

Most modern generative AI solutions are well-versed in F5 iRules and can summarize even the most advanced scripts into digestible terms.   This iRule examines an application (“client_addr”) that connects to a BIG-IP virtual server and starts a counter, after 10 transactions within 6 seconds the S3 commands will be rejected.   The approach is that of a leaky bucket, and the application will be replenished with credits for future transactions over time.

Whereas iRules frequently target layer 7, HTTP-layer activity, a wealth of layer 3 and layer 4 controls to limit data plane excessive consumption exist.   Take for example the static bandwidth controller concept. Simply create a profile such as the following 10 Mbps example.

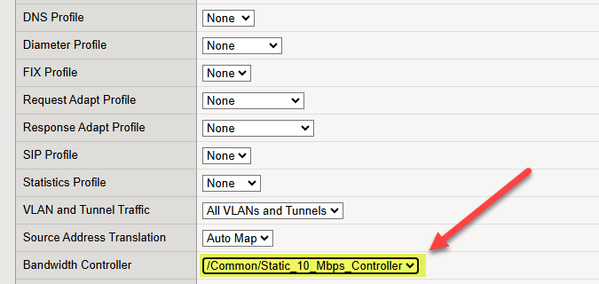

This bandwidth controller can then be applied against a virtual server, including a virtual server supporting, say, lower-priority S3 application traffic.

Focusing on layer-4, the TCP layer, a number of BIG-IP safeguards exist, amongst which are those that can defend against orphaned S3 connections, including those intentionally set up and left open by a bad actor to try to deplete RING resources.

Another safeguard, the ability to re-map DiffServ code points or Type of Service (TOS) precedence bits exists. In this manner, a source that exceeds ideal traffic rates can be passed without intervention; however, by remapping heavy upstream traffic, BIG-IP enables network infrastructure adjacent to Scality RING nodes to police or discard such traffic if required.



Evolving Modern S3 Traffic with Fresh Takes on TLS



TLS underwent a major improvement with the first release of TLS 1.3 in 2018. It removed a number of antiquated security components from official support, things like RSA-style key agreements, SHA-1 hashes, and DES encryption. However, from a performance point of view, the upgrade to TLS 1.3 is equally significant. When establishing a TLS 1.2 session, perhaps towards the goal of an S3 transaction with RING, with a TCP connection established, an application can expect 2 round-trip times to successfully pass the TLS negotiation phase and move forward with encrypted communications.

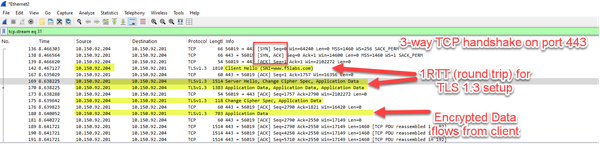

TLS1.3 cuts round trips in half; a new TLS 1.3 session can proceed to encrypted data exchange with a single round-trip time. In fact, when resuming a previously established TLS 1.3 session, 0RTT is possible, meaning the first resumption from the client can itself carry encrypted data. The following packet trace demonstrates 1RTT TLS1.3 establishment (double-click to enlarge image).

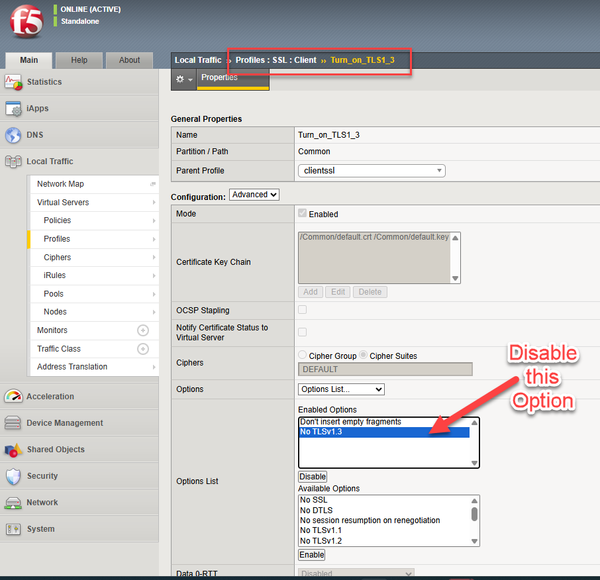

To turn on this feature, simply use a client-facing TLS profile on BIG-IP and remove the “No TLS1.3” option.

Another advancement in TLS, which must have TLS 1.3 enabled to start with, is quantum computing resistance to shared key agreement algorithms in TLS. This is a foundational building block of Post Quantum Computing (PCQ) cryptography, and the most well-known of these techniques is NIST FIPS-203 ML-KEM. The concern with not supporting PCQ today is that traffic in flight, which may be surreptitiously siphoned off and stored long term, will be readable in the future with quantum computers, perhaps as early as 2030.

This risk stems from thought leadership like Shor’s algorithm, which indicates public key (asymmetric) cryptography, foundational to shared key establishment between parties in TLS, is at risk. The concern is that due to large-scale, fault-tolerant quantum computers potentially cracking elliptic curve cryptography (ECC) and Diffie-Helman (DH) algorithms.

This risk, the so-called Harvest Now, Decrypt Later threat, means sensitive data like tax records, medical information and anything with longer term retention value requires protections today. It cannot be put off safely; action needs to be taken now. FIPS-203 ML-KEM suggests a hybrid approach to shared key derivation, after which TLS parties today can safely continue to use symmetric encryption algorithms like AES, which are thought to be far less susceptible to quantum attacks.

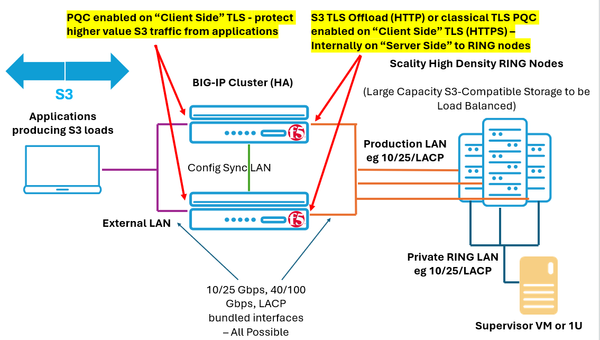

Updating our initial one-site topology, we can consider the following improvements.

A key understanding is that a hybrid key agreement scheme is used in FIPS -203. Essentially, a parallel set of crypto operations using traditional key agreements like X25519 ECDH key exchange protocol is performed simultaneously to the new MLKEM768 quantum resistant key encapsulation approach. The net result is a significant amount of crypto is carried out, with two sets of calculations, and the final combining of outcomes to come to an agreed upon shared key.

The conclusion is this load is likely best suited for only a subset of S3 flows, those with objects housing PII of high long-term potential value. A method to achieve this balance, the trade off between security and performance, is to use multiple BIG-IP virtual servers: a regular set of S3 endpoints with classical TLS support, and higher-security S3 endpoints for selective use. The latter would support the PQC provisions of modern TLS.

A full article on configuring BIG-IP for PQC, including a video demonstration of the click-through to add support to a virtual server, can be found here.



Multi-site Global Server Load Balancing with BIG-IP and Scality RING

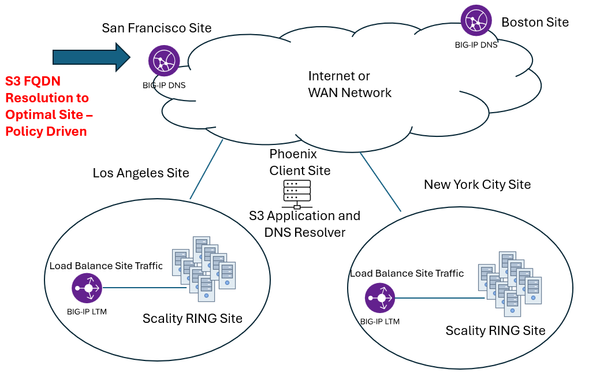

An illustrative diagram showing two RING sites, asynchronously connected and offering S3 ingestion and object retrieval is shown below. Note that the BIG-IP DNS, although frequently deployed independently from BIG-IP LTM appliances, can operate on the same, existing LTM appliances as well.

In this example, an S3 application physically situated in Phoenix, Arizona, in the American southwest, will use its configured local DNS resolver (frequently shorted to LDNS) to resolve S3 targets to IP addresses. Think, finance.s3.acme.com or humanresources.s3.acme.com. In F5 terms, these example domain names are referred to as “Wide IPs”.

An organization such as the fictious acme.com will delegate the relevant sub-domains to F5 DNS, such as s3.acme.com in our example, meaning the F5 appliances in San Francisco and Boston hold the DNS nameservice (NS) resource records for the S3 domain in question, and can answer the client’s DNS resolver authoritatively.

The DNS A queries required by the S3 application will land on either BIG-IP DNS platform, San Francisco or Boston. The pair serve for redundancy purposes, and both can provide an enterprise-controlled answer. In other words, should the S3 application target be resolved in Los Angeles or New York City?

The F5 solution allows for a multitude of considerations when providing the answer to the above question.

Interesting options and their impact on our topology diagram:

• Global Availability – A common disaster recovery approach. The BIG-IP DNS appliance distributes DNS name resolution requests to the first available virtual server in a pool list the administrator configures. BIG-IP DNS starts at the top of the list of virtual servers and sends requests to the first available virtual server in the list. Only when the virtual server becomes unavailable does BIG-IP DNS send requests to the next virtual server in the list. If we want S3 generally to travel to Los Angeles, and only utilize New York when application availability problems arise, this would be a good approach.

• Ratio – In a case where we would like a, say, 80/20 split between S3 traffic landing in Los Angeles versus New York, this would be a sound method. Perhaps market reasons make the cost of ingesting traffic in New York more expensive.

• Round Robin – the logical choice where we would like to see both data centers receive, generally, over time, the same amount of S3 transactions.

• Topology - BIG-IP DNS distributes DNS name resolution requests using proximity-based load balancing. BIG-IP DNS determines the proximity of the resource by comparing location information derived from the DNS message to the topology records in a topology statement. A great choice if data centers are of similar capacity and S3 transactions are best serviced by the closest physical data center. Note, the source IP address of the application’s DNS resolver is analyzed; if a centralized DNS service is used, perhaps it is not in Phoenix at all. There are techniques like EDNS0 to try to place the actual locality of the application.

• Round Trip Time – An advanced algorithm that is dynamic, not static. BIG-IP DNS distributes DNS name resolution requests to the virtual server with the fastest measured round-trip time between that data center and a client’s LDNS. This is achieved by having sites send low-impact probes, from “prober pools”, to each application’s DNS resolver over time. Therefore, for new DNS resolution requests, the BIG-IP DNS can tap into real-world latency knowledge to direct S3 traffic to the site, which is demonstrably known to offer the lowest latency. This again works best when the application and DNS resolver are in the same location.

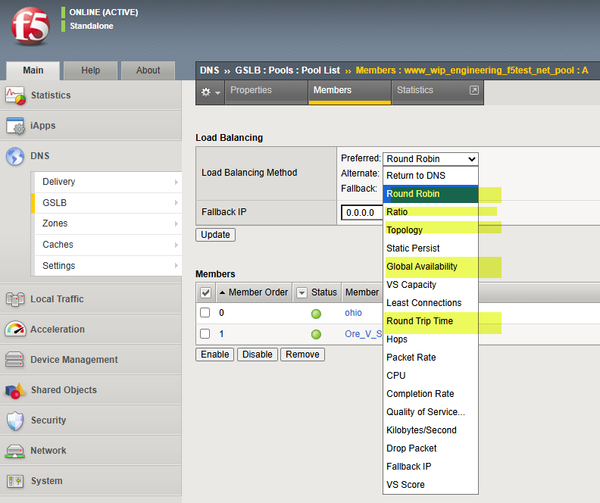

The BIG-IP DNS, when selecting between virtual servers, such as in Los Angeles and New York City in our simple example, can have a primary algorithm, a secondary algorithm and a fall-back, hard-coded IP. For instance, consider the first two algorithms are, in order, dynamic approaches, such as prober pools measuring round-trip time and, as a second approach, the measurement of active hop counts between sites and application LDNS. Should both methods fail to provide results, an IP address of last resort, perhaps in our case, Los Angeles, will be provided through the configured fall-back IP.

Key takeaway: what is being provided by F5 and Scality is “intelligent” DNS, traffic is directed to the sites not based upon basic network reachability to Los Angeles or New York. In reality, the solution looks behind the local load balancing tier and is aware of the health of each Scality RING member. Thus, traffic is steered in accordance to back-end application health monitoring, something a regular DNS solution would not offer.



Multi-site Solutions for Global Deployments and Geo-Awareness

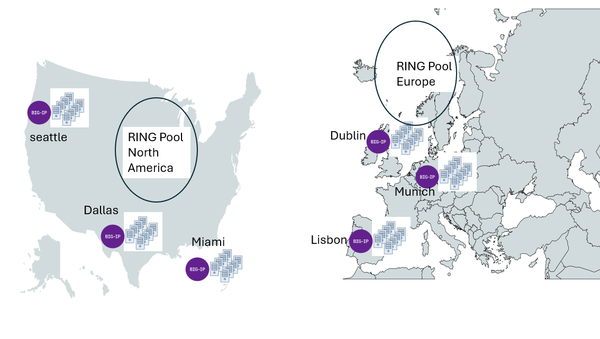

One potentially interesting use case for F5 BIG-IP DNS and Scality RING sites would be to tier all data centers into pools, based upon wider geographies. Consider a use case such as the following, with Scality RING sites spread across both North America and Europe.

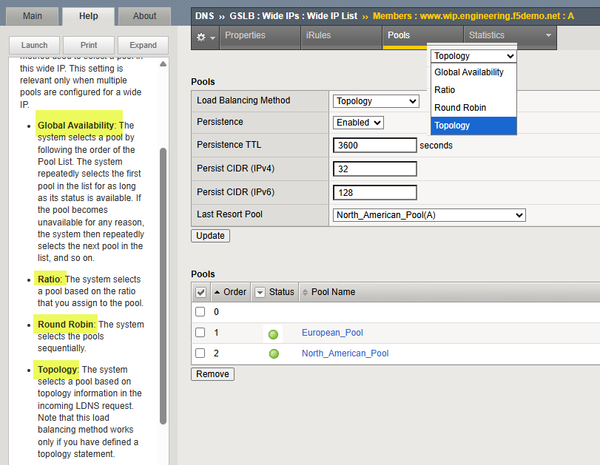

The BIG-IP DNS solution can handle this higher layer of abstraction, the first layer involves choosing between a pool of sites, before delving down one more layer into the pool of virtual servers spread across the sites within the optimal region. Policy is driving the response to a DNS query for S3 services all the way through these two layers.

To explore all load balancing methods is an interesting exercise but beyond the scope of this article. The manual here drills into the possible options. To direct traffic at the country or even continent level, one can follow the “Topology” algorithm for first selecting the correct site pool. Persistence can be enabled, allowing future requests from the same LDNS resolver to follow prior outcomes.

First, it is good practice to ensure the geo-IP database of BIG-IP is up to date. A brief video here steps a user through the update.

The next thing to create is regions. In this diagram the user has created an “Americas” and “Europe” region. In fact, in this particular setup, the Europe region is seen to match all traffic with DNS queries originating outside of North and South American, per the list of member continents.

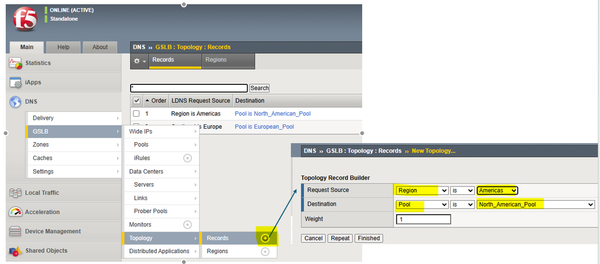

With regions defined, now the one creates simple topology records to control DNS responses for S3 services based upon the source IP of DNS queries on behalf of S3 applications.

The net result is a worldwide set of controls with regard to which Scality site S3 transactions will land upon. The decision based upon enterprise objectives can fully consider geographies like continents or individual countries. In our example, once a source region has been decided upon for an inbound DNS request, any of the previous algorithms can kick in. This would include options like global availability for DR within the selected regions, or perhaps measured latency to steer traffic to the most performant site in the region.



Summary



Scality RING is a software-defined object and file solution that supports data resiliency at levels expected by risk-adverse storage groups, all with contemporary Linux-friendly hardware platforms selected by the enterprise. The F5 BIG-IP application delivery controller complements S3 object traffic involving Scality, through massive scale out of nodes coupled with innovative algorithms for agile spreading of the traffic. Health of RING nodes is perpetually monitored so as to seamlessly bypass any troubled system. When moving to multi-site RING deployments, within a country or even across continents, BIG-IP DNS is harnessed to steer traffic to the optimal site, potentially including geo-ip rules, proximity between user and data center, and established baseline latencies offered by each site to the S3 application’s home location.
