F5 Distributed Cloud and Transfer Encoding: Chunking

My team recently came across an unusual request from an F5 Distributed Cloud customer: How do we support HTTP/API clients that can only support transfer encoding chunked requests. What even is chunking? What is Transfer Encoding?

The key word is "encoding" and HTTP uses a header to communicate what scheme encodes the data in a message body. These can be used for functional purposes as well as communication optimization. In the case of Transfer Encoding it is most commonly leveraged for chunking, which is taking a large bit of data and breaking it up into smaller pieces that are sent between two nodes along a path, transparently to the application sending/receiving messages. These nodes may not necessarily be the source and destination of an HTTP conversation, so proxies in between could transparently reassemble the chunks for differing parts of the path. It does not use a content-length header:

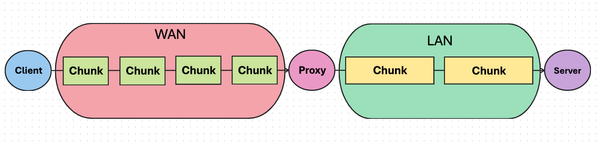

ex. Transport conditions on the LAN may support larger chunks than the WAN, so each segment between nodes in a data path could be configured for different chunking in such a scenario

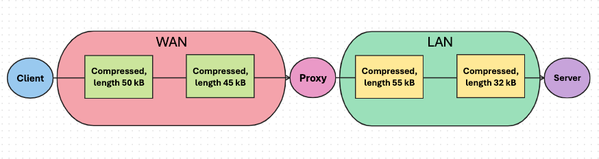

Contrasting with Content Encoding, which is more commonly used for compression of message bodies (although this can be done with transfer encoding too) and requires the length to be defined. Proxies along the path are expected to not change these values, but this is not always the case.

In our customer scenario, the request was exactly for the proxy (in this case Distributed Cloud) to support chunked requests from the client to an HTTP 2 server (HTTP2 does away with chunking completely). With Distributed Cloud, we fulfill this with three simple config elements:

1. The HTTP Load Balancer Object is configured to be an HTTP 1.1 virtual server:

2. The Origin is configured to use HTTP 2 (which defines Distributed Cloud's behavior as an HTTP client):

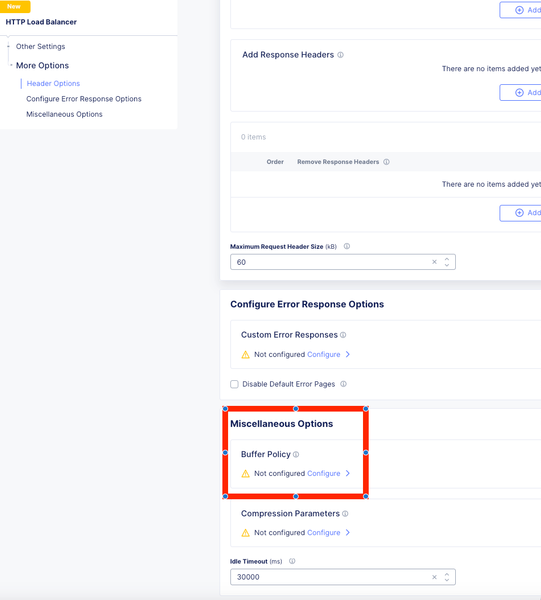

And after applying the config, we go back to the HTTP Load Balancer dialog, to the Other Settings section and configure a Buffer Policy under Miscellaneous Options:

A value configured in that dialog (it is the only property aside from an enable checkbox) will limit the request size to the specified value in bytes, but it has the added benefit of allowing the Distributed Cloud proxy to buffer the chunked requests and then convert them into content-encoding friendly values with length specified, and then send to the server via an HTTP 2 connection.

To test this connection, a simple cURL command with the header "Transfer-Encoding: chunked" and the -v flag can validate your config.
ex.

curl -v --location 'https:/[URL/PATH]:PORT --header 'Transfer-Encoding: chunked' --data ‘’


In the ensuing response, the -v flag (verbose) will include the following in the response:

* using HTTP/1.x
> POST [PATH] HTTP/1.1
> Host: [URL]
> User-Agent: curl/8.7.1
…
> Transfer-Encoding: chunked
…

Note the Transfer-Encoding chunked line, which shows that chunking was used on the client-side connection. You can validate the server-side connection in the request logs in the Distributed Cloud dashboard by looking at the request headers specified in the event JSON:

  "rsp_headers": "{\":status\":\"200\",\"connection\":\"close\",\"content-length\":\"26930\", [TRUNCATED]

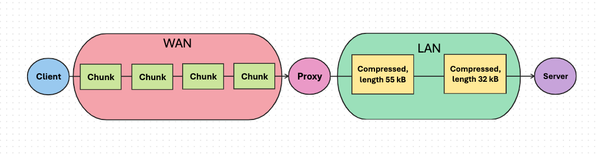

This is a transfer-encoded chunked client-side request being converted to a content-encoded request on the server side:

Special shoutout to fellow F5er Gowry Bhaagavathula for collaborating with me on getting this figured out!
