BIG-IP Logging and Reporting Toolkit – part four

So far we’ve covered the initial problem, the players involved and one in-depth analysis of one of the options (splunk). Next let’s dig into Q1labs’ Qradar offering. The first thing you’ll need to do, just like last time, is make sure your BIG-IP to pass syslog traffic off the box. Here’s a simple example of how you can get that done in your config file. These are the same as last time, so nothing shockingly new here, though this bit is important.

Bigip v9

syslog {
	remote server 10.10.200.31
	}

Bigip v10

syslog {
 remote server {
	 qradar {
		 host 10.11.100.31
	 	}
 }
}

This will send all syslog messages from the BIG-IP to the QRadar system; both BIG-IP system messages and any messages from iRules. If you’re interested in having iRules log to the QRadar system directly you can use the HSL statements or the log statements with a destination host defined. Ex) RULE_INIT has set ::QRadarHost “10.10.200.31” and then in the iRules event you’re interested in you assemble $log_message and then sent it to the log with log $::QRadarHost $log_message . A good practice would be to also record it locally on something like local0 incase the message doesn’t make it to the QRadar system. In my testing I used a single QRadar system running the log collector and event processor. If you’re using a more sophisticated deployment you’ll need to use the Deployment Manager to ensure that the QRadar log collectors are forwarding messages onto the Event Processor you’re going to work with. My QRadar system was already setup to receive syslog messages on port 514, so there wasn’t anything more to do to get messages flowing. The key to working with QRadar is defining regular expressions to extract the message data you’re interested in – once you have that done most things are done using the same process. In this section I’ll walk through all the tasks needed to extract custom data through build a report for the w3c case. Then I’ll show a summary using NEDS and dashboard data.

Here are my regexes for QRadar for w3c, NEDS and the dashboard data script:

message source	attribute name	regex	capture group	sample message
dashboard script	Compression Deflate uses	deflate\.out\.uses='(\d+)'	1	in dc post
dashboard script	Compression LZO uses	lzo\.out\.uses='(\d+)'	1	in dc post
dashboard script	Compression Null uses	null\.out\.uses='(\d+)'	1	in dc post
dashboard script	Dashboard-messageType	message_type='(.+?)'	1	in dc post
dashboard script	Dashboard-reportingSystem	HostName='(.+?)'	1	in dc post
dashboard script	Dashboard-routingEnabled	routing='(.+?)'	1	in dc post
NEDS iRule	NEDSv1-Flow-clientside-http	"(neds\.f5\.conn\.start\.v1)",(\"[\w\.resp\.v1]+\"\,)+\"(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}\-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\"	1	in NEDS Spec
NEDS iRule	NEDSv1-clientIPaddress	"(neds\.f5\.conn\.start\.v1","[\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})	2	in NEDS Spec
NEDS iRule	NEDSv1-clientPort	"(neds\.f5\.conn\.start\.v1","[\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:)(\d{1,5})	3	in NEDS Spec
NEDS iRule	NEDSv1-clientCloseBytesIn	(neds\.f5\.conn\.end\.v1)","([\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}@\d+\.\d+)",(\d+.\d+),(\d+),(\d+),(\d+)	7	in NEDS Spec
NEDS iRule	NEDSv1-clientCloseBytesOut	(neds\.f5\.conn\.end\.v1)","([\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}@\d+\.\d+)",(\d+.\d+),(\d+),(\d+),(\d+),(\d+)	8	in NEDS Spec
NEDS iRule	NEDSv1-clientClosePktsIn	(neds\.f5\.conn\.end\.v1)","([\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}@\d+\.\d+)",(\d+.\d+),(\d+),	5	in NEDS Spec
NEDS iRule	NEDSv1-clientClosePktsOut	(neds\.f5\.conn\.end\.v1)","([\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}@\d+\.\d+)",(\d+.\d+),(\d+),(\d+)	6	in NEDS Spec
NEDS iRule	NEDSv1-clientCloseTimestamp	(neds\.f5\.conn\.end\.v1)","([\w\.]+)","(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5}@\d+\.\d+)",(\d+.\d+),	4	in NEDS Spec
NEDS iRule	NEDSv1-clientConnectionIngressVlan	(neds[\w\.]+start\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+)\,"(\w+)"	4	in NEDS Spec
NEDS iRule	NEDSv1-clientConnectionPolicyName	(neds[\w\.]+start\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+)\,"(\w+)"\,(\d+),(\d+),(\d+),\"([\w\.]+)\"	8	in NEDS Spec
NEDS iRule	NEDSv1-clientConnectionStartTimestamp	(neds[\w\.]+start\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+)	3	in NEDS Spec
NEDS iRule	NEDSv1-clientIPProtocol	(neds[\w\.]+start\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+)\,"(\w+)",(\d+),	5	in NEDS Spec
NEDS iRule	NEDSv1-httpRequestHost	(neds\.f5\.http\.req\.v1)",("[\w\.\"\:\-\@]+)","([\w\.\:\-\@]+)",(\d+\.\d+,\d+),"([\w\.\_\-]+)	5	in NEDS Spec
NEDS iRule	NEDSv1-httpRequestServerPort	(neds\.f5\.http\.resp\.v1)","([\w\.]+)","([\d\.:]+)-([\d\.]+):(\d{1,5})	5	in NEDS Spec
NEDS iRule	NEDSv1-httpRequestTCPReplyNumber	(neds\.f5\.http\.req\.v1)",("[\w\.\"\:\-\@]+)","([\w\.\:\-\@]+)",(\d+\.\d+),(\d+)	5	in NEDS Spec
NEDS iRule	NEDSv1-httpRequestUserAgent	(neds\.f5\.http\.req\.v1)",("[\w\.\"\,\:\-\@]+)","([\w/\._\%\@]+)",("[\w\@\.]*?"),"([\w/\.\s(;\-\:\)]+)	5	in NEDS Spec
NEDS iRule	NEDSv1-httpResponseContentLength	(neds\.f5\.http\.resp\.v1)","([\w\."\,\:\-\@]+)","([\w\/\;\s\=\-]+)","(\d+)	4	in NEDS Spec
NEDS iRule	NEDSv1-httpResponseContentType	(neds\.f5\.http\.resp\.v1)","([\w\."\,\:\-\@]+)","([\w\/\;\s\=\-]+)	3	in NEDS Spec
NEDS iRule	NEDSv1-httpResponseLBTarget	(neds\.f5\.http\.resp\.v1)","([\w\.\,:\-@/;\s\="]+),"(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:\d{1,5})"	3	in NEDS Spec
NEDS iRule	NEDSv1-reportingSystem	(\"neds.+[\w]\.v1\"),\"([\w.]+)\"	2	in NEDS Spec
NEDS iRule	NEDSv1-responseHTTPContentLength	(neds[\w\.]+resp\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+),(\d+),"(\d{3})","([\w\/]+)","(\d+)"	7	in NEDS Spec
NEDS iRule	NEDSv1-responseHTTPServerResponseCode	(neds[\w\.]+resp\.v1\",\"[\w\.]+",")(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}-\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}\:\d{1,5}@\d+\.\d+)\",(\d+\.\d+),(\d+),"(\d{3})"	5	in NEDS Spec
w3c iRule	W3C Client IP address	client_ip=(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})	1	in dc post
w3c iRule	W3C Client Port	client_port=(\d{1,5})	1	in dc post
w3c iRule	W3C Client username	username=([\w]+)	1	in dc post
w3c iRule	W3C Content Length	content_length=(\d+)	1	in dc post
w3c iRule	W3C HTTP Request	request="(.*)"\ss	1	in dc post
w3c iRule	W3C HTTP version	HTTP/(\d\.\d)"	1	in dc post
w3c iRule	W3C Host header	host=(.+?)	1	in dc post
w3c iRule	W3C Member server	lb_server=(\d{1,3}.\d{1,3}.\d{1,3}.\d{1,3}:\d{1,5})	1	in dc post
w3c iRule	W3C Server Response Code	server_status=(\d{3})	1	in dc post
w3c iRule	W3C User Agent	user_agent="(.*)"	1	in dc post
w3c iRule	W3C VIrtual Server name	virtual=(.*?)\s	1	in dc post
w3c iRule	w3c Server Port	lb_server=\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}:(\d{1,5})	1	in dc post
w3c iRule	w3c referer	referer=([\w\./\:\-]+)	1	in dc post
w3c iRule	w3c resp_time	resp_time=(\d+)	1	in dc post

W3C offload case

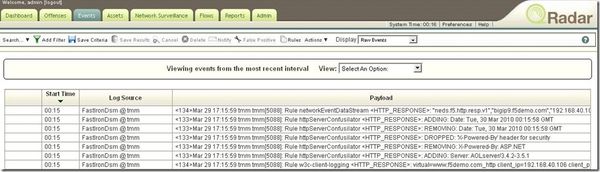

Now that BIG-IP is setup to send messages to the QRadar system double check to see that you’ve installed the w3c-client-logging iRule on a vip and we’ll see what it looks like when everything is put together. Login to your QRadar management console and navigate to the Events tab. You should see events streaming into QRadar if everything is configured correctly. If you can’t find what you’re looking for in the normalized events view change it to the raw view – I also opted to have my console autorefresh every minute.

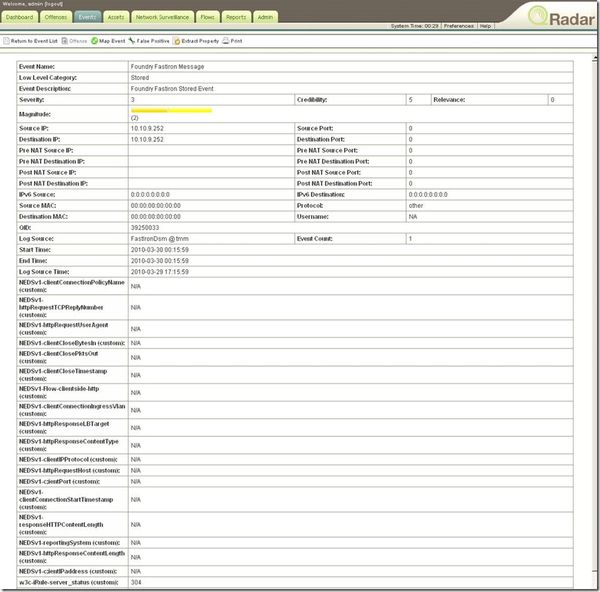

There last message is the one I’m looking for. If you find a similar message and double click on it we can start to extract data from the message and build up some searches and reports. I’ve not fully customized my QRadar deployment, so I’m ignoring the fact that the Log Source for the iRule messages has been identified by the system’s FastIronDsm. After your screen is showing the Event Viewer click on the Extract Property button in the button bar. This will launch the Custom Event Property Definition tool, which will allow you to categorize event elements and write the regex for extracting the information you’re interested in. Right now, I’m interested in the HTTP server status codes.

For your custom field extractions, here’s a sample message from the W3C iRule:

Feb 9 14:23:21 tmm tmm[5088]: Rule w3c-client-logging : virtual=www.f5demo.com_http client_ip=65.197.145.92 client_port=37227 lb_server=10.10.200.1:80 host=www.f5demo.com username= request="GET /compression HTTP/1.0" server_status=301 content_length=322 resp_time=1 user_agent="check_http/1.96 (nagios-plugins 1.4.5)]" referer=

The regular expressions for key value pairings are pretty easy to create. In this window you can see that the regex has located the item in the log message I’m interested in – it’s highlighted in yellow. Save the regex extraction and you’ll be returned to the Event Viewer and look for the new property listed on the page.

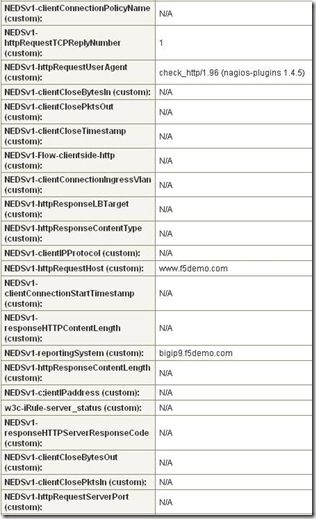

Now the attribute shows up on the Event list page, down at the bottom. I’ve already entered several regular expressions for the NEDS data, and since I’ve assigned them all to the same Device Support Module (DSM) they’re showing up on this page; and this isn’t a NEDS message so they’re not applicable to this stream. With the extraction we just assigned to this DSM and log source we can return to the Event List and build a search. After the search is built it can be used to filter the events list, and we can build a report from it. In the Event Viewer Click on the Search button and select the New Event Search option.

I’ve also added extractions to my system for response time, and member server. This helps to further illustrate what’s happening in my environment – I can see what hosts are sending which response codes and get a rough idea on what the client and server performance is. Pick the fields you’re interested in including in the search and click on the ‘Filter’ button. QRadar composes the search and saves it to the list of defined searches. I could also add a regex to extract the BIG-IP name from the message and group by that attribute to get an idea of what’s happening across the various BIG-IPs in my environment. Now the search runs – and I find that in the last 6 hours there have been 147 HTTP 304 response codes recorded by the system. Here’s my search result:

/p>

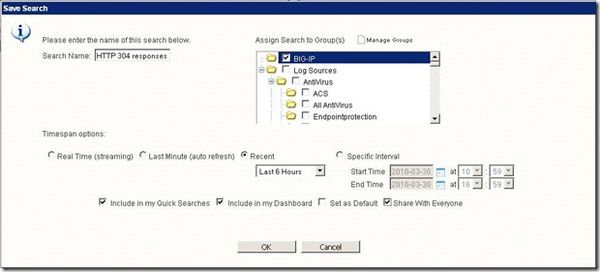

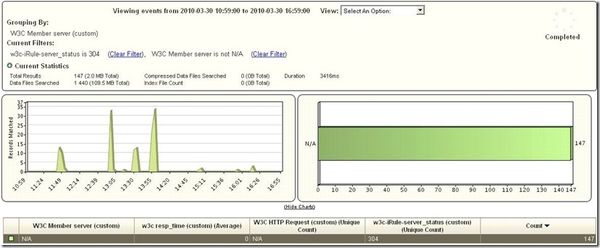

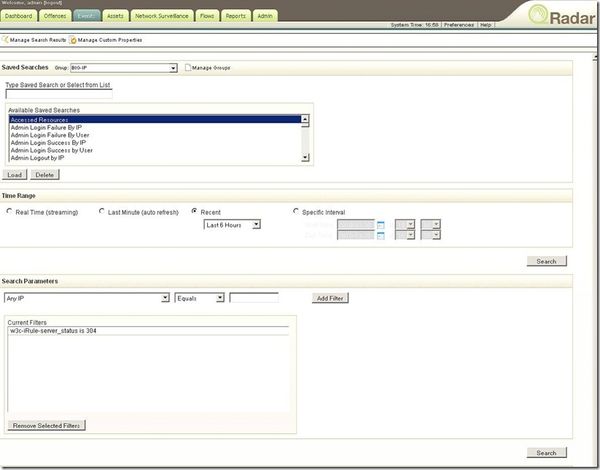

I see that in the last 6 hours there have been 147 HTTP 304’s recorded by the system. To turn this search into a report or make it available to the dashboard, click on the Save Criteria button in the toolbar. I’ve found that it helps to group searches together, so I’ve created a group called BIG-IP for all my BIG-IP related searches. For this search to appear on your dashboard you’ll also need to click the “Add item…” button on the dashboard and locate your search.

To generate the report, click the Reports tab and find the Actions dropdown in the tool bar – select Create. I’m building a manual report for this step. My report uses a single frame and Events/Logs as the information source.

And here’s my report:

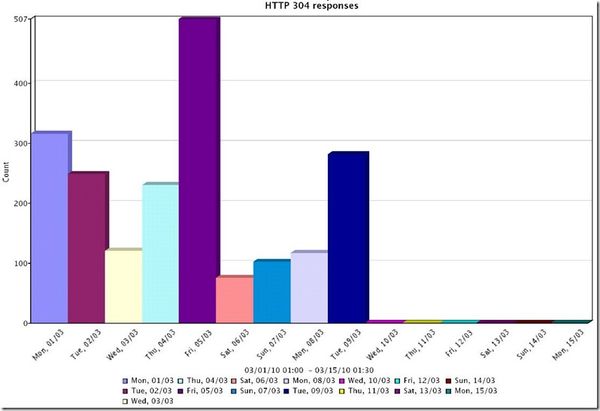

Accounting for the date format, there were a lot of 304’s returned to clients on March 5^th and I probably have data missing from March 10^th onwards because my BIG-IP was sending log messages somewhere else.

NEDS case

While the w3c offload case used an iRule with key/value tuples NEDS uses a comma delimited string to convey information in the message. I spent some time with the specification and wrote several regular expressions to extract the data. The process is identical to what’s outlined in the w3c case, so I’ll save the screen real estate and skip the screen shots of the process. You can find my regular expressions here – I’m fairly new to regular expressions, so I’m sure that there are improvements that can be made to make mine more efficient/maintainable. After defining the custom attributes here’s what I get when viewing a NEDS message in the Event Viewer. To syslog, A NEDS message looks like

Mar 30 10:44:59 tmm tmm[5088]: Rule networkEventDataStream <HTTP_RESPONSE>: "neds.f5.http.resp.v1","bigip9.f5demo.com","65.197.145.92:42709-65.197.145.93:80@1269971099.951082",1269971099.952527,1,"301","text/html; charset=iso-8859-1","322","10.10.200.1:80","65.197.145.92:42709-10.10.200.1:80"

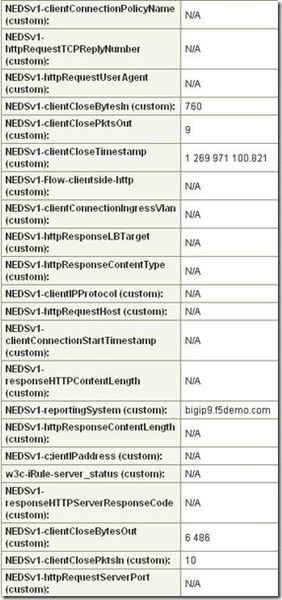

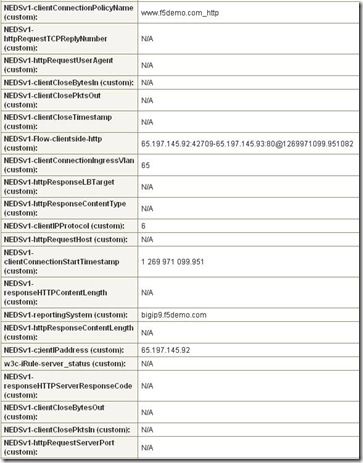

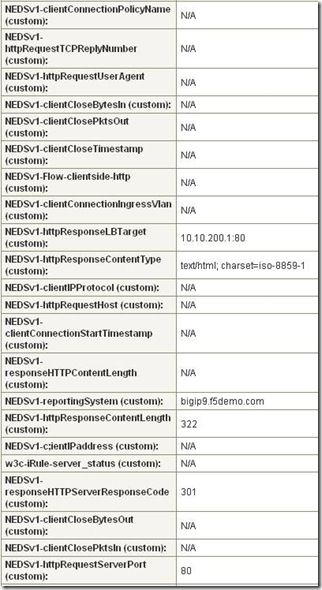

Here’s the detailed view using the regular expressions for http response, client close, http request and client accepted messages.

HTTP Response	Client close	HTTP Request	Client Accepted
			<

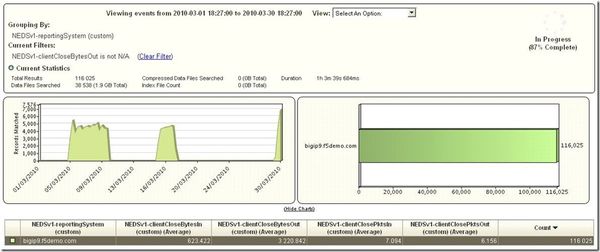

Here’s a select result of a search I composed for the connection close data. The clientCloseBytesOut is not N/A filters out all the non-client-close NEDS messages.

The process to generate a report for NEDS data mirrors the process for the W3C case:

1. Save the search

2. Create a report template

3. Add the search to the report template

4. Save the template

5. Run the report

Dashboard data case

To get the dashboard data streaming into QRadar, I had to modify my base script to send the messages via syslog, instead of just printing the string. In addition to the QRadar and BIG-IP systems, you’ll need another host with the requisite Perl modules installed to relay the data from the BIG-IP to the QRadar.

Here’s the script:

Dashboard Syslog Pearl Script

To use it you’ll need to:

1. On line 66 configure the username the script should use to access the dashboard interface

2. On line 67 configure the password for the username from step 1

3. On line 48 configure the IP address or name that for the QRadar event collector

4. Schedule the script to run periodically on your relay host – cron would do nicely.

Once you’ve got the data into QRadar you’ll need to:

1. Find the endpoint-isession-stat data log message and write your regular expressions for the data you’re interested in

2. Find the remote endpoint log message you’re interested in and write your regular expressions for the data you’re interested in

3. Build and save your searches

4. Build and run your report template

Here’s a sample endpoint-isession-stat data log message in syslog:

Mar 15 17:05:46 127.0.0.1 10.11.100.73: device_timestamp='Wed Mar 15 00:05:46 2010 GMT' HostName='bigip3900c.demo.f5demo.com' version.version='10.1.0' message_type='endpoint_isession_stat' name='_tunnel_ctrl_10.20.50.103' peer_ref='00:00:00:00:00:00:00:00:00:00:ff:ff:0a:14:32:67' null.in.uses='292670' null.in.errors='0' null.in.bytes_opt='31371493' null.in.bytes_raw='29030133' null.out.uses='292670' null.out.errors='0' null.out.bytes_opt='31371493' null.out.bytes_raw='29030133' lzo.in.uses='1250' lzo.in.errors='0' lzo.in.bytes_opt='139167' lzo.in.bytes_raw='124178' lzo.out.uses='1250' lzo.out.errors='0' lzo.out.bytes_opt='139166' lzo.out.bytes_raw='124177' deflate.in.uses='0' deflate.in.errors='0' deflate.in.bytes_opt='0' deflate.in.bytes_raw='0' deflate.out.uses='0' deflate.out.errors='0' deflate.out.bytes_opt='0' deflate.out.bytes_raw='0' dedup.in.uses='0' dedup.in.errors='0' dedup.in.bytes_opt='0' dedup.in.bytes_raw='0' dedup.out.uses='0' dedup.out.errors='0' dedup.out.bytes_opt='0' dedup.out.bytes_raw='0' dedup_in.hit_bytes='0' dedup_in.hits='0' dedup_in.hit_hist.bucket_1k='0' dedup_in.hit_hist.bucket_2k='0' dedup_in.hit_hist.bucket_4k='0' dedup_in.hit_hist.bucket_8k='0' dedup_in.hit_hist.bucket_16k='0' dedup_in.hit_hist.bucket_32k='0' dedup_in.hit_hist.bucket_64k='0' dedup_in.hit_hist.bucket_128k='0' dedup_in.hit_hist.bucket_256k='0' dedup_in.hit_hist.bucket_512k='0' dedup_in.hit_hist.bucket_1m='0' dedup_in.hit_hist.bucket_large='0' dedup_in.miss_bytes='0' dedup_in.misses='0' dedup_in.miss_hist.bucket_1k='0' dedup_in.miss_hist.bucket_2k='0' dedup_in.miss_hist.bucket_4k='0' dedup_in.miss_hist.bucket_8k='0' dedup_in.miss_hist.bucket_16k='0' dedup_in.miss_hist.bucket_32k='0' dedup_in.miss_hist.bucket_64k='0' dedup_in.miss_hist.bucket_128k='0' dedup_in.miss_hist.bucket_256k='0' dedup_in.miss_hist.bucket_512k='0' dedup_in.miss_hist.bucket_1m='0' dedup_in.miss_hist.bucket_large='0' dedup_out.hit_bytes='0' dedup_out.hits='0' dedup_out.hit_hist.bucket_1k='0' dedup_out.hit_hist.bucket_2k='0' dedup_out.hit_hist.bucket_4k='0' dedup_out.hit_hist.bucket_8k='0' dedup_out.hit_hist.bucket_16k='0' dedup_out.hit_hist.bucket_32k='0' dedup_out.hit_hist.bucket_64k='0' dedup_out.hit_hist.bucket_128k='0' dedup_out.hit_hist.bucket_256k='0' dedup_out.hit_hist.bucket_512k='0' dedup_out.hit_hist.bucket_1m='0' dedup_out.hit_hist.bucket_large='0' dedup_out.miss_bytes='0' dedup_out.misses='0' dedup_out.miss_hist.bucket_1k='0' dedup_out.miss_hist.bucket_2k='0' dedup_out.miss_hist.bucket_4k='0' dedup_out.miss_hist.bucket_8k='0' dedup_out.miss_hist.bucket_16k='0' dedup_out.miss_hist.bucket_32k='0' dedup_out.miss_hist.bucket_64k='0' dedup_out.miss_hist.bucket_128k='0' dedup_out.miss_hist.bucket_256k='0' dedup_out.miss_hist.bucket_512k='0' dedup_out.miss_hist.bucket_1m='0' dedup_out.miss_hist.bucket_large='0' outgoing.conns_idle_cur='0' outgoing.conns_idle_max='0' outgoing.conns_idle_tot='0' outgoing.conns_active_cur='2' outgoing.conns_active_max='3' outgoing.conns_active_tot='3' outgoing.conns_errors='0' outgoing.conns_passthru_tot='0' incoming.conns_idle_cur='0' incoming.conns_idle_max='0' incoming.conns_idle_tot='0' incoming.conns_active_cur='2' incoming.conns_active_max='6' incoming.conns_active_tot='127' incoming.conns_errors='0' incoming.conns_passthru_tot='0' dedup_status_array='cccc '

Here’s a sample remote endpoint log message in syslog:

Mar 15 17:05:50 127.0.0.1 10.11.100.73: device_timestamp='Wed Mar 15 00:05:46 2010 GMT' HostName='bigip3900c.demo.f5demo.com' version.version='10.1.0' message_type='woc_peer' peer_ref='10.20.50.103' name='bigip3900b.demo.f5demo.com' UUID='cd18:4840:f9e0:' mgmt_addr='10.11.100.72' version='10.1.0' dedup_cache='203588' dedup_action='DEDUP_ACTION_NONE' dedup_cache_refresh_flag='false' dedup_cache_refresh_count='0' state='WOC_PEER_STATE_READY' is_enabled='true' origin='MCP_ORIGIN_CONFIGURED' profile_serverssl='' tunnel_encrypt_data='true' tunnel_port='443' behind_nat='false' source_address='WOC_PEER_NAT_SOURCE_ADDRESS_NONE' config_status='none' routing='true' addr_list=''

And lastly if you’re an ASM or APM user there’s an F5 Networks DSM that will recognize your ASM logs; all you need to do is define the hostname or IP address of your QRadar system on your ASM logging profile.
