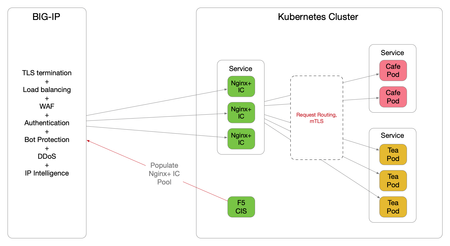

Better together - F5 Container Ingress Services and NGINX Plus Ingress Controller Integration

Hello

I hope you are doing well.

Just wanted to check if this solution still works. I am trying to recreate the environment but its not working, its giving me below error

2020/06/08 20:47:18 [ERROR] [AS3] Response from BIG-IP: code: ERR_REQUEST_FAILED --- tenant:Nginx_IC --- message: declaration failed

2020/06/08 20:47:18 [ERROR] [AS3] Response from BIG-IP: code: 200 --- tenant:k8s-AS3_AS3 --- message: no change

I have tried this setup with CIS 2.0.0 and f5appsvc 3.20.0 and also CIS 1.14.0 and f5appsvc 3.17.1, i am using same working configuration from march. but getting below error

nginx SVC config

root@master-1:~# kubectl describe svc nginx-ingress2 -n nginx-ingress

Name:       nginx-ingress2

Namespace:     nginx-ingress

Labels:      cis.f5.com/as3-app=Nginx_vs

          cis.f5.com/as3-pool=Nginx_IC_pool

          cis.f5.com/as3-tenant=Nginx_IC

Annotations:    <none>

Selector:     app=nginx-ingress

Type:       ClusterIP

IP:        10.111.160.103

Port:       https 443/TCP

TargetPort:    443/TCP

Endpoints:     10.1.2.191:443

Session Affinity: None

Events:      <none>

Configmap for CIS and F5 integration

root@master-1:~# kubectl describe configmap nginx-as3 -n kube-system

Name:     nginx-as3

Namespace:  kube-system

Labels:    as3=true

       f5type=virtual-server

Annotations: <none>

Data

====

template:

----

{

  "class": "AS3",

  "action": "deploy",

  "persist": true,

  "declaration": {

   "class": "ADC",

   "schemaVersion": "3.13.0",

   "id": "1847a369-5a25-4d1b-8cad-5740988d4423",

   "label": "APP Template",

   "remark": "HTTP application",

   "Nginx_IC": {

       "class": "Tenant",

       "Nginx_IC_vs": {

         "class": "Application",

         "template": "generic",

         "app_80_vs": {

          "class": "Service_HTTP",

          "remark": "app",

          "virtualAddresses": [

           "10.165.36.141"

           ],

          "virtualPort": 80,

          "profileTCP": {

          "bigip": "/Common/f5-tcp-lan"

          },

       "pool": "Nginx_IC_pool"

          },

          "Nginx_IC_pool": {

          "class": "Pool",

          "members": [

          {

           "servicePort": 80,

           "shareNodes": true,

           "serverAddresses": []

          }

         ]

        }

       }

      }

    }

 }

Events: <none>

CIS:

root@master-1:~# kubectl describe pod k8s-bigip-ctlr-deployment-6759c46587-tdk79 -n kube-system

Name:     k8s-bigip-ctlr-deployment-6759c46587-tdk79

Namespace:  kube-system

Priority:   0

Node:     worker-2/192.168.5.22

Start Time:  Mon, 08 Jun 2020 20:40:16 +0000

Labels:    app=k8s-bigip-ctlr

       pod-template-hash=6759c46587

Annotations: <none>

Status:    Running

IP:      10.1.2.192

IPs:

 IP:      10.1.2.192

Controlled By: ReplicaSet/k8s-bigip-ctlr-deployment-6759c46587

Containers:

 k8s-bigip-ctlr:

  Container ID: docker://4f4bfd89700af786bfa3920e5287160003a4500370c4e133c159cc33c62ed984

  Image:     f5networks/k8s-bigip-ctlr:1.14.0

  Image ID:   docker-pullable://f5networks/k8s-bigip-ctlr@sha256:25bdfc947ed4cdd172a68e37c51dbaa8ca87fcbc4d894622b42a260755a2bf68

  Port:     <none>

  Host Port:   <none>

  Command:

   /app/bin/k8s-bigip-ctlr

  Args:

   --bigip-username=$(BIGIP_USERNAME)

   --bigip-password=$(BIGIP_PASSWORD)

   --bigip-url=https://192.168.5.210

   --bigip-partition=k8s-AS3

   --pool-member-type=cluster

   --agent=as3

   --manage-ingress=false

   --insecure=true

   --as3-validation=true

   --node-poll-interval=30

   --verify-interval=30

   --log-level=INFO

  State:     Running

   Started:   Mon, 08 Jun 2020 20:40:20 +0000

  Ready:     True

  Restart Count: 0

  Environment:

   BIGIP_USERNAME: <set to the key 'username' in secret 'bigip-login'> Optional: false

   BIGIP_PASSWORD: <set to the key 'password' in secret 'bigip-login'> Optional: false

  Mounts:

   /var/run/secrets/kubernetes.io/serviceaccount from bigip-ctlr-token-r6rvn (ro)

Conditions:

 Type       Status

 Initialized    True

 Ready       True

 ContainersReady  True

 PodScheduled   True

Volumes:

 bigip-ctlr-token-r6rvn:

  Type:    Secret (a volume populated by a Secret)

  SecretName: bigip-ctlr-token-r6rvn

  Optional:  false

QoS Class:    BestEffort

Node-Selectors: <none>

Tolerations:   node.kubernetes.io/not-ready:NoExecute for 300s

         node.kubernetes.io/unreachable:NoExecute for 300s

Events:

 Type  Reason   Age    From        Message

 ----  ------   ----    ----        -------

 Normal Scheduled <unknown> default-scheduler Successfully assigned kube-system/k8s-bigip-ctlr-deployment-6759c46587-tdk79 to worker-2

 Normal Pulling  17m    kubelet, worker-2 Pulling image "f5networks/k8s-bigip-ctlr:1.14.0"

 Normal Pulled   17m    kubelet, worker-2 Successfully pulled image "f5networks/k8s-bigip-ctlr:1.14.0"

 Normal Created  17m    kubelet, worker-2 Created container k8s-bigip-ctlr

 Normal Started  17m    kubelet, worker-2 Started container k8s-bigip-ctlr

Any help is greatly appreciated.

Thanks

Kunal
