XML data does not comply with schema & Malformed XML data

Hi Everyone



i have configure an XML profile within the BIG-IP ASM security policy to protect XML-based web traffic, but i got some alerts:

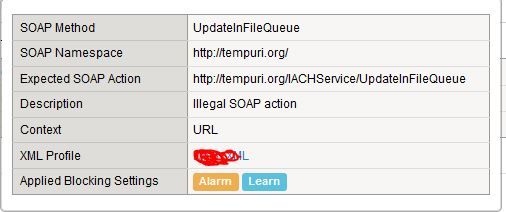

1- (XML data does not comply with schema or WSDL document)

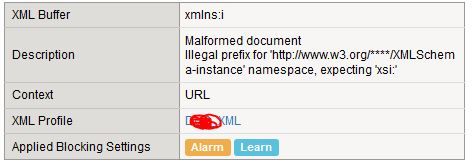

2- (Malformed XML data)

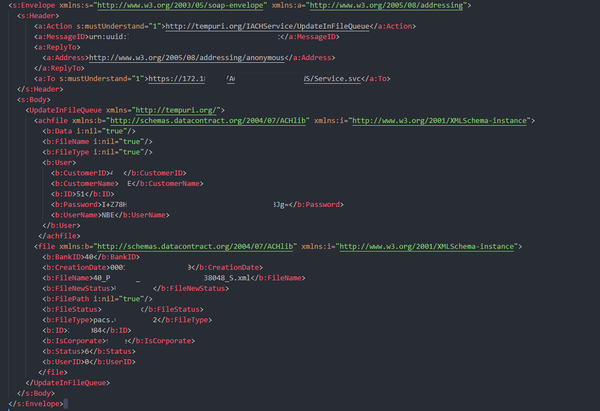

i took screenshot of the request and pasted it into code editor to view the request easily

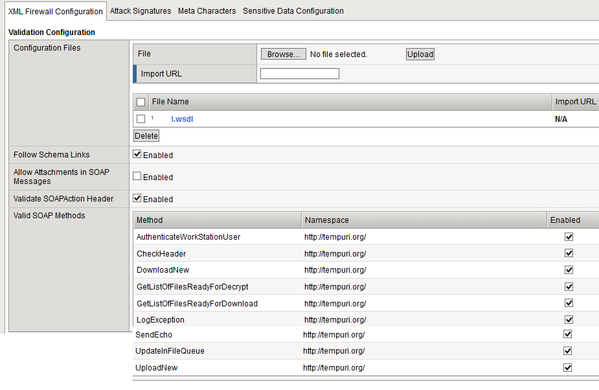

Hereunder the xml profile configs:



ASM Advanced WAF
Security
TMOS
  • Mohanad's avatar
    Mohanad
    Icon for Cirrostratus rankCirrostratus
    Apr 01, 2019

    the second issue (Malformed XML data) has been solved:

    F5 added the internal parameter "allowXSIRename" that enables you to allow using a namespace prefix different from "xsi" for ";. Set this parameter to 1 to allow different names for the xsi prefix. The default value is 0 (disallow).

    This WSDL document is not using the common prefix, by default the BIG-IP won't accept documents using anything other than the common prefix.

    If you can't change the application to use the common prefix we can change this behavior on the BIG-IP using this command:

    /usr/share/ts/bin/add_del_internal add allowXSIRename 1 bigstart restart asm

bigstart restart asm

tmsh save sys config

    This will restart BIG-IP and cause a failover so please perform this in a maintenance window
