Write an irule or a policy to allow specific URIs

Hi Guys,



I'm quite new to F5. We have a requirement for allow only 4 specific URIs and block any other URI. What would be the best way to do it. Would it be using an irule or using a LTM policy? Are you able to provide an example irule or LTM policy for this please?

application delivery
iRules
LTM

6 Replies

  • Faruk_AYDIN's avatar
    Faruk_AYDIN
    Icon for Altostratus rankAltostratus
    Sep 17, 2019

    use this iRule:

    when HTTP_REQUEST {
	switch -glob [string tolower [HTTP::uri]]
		"/uri1*" -
		"/uri2*" -
		"/uri3*" -
		"/uri4"
		{
			#do nothing
		}
		default
		{
			#drop others
			drop
		}
}
    • wick54's avatar
      wick54
      Icon for Nimbostratus rankNimbostratus
      Sep 17, 2019

      Thanks, I will try this, if URI contains Uppercase characters, do i need to change to it lower case in iRule? would that be matched?

  • youssef1's avatar
    youssef1
    Icon for Cumulonimbus rankCumulonimbus
    Sep 17, 2019

    Hi,



    I think usign an irule for your need will give you a lot more flexibility you can answer a blocking page to the user, a drop, a reset ...

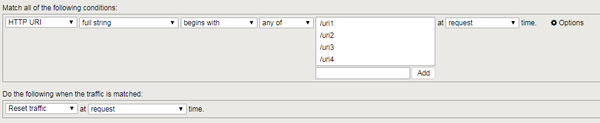

    Anyway find an example with ltm policy (with reset)... if you want more flexibility (blocage page in ifile for example use an irule):



    regards





    • wick54's avatar
      wick54
      Icon for Nimbostratus rankNimbostratus
      Sep 17, 2019

      If URI contains Uppercase characters, do i need to change to it lower case in LTM policy? would that be matched?

  • youssef1's avatar
    youssef1
    Icon for Cumulonimbus rankCumulonimbus
    Sep 17, 2019

    It would be match. By default it's not case sensitive.

    If you want to enable "case sensitive" you can do IT in options menu (in ltm policy in right)...
