Forum Discussion

zack_254145's avatar
zack_254145
Icon for Nimbostratus rankNimbostratus
Jun 08, 2016
Solved

VS (forwarding layer 2) doesn't respond to syn from client

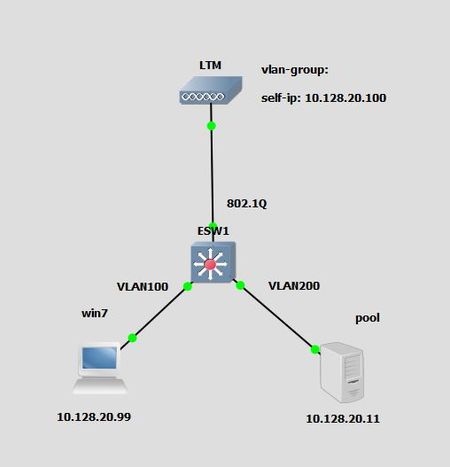

Hello Experts,   I am preparing for a project recently in which I need to deploy a forwarding layer 2 VS. The topology is quite sample as below:     client (win7): 10.128.20.99   po...
application delivery
LTM
  • gbam_190768's avatar
    gbam_190768
    Jun 08, 2016

    Disable port and address translation. Let me know if that works.



gbam_190768's avatar
gbam_190768
Icon for Cirrus rankCirrus
Jun 08, 2016

Disable port and address translation. Let me know if that works.



zack's avatar
zack
Icon for Altostratus rankAltostratus
Jun 08, 2016
I just double checked... When choosing VS type as "forwarding layer 2", these two options are masked... which mean nowhere can be set in GUI. ( VE 12.0.0 ) When tuning VS type to standard, these two options are shown in the GUI... Address Translation Port Translation I am not sure whether this is by design or a defect... but it is confusing people like me ( as a newbie) :)
